Allen-Bradley 1769-OV16 Replacement for CompactLogix

Product Overview

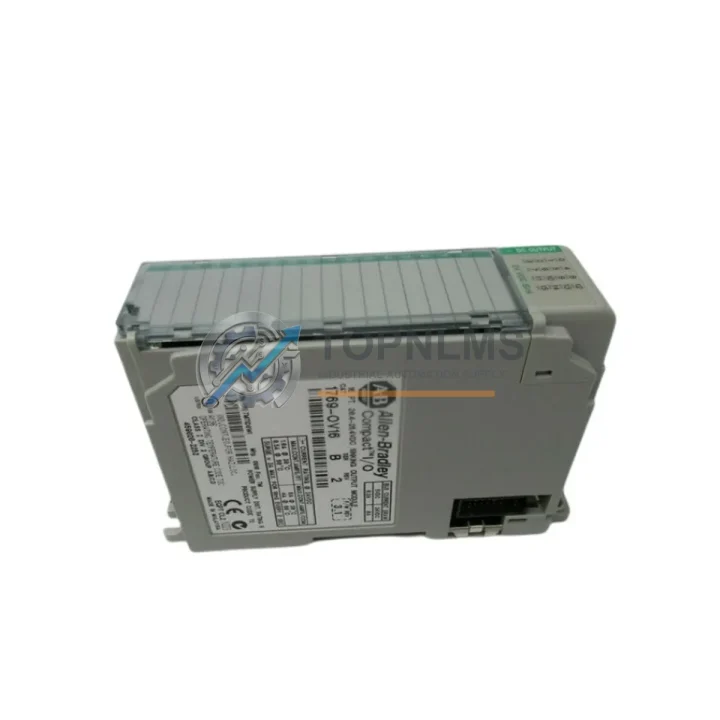

Allen-Bradley 1769-OV16 Replacement for CompactLogix: Seamless Migration & Upgrade Solution

When your existing CompactLogix control system relies on the 1769-OV16 16-point DC output module and you face end-of-life notices, obsolescence, or unexpected field failures, a smooth migration path is critical to keeping production running. The Allen-Bradley 1769-OV16 is a 24 VDC sourcing output module designed for the 1769 CompactLogix family, delivering 0.5 A per point across 16 discrete output channels. Whether you are replacing a failed unit, building a spare-parts buffer, or executing a planned system upgrade, TOPNLMS supplies tested, ready-to-ship 1769-OV16 modules with a 12-month warranty to minimize your exposure to unplanned downtime.

Many facilities running legacy CompactLogix L3x or L4x controllers still depend on the 1769 I/O bus architecture. The 1769-OV16 slots directly into any 1769 expansion rack alongside companion modules such as the 1769-IQ16 16-point DC input module and the 1769-IF4 analog input module, preserving your existing rack layout and wiring infrastructure. Because the module uses the standard 1769 removable terminal block (RTB), field wiring can be transferred to a replacement unit without re-termination, dramatically reducing swap-out time during a maintenance window.

For sites migrating from older SLC 500 or MicroLogix platforms to CompactLogix, the 1769-OV16 serves as the output-side anchor of the new I/O subsystem. Output addressing in Studio 5000 Logix Designer maps directly to the module’s slot position, so RSLogix 5000 programs converted via the migration tool require only minor tag remapping rather than full rewrites. Paired with a 1769-L30ER or 1769-L33ER CompactLogix controller and a 1769-ECR right-end cap, the 1769-OV16 integrates into a compact, DIN-rail-mounted panel that fits within the same control-cabinet footprint as many legacy installations.

Communication between the 1769-OV16 and the host controller travels over the 1769 local I/O bus, which is managed by the CompactLogix backplane. No separate network configuration is required for the output module itself; however, the broader system may include EtherNet/IP adapters such as the 1769-AENTR for distributed I/O expansion, or DeviceNet scanners for legacy field devices that have not yet been migrated. The 1769-OV16 is fully compatible with these communication architectures, allowing a phased migration where some field devices remain on legacy networks while new output circuits are commissioned on the CompactLogix platform.

Power supply compatibility is another key consideration during retrofit projects. The 1769-OV16 draws its logic power from the 1769 bus and requires a separate 24 VDC field power supply for the output circuits. Existing 24 VDC power rails in the control cabinet—often fed by a 1606-XLP or equivalent power supply—can typically be reused without modification, provided the total output current budget is recalculated to account for the new module’s load profile. This reuse of existing power infrastructure is one of the most significant cost-saving factors in a 1769-OV16 replacement project.

For facilities that operate mixed fleets of CompactLogix and ControlLogix hardware, the 1769-OV16 replacement strategy can be coordinated with broader spare-parts standardization efforts. Stocking a small buffer of 1769-OV16 modules alongside 1756-OB16D ControlLogix output modules and 1734-OB8 POINT I/O output modules allows maintenance teams to cover multiple platform generations from a single spare-parts inventory, reducing the total number of line items managed in the storeroom.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1769-OV16 migration rarely involves a single module in isolation. During the upgrade process, engineers typically review the entire 1769 I/O bank to identify other aging components that should be refreshed at the same time. The 1769-IQ16 DC input module is the natural companion to the 1769-OV16, handling the discrete input side of the same control loop; replacing both simultaneously eliminates the risk of a second unplanned outage shortly after the output module is restored. Similarly, if the system includes analog signals, the 1769-IF4 four-channel analog input module or the 1769-OF2 two-channel analog output module may be due for inspection or replacement as part of the same maintenance event.

On the controller side, facilities running older 1769-L32E or 1769-L35E processors should evaluate whether the firmware and memory capacity of the host controller are adequate for the expanded I/O configuration after migration. Upgrading to a 1769-L33ER or 1769-L36ERM controller with integrated EtherNet/IP and motion coordination capabilities can future-proof the system while the cabinet is already open for the output module replacement. The 1769-ECR right-end cap and 1769-ECL left-end cap must also be verified to be correctly installed after any module addition or removal to maintain bus termination integrity.

For distributed architectures, the 1769-AENTR EtherNet/IP adapter allows remote 1769 I/O banks to be connected to the main controller over standard Ethernet infrastructure, enabling the 1769-OV16 to be deployed in remote panel locations without running dedicated I/O bus cables across the plant floor. This is particularly valuable in retrofit projects where the control room and field panels are separated by significant distances. Programming cables such as the 1761-CBL-PM02 or a standard USB-to-serial adapter with the appropriate driver remain essential tools during commissioning and on-site debugging of the upgraded system.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing a 1769-OV16?
A: Yes. The 1769-OV16 uses a removable terminal block (RTB). You can unplug the RTB from the failed module and plug it directly into the replacement unit, preserving all field wiring connections without re-termination. Verify wire gauge and torque specifications match the RTB requirements before re-energizing.

Q: Do I need to modify my RSLogix 5000 / Studio 5000 program after replacing the module?
A: For a like-for-like 1769-OV16 replacement in the same slot, no program changes are required. The controller will automatically recognize the module by its electronic keying profile. If you change the slot position or replace with a different module type, update the I/O configuration in the project and download the revised program.

Q: Is the 1769-OV16 compatible with EtherNet/IP and DeviceNet systems?
A: The 1769-OV16 itself communicates over the 1769 local I/O bus and does not directly participate in EtherNet/IP or DeviceNet. However, it integrates seamlessly into systems that use the 1769-AENTR EtherNet/IP adapter for remote I/O or DeviceNet scanners for legacy field devices, as the adapter handles the network protocol translation transparently.

Q: What are the physical space requirements for installation?
A: The 1769-OV16 occupies one slot in a 1769 expansion rack and mounts on standard 35 mm DIN rail. Its compact form factor is identical to other 1769-series modules, so it fits within the same cabinet space as the unit it replaces. Ensure adequate clearance above and below the module for ventilation and cable routing.

Q: How do I handle the transition from an SLC 500 system to CompactLogix using the 1769-OV16?
A: Use Rockwell Automation’s migration tools to convert your RSLogix 500 program to Studio 5000 format. Map SLC output file O:x.x addresses to the corresponding 1769-OV16 tag names in the new project. Conduct a point-by-point I/O checkout with the field devices de-energized before going live to confirm correct output addressing.

Warranty Assurance

Every 1769-OV16 module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional testing to verify output channel integrity, bus communication, and terminal block seating. If a module exhibits any defect in materials or workmanship within the warranty period, TOPNLMS will arrange a replacement or repair at no additional cost to the buyer.

Our quality control process includes visual inspection for physical damage, verification of firmware revision compatibility, and output load testing across all 16 channels. Units that do not pass testing are quarantined and not shipped. This pre-shipment verification process gives procurement teams and maintenance engineers confidence that the replacement module will perform correctly from the moment it is installed.

For urgent replacement requirements, TOPNLMS maintains stock of 1769-OV16 modules ready for same-day or next-business-day dispatch from our Xiamen warehouse. International shipping options include DHL Express, FedEx International Priority, and sea freight for bulk orders. Lead times and shipping costs are confirmed at the time of order. Our after-sales team is available to assist with installation questions, compatibility verification, and warranty claims throughout the 12-month coverage period.

To place an order or request a quotation, contact us directly:

📧 [email protected] | 📞 +86 18359293191
