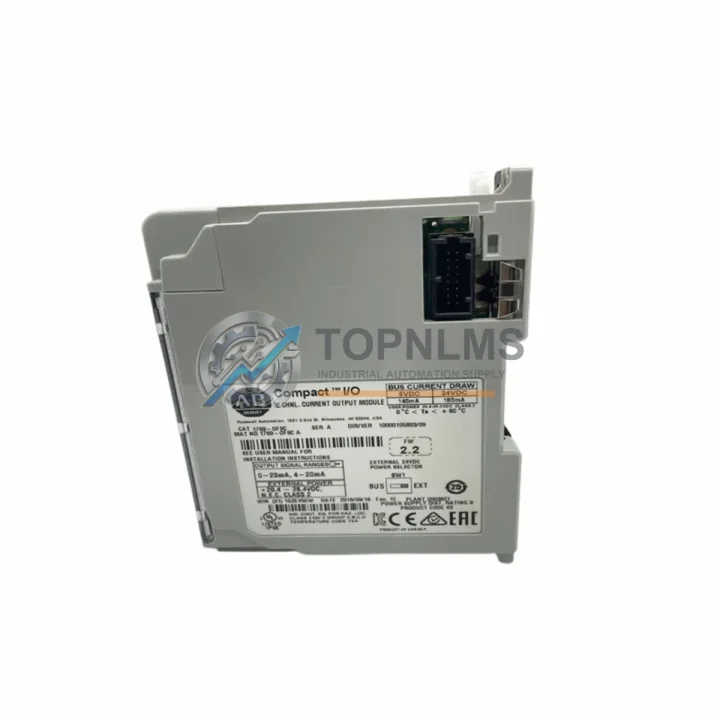

Allen-Bradley 1769-OF8C Ruggedized Analog Output Module

Product Overview

Allen-Bradley 1769-OF8C Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1769-OF8C is an 8-channel analog current output module engineered for the CompactLogix platform, delivering precision 4–20 mA signal control in the most demanding industrial environments. Designed to operate reliably under extreme temperature swings, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference, the 1769-OF8C is a cornerstone component for engineers who cannot afford signal drift or module failure on a live production line.

At TOPNLMS, every 1769-OF8C unit is sourced through verified supply channels, individually inspected, and dispatched with a 12-month replacement warranty — giving procurement teams and maintenance engineers the confidence to stock critical spares without compromise.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1769-OF8C does not operate in isolation — it is part of a tightly integrated control architecture where every component must perform to specification under stress. In a typical CompactLogix control cabinet deployed in a petrochemical plant or steel mill, the 1769-OF8C analog output module works in concert with the 1769-IQ16 digital input module and 1769-OB16 digital output module to form a complete I/O layer. The controller — commonly a 1769-L33ER CompactLogix processor — orchestrates all signal exchange across the backplane, relying on the 1769-OF8C to drive 4–20 mA commands to field instruments such as control valves, variable frequency drives (VFDs), and electro-pneumatic positioners.

Upstream power integrity is equally critical. The 1769-PA2 power supply provides stable 24 VDC bus power to the CompactLogix rack, ensuring that analog output accuracy is never compromised by voltage sag during motor starts or load transients. In facilities where electromagnetic interference from large drives or welding equipment is a concern, the 1492-CABLE series analog wiring systems and shielded terminal blocks from the 1492-IFM interface module family are routinely paired with the 1769-OF8C to maintain signal integrity across long cable runs.

For safety-instrumented systems operating under IEC 61511 requirements, the 1769-OF8C is often deployed alongside the GuardLogix 1756-L71S safety controller in a supervisory role, with the CompactLogix rack handling standard process control while the safety PLC monitors trip conditions. Communication between the control layer and SCADA or DCS systems is handled via the 1769-L27ERM’s integrated EtherNet/IP port, enabling seamless data exchange with Rockwell’s FactoryTalk View or third-party HMI platforms. In legacy installations, the 1769-SDN DeviceNet scanner module bridges older field devices to the CompactLogix backplane, preserving investment in existing instrumentation while the 1769-OF8C delivers modern 16-bit output resolution.

Maintenance teams managing multi-vendor control cabinets will also find the 1769-OF8C compatible with Phoenix Contact TRIO power supplies and Weidmüller terminal block systems, both of which are common in hybrid panel builds across European-standard heavy industry sites.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1769-OF8C drives 4–20 mA setpoints to electro-hydraulic actuators on wellhead choke valves, where signal accuracy directly affects flow rate control and pressure management. Offshore platforms and onshore gas processing facilities demand modules that withstand salt-laden air, condensation cycles, and continuous vibration from rotating machinery — conditions the 1769-OF8C is rated to endure within a properly sealed control enclosure.

In underground mining, conveyor drive systems and ventilation fan controllers rely on analog output modules to modulate VFD speed references. The 1769-OF8C’s 16-bit resolution enables fine-grained speed control that reduces mechanical stress on drive trains, extending equipment service life in environments where maintenance access is costly and infrequent.

At thermal power generation facilities, the module is deployed in boiler combustion control loops, where it outputs precise 4–20 mA signals to fuel control valves and forced-draft fan damper actuators. Combustion efficiency and emissions compliance depend on the stability and repeatability of these analog outputs across wide ambient temperature ranges — a requirement the 1769-OF8C meets by design.

In municipal water treatment and wastewater management, the 1769-OF8C controls dosing pump speeds and valve positions in chemical feed systems. The module’s low drift characteristics ensure that chemical dosing remains within regulatory limits even during extended unattended operation, reducing the risk of compliance violations and process upsets.

Across metallurgical and steel production environments, where radiated heat, heavy vibration, and high-current switching create extreme EMI conditions, the 1769-OF8C’s robust backplane isolation and CE-certified EMC performance make it a trusted choice for continuous casting line control and rolling mill automation.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers verified hardware defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange a direct replacement after remote fault verification. Contact [email protected] with your order reference and a brief fault description to initiate a claim. Replacement units are typically dispatched within 3–5 business days.

Q2: How is each 1769-OF8C unit tested before shipment?
Every module undergoes a pre-shipment functional test that verifies channel-by-channel output accuracy across the full 4–20 mA range, backplane communication integrity, and power consumption within specification. Units that fail any test parameter are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 1769-OF8C compatible with all CompactLogix controller revisions?
The 1769-OF8C is compatible with all 1769 CompactLogix controllers that support the standard 1769 local I/O bus, including the L16ER, L18ER, L24ER, L27ERM, L30ER, L33ER, and L36ERM series. Firmware revision requirements are managed through Rockwell’s Add-On Profile (AOP) in Studio 5000 Logix Designer. TOPNLMS can advise on specific firmware compatibility for your installed controller revision upon request.

Q4: Can TOPNLMS support long-term or repeat supply of the 1769-OF8C for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand CompactLogix I/O modules including the 1769-OF8C to support planned maintenance schedules, emergency breakdowns, and capital project builds. Blanket purchase orders and scheduled release agreements are available for facilities requiring guaranteed supply continuity. Contact our team at [email protected] or +86 18359293191 to discuss volume pricing and lead-time commitments.
