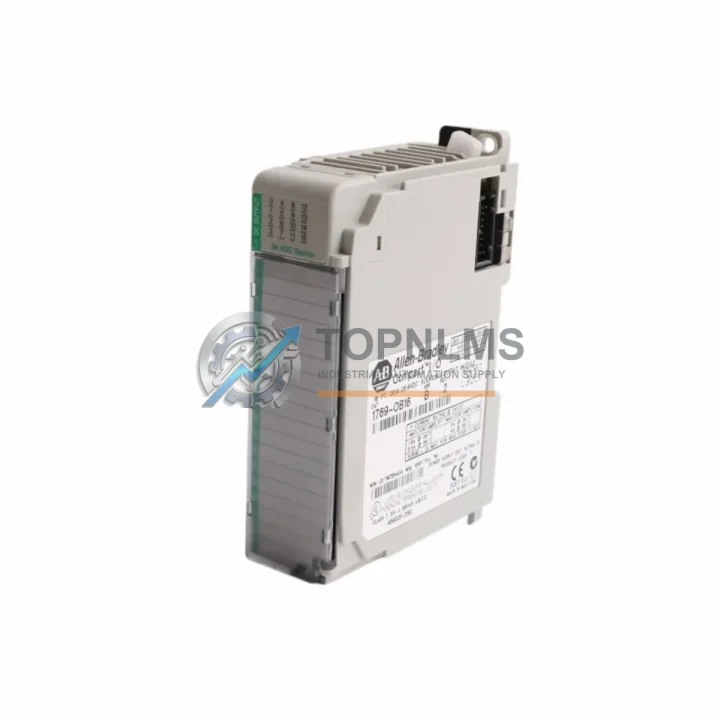

Allen-Bradley 1769-OB16 Ruggedized Digital Output Module

Product Overview

Allen-Bradley 1769-OB16 Ruggedized Digital Output Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1769-OB16 is a 16-point, 24VDC sourcing digital output module engineered for the CompactLogix 1769 series platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to operate reliably under the demanding conditions found in continuous production lines, heavy manufacturing, and safety-critical infrastructure, the 1769-OB16 delivers consistent switching performance even in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI).

Unlike general-purpose I/O modules, the 1769-OB16 is built to the rugged standards expected of Allen-Bradley’s CompactLogix ecosystem. Its solid-state output circuitry eliminates mechanical wear, while its compact 1769 bus-compatible form factor allows direct integration into existing CompactLogix control cabinets without additional wiring adapters or interface converters. Whether you are managing a petrochemical processing skid, a coal preparation plant, a municipal water treatment facility, or a steel rolling mill, this module provides the deterministic output control your process demands.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1769-OB16 does not operate in isolation — it is a critical node within a broader control architecture. In a typical CompactLogix panel, it works in concert with the 1769-IQ16 16-point digital input module, which captures field-level signals from limit switches, proximity sensors, and safety interlocks. Together, these two modules form the core I/O layer of a CompactLogix rack, enabling closed-loop control of actuators, solenoid valves, motor starters, and indicator lamps.

For applications requiring analog process control alongside discrete outputs, the 1769-IF4 analog input module and 1769-OF2 analog output module integrate seamlessly on the same 1769 bus, allowing the controller to manage both on/off switching and proportional control within a single compact chassis. In high-availability installations, the 1769-L33ER CompactLogix controller provides the processing backbone, coordinating all I/O modules with deterministic EtherNet/IP scan cycles.

Power integrity is equally critical in harsh environments. The 1769-PA2 power supply module delivers regulated 24VDC bus power to the 1769 I/O rack, protecting downstream modules — including the 1769-OB16 — from voltage transients and brownout conditions common in heavy industrial facilities. For installations near variable-frequency drives (VFDs) or large motor starters, supplementary EMI filtering on the power rail is strongly recommended to prevent spurious output switching.

In safety-rated applications, the 1769-OB16 is often deployed alongside Allen-Bradley GuardLogix safety controllers and 1791DS series safety I/O modules, which handle SIL 2 / PLd safety functions such as emergency stop circuits, light curtain monitoring, and two-hand control interlocks. The standard 1769-OB16 handles non-safety discrete outputs — such as conveyor drive enables, valve actuations, and alarm horn activations — while the safety I/O layer manages the protective shutdown logic independently.

Communication continuity is maintained through the 1769-L3x series built-in EtherNet/IP port, enabling real-time diagnostics, remote I/O status monitoring, and integration with SCADA systems via standard industrial protocols. For legacy installations using DeviceNet or ControlNet, the 1769-SDN scanner module bridges the 1769 rack to existing fieldbus networks without requiring a full system redesign.

Application in Critical Infrastructure

In oil and gas processing facilities, the 1769-OB16 controls wellhead valve actuators, separator dump valves, and flare ignition systems. Its solid-state outputs eliminate the contact bounce and arcing associated with electromechanical relays, reducing maintenance intervals in remote, unmanned installations where technician access is costly and infrequent. The module’s optical isolation ensures that high-voltage transients from solenoid coil switching do not propagate back into the controller logic, protecting the entire CompactLogix rack from damage.

In underground mining operations, where coal dust, silica particulates, and methane gas create both mechanical and explosive hazards, the 1769-OB16 is installed within sealed, purged control enclosures rated for Zone 2 / Division 2 hazardous locations. It manages conveyor belt start/stop sequences, ventilation fan controls, and dewatering pump activations — all functions where output module reliability directly impacts worker safety and production continuity.

In power generation and substation automation, the module interfaces with protection relay panels, circuit breaker control circuits, and transformer tap changer actuators. Its 24VDC sourcing architecture is compatible with the standard control voltage levels used in IEC 61850-compliant substation automation systems, simplifying integration with existing protection and control infrastructure.

In water and wastewater treatment plants, the 1769-OB16 drives chemical dosing pump enables, UV disinfection system controls, and effluent valve actuations across multiple treatment stages. Its compact form factor allows installation in space-constrained field panels located near pump stations and clarifier drives, reducing field wiring runs and improving signal integrity.

In metallurgical and steel production environments — where ambient temperatures near furnaces and rolling mills can exceed 50°C and electromagnetic noise from large induction heating systems is pervasive — the 1769-OB16’s rated operating temperature range and EMI immunity make it a dependable choice for controlling cooling water valves, hydraulic press enables, and rolling mill speed reference outputs.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1769-OB16?
All 1769-OB16 modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. If a module exhibits any functional defect within the warranty period under normal operating conditions, we will arrange replacement or repair at no additional cost. Our warranty covers manufacturing defects and functional failures — it does not cover damage resulting from incorrect installation, overvoltage conditions beyond rated specifications, or physical mishandling.

Q2: How is each module tested before shipment?
Every 1769-OB16 unit undergoes a pre-shipment functional verification process at our Xiamen facility. This includes power-on self-test confirmation, output channel continuity checks across all 16 points, and visual inspection for physical integrity. Modules sourced from authorized distribution channels are accompanied by original manufacturer documentation. We do not ship untested or cosmetically damaged units.

Q3: Is the 1769-OB16 compatible with all CompactLogix controllers and existing 1769 I/O racks?
Yes. The 1769-OB16 is fully compatible with all CompactLogix controllers that support the 1769 I/O bus, including the L1x, L2x, L3x, L4x, and L5x series. It can be mixed freely with other 1769 I/O modules — analog, digital input, specialty, and communication modules — within the same rack, subject to the controller’s maximum I/O module count and power budget. No firmware modifications or special configuration files are required beyond standard RSLogix 5000 / Studio 5000 I/O tree configuration.

Q4: Can TOPNLMS support long-term supply continuity for ongoing maintenance and spare parts programs?
Yes. TOPNLMS maintains standing inventory of high-demand CompactLogix I/O modules, including the 1769-OB16, to support both emergency replacement orders and planned preventive maintenance programs. We can accommodate blanket purchase orders, scheduled delivery agreements, and priority allocation for customers with critical infrastructure requirements. Contact our technical sales team to discuss volume pricing, lead time commitments, and spare parts program structuring for your facility.
