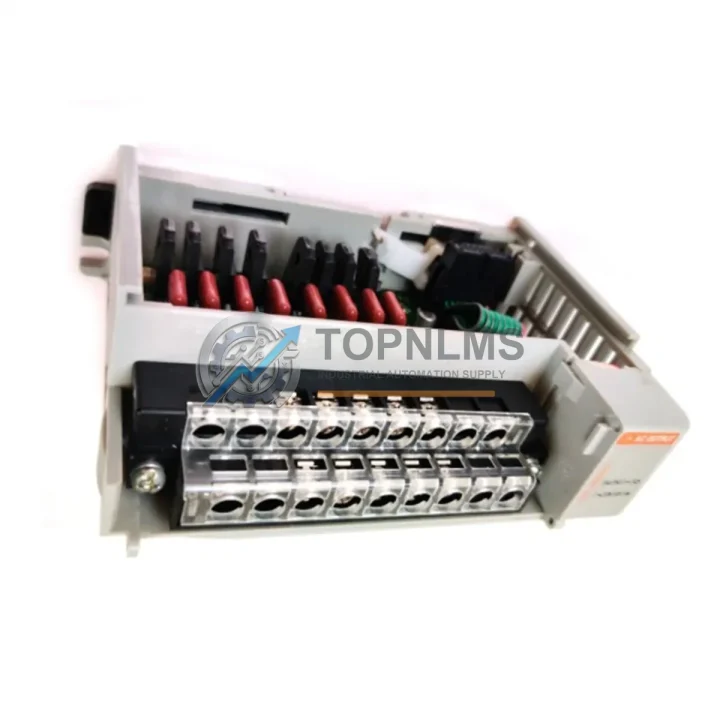

Allen-Bradley 1769-OA8 Ruggedized AC Output Module for Harsh Environments

Product Overview

Allen-Bradley 1769-OA8 Ruggedized AC Output Module for Harsh Environments

The Allen-Bradley 1769-OA8 is an 8-point, 120/240VAC solid-state output module engineered for the CompactLogix 1769 series platform — one of Rockwell Automation’s most widely deployed control architectures in demanding industrial environments. Designed to deliver consistent, interference-resistant switching performance, the 1769-OA8 is built to sustain continuous operation across high-temperature, high-humidity, dust-laden, and vibration-intensive plant floors where output reliability is non-negotiable.

In heavy industrial settings — from petrochemical processing lines to mineral extraction facilities — output modules are the last line of control between the PLC logic and the physical world. The 1769-OA8 uses solid-state TRIAC switching technology, eliminating mechanical wear and enabling millions of switching cycles without degradation. This makes it an ideal long-term replacement component for aging CompactLogix systems operating in continuous production environments where unplanned downtime carries significant operational cost.

Each 1769-OA8 module integrates directly into the CompactLogix 1769 backplane, communicating over the high-speed local bus with the 1769-L series processors such as the 1769-L30ER, 1769-L33ER, and 1769-L36ERM. The module’s field-side isolation and per-channel fusing architecture provide robust protection against load-side faults, ensuring that a single field device failure does not cascade into broader system disruption — a critical requirement in safety-sensitive applications.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1769-OA8 does not operate in isolation — it is one node in a tightly integrated control architecture. In a typical CompactLogix panel, the 1769-OA8 works alongside the 1769-IQ16 16-point 24VDC discrete input module, which feeds real-time field status back to the processor. For analog process control loops, the 1769-IF4 4-channel analog input module and 1769-OF2 2-channel analog output module handle continuous signal conditioning, while the 1769-OA8 manages the high-voltage switching of contactors, solenoid valves, and motor starters.

Power integrity for the entire 1769 rack is maintained by the 1769-PA2 or 1769-PB2 power supply modules, which deliver regulated 5VDC backplane power with built-in short-circuit protection. In environments with significant electromagnetic interference — common in arc furnace facilities, variable frequency drive (VFD) rooms, and high-current bus zones — the system benefits from proper grounding practices and the use of shielded cable assemblies on all field wiring terminations.

For applications requiring functional safety compliance, the 1769-OA8 is often deployed alongside Rockwell’s GuardLogix 1756-L7xS safety controller or the compact SmartGuard 600 safety PLC, which handle SIL 2/3 safety logic while the CompactLogix system manages standard process control. Communication between control zones is facilitated by the 1769-L33ER processor’s dual EtherNet/IP ports, enabling seamless integration with SCADA systems, HMI panels such as the PanelView Plus 7, and plant-level MES platforms.

Terminal block wiring for the 1769-OA8’s field-side connections is typically managed through 1492-CABLE series pre-wired cables or 1492-IFM interface modules, which reduce wiring errors and accelerate commissioning time in large panel builds. For installations requiring additional I/O expansion beyond the local 1769 bus, the 1769-ARM address reserve module and 1769-ECR right-end cap complete the rack assembly and maintain bus integrity.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1769-OA8 controls wellhead safety shutdown valves, chemical injection pump contactors, and flare ignition systems — all of which demand zero-tolerance reliability under extreme temperature swings and corrosive atmospheric conditions. The module’s solid-state design eliminates the arcing and contact bounce associated with electromechanical relays, making it the preferred choice for hazardous area panel builders who mount CompactLogix systems in purged and pressurized Ex-p enclosures.

In mining and mineral processing, the 1769-OA8 drives conveyor belt motor starters, crusher interlock circuits, and dust suppression solenoids across facilities where vibration levels routinely exceed those of standard industrial environments. Its IEC 60068-2-6 vibration compliance ensures that solder joints and backplane connectors maintain integrity even when mounted on vibrating structural steel.

In power generation and grid substations, the module is used to control auxiliary equipment — cooling fans, oil pump motors, and circuit breaker trip coils — where the 120/240VAC output range aligns directly with standard utility auxiliary power systems. The optical isolation between the logic side and field side provides critical protection against high-voltage transients induced by switching operations on adjacent HV equipment.

In water and wastewater treatment, the 1769-OA8 manages pump station motor starters, UV disinfection lamp ballasts, and chemical dosing valve actuators across facilities that operate 24/7/365. The module’s 0–60°C operating range accommodates both outdoor pump stations in tropical climates and indoor treatment halls with limited HVAC.

In metallurgical and steel production environments, where electromagnetic interference from large induction furnaces and DC drive systems is pervasive, the 1769-OA8’s EMC immunity — tested to IEC 61000-4-4 (EFT/burst) and IEC 61000-4-5 (surge) — ensures that output switching commands are executed accurately without spurious triggering or missed pulses.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1769-OA8?
All 1769-OA8 modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. If the module exhibits any functional defect under normal operating conditions within this period, we will arrange replacement or repair at no additional cost. Our warranty covers manufacturing defects and functional failures — not damage caused by incorrect installation, overvoltage, or physical impact.

Q2: How is each unit tested before shipment?
Every 1769-OA8 unit undergoes pre-shipment functional verification, including backplane communication check, per-channel output switching test, and visual inspection for physical integrity. Units sourced from authorized distribution channels are cross-referenced against Rockwell Automation’s genuine product identifiers. We do not ship untested stock.

Q3: Is the 1769-OA8 compatible with my existing CompactLogix system?
The 1769-OA8 is compatible with all CompactLogix 1769 series processors and expansion racks. It is hot-swappable in systems configured for removal and insertion under power (RIUP). Studio 5000 Logix Designer (v16 and above) automatically recognizes the module’s electronic data sheet (EDS) profile. If you are unsure about compatibility with a specific firmware revision or rack configuration, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term or repeat procurement of the 1769-OA8?
Yes. TOPNLMS maintains standing inventory of high-demand CompactLogix modules including the 1769-OA8 to support MRO (maintenance, repair, and operations) procurement programs. We can accommodate blanket purchase orders, scheduled releases, and emergency same-day dispatch for critical plant shutdowns. Contact us at [email protected] or +86 18359293191 to discuss volume pricing and lead time commitments.
