Allen-Bradley 1769-L36ERMS/A Ruggedized Safety PLC for Harsh Environments

Product Overview

Allen-Bradley 1769-L36ERMS/A Ruggedized Safety PLC for Harsh Environments

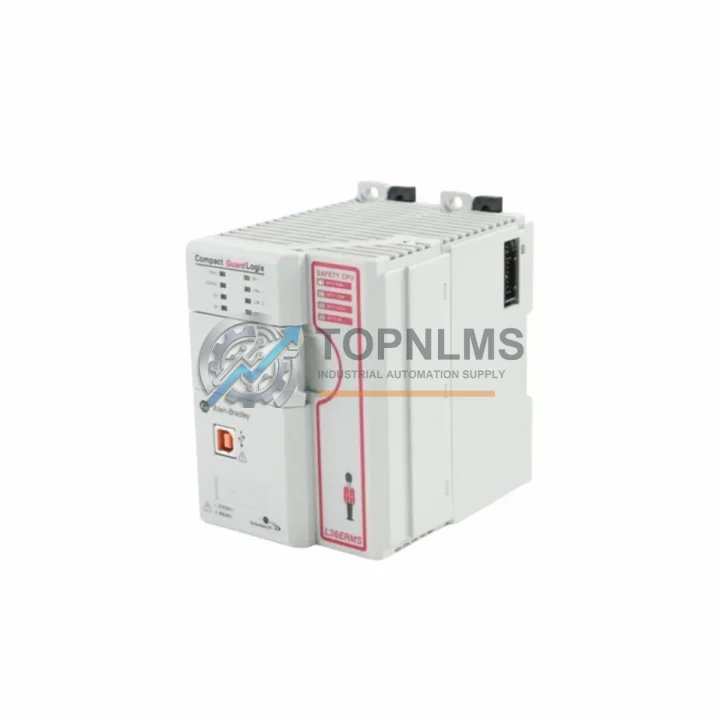

The Allen-Bradley 1769-L36ERMS/A is a CompactLogix 5370 L3 Safety PLC Processor engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed to meet IEC 61508 SIL 2 safety integrity requirements, this processor integrates standard control and safety control on a single platform — eliminating the need for a separate safety controller and reducing panel footprint in space-constrained control cabinets. Whether deployed on a continuous petrochemical production line, a high-vibration mining conveyor system, or a high-humidity water treatment facility, the 1769-L36ERMS/A delivers the deterministic scan-time performance and safety-rated I/O management that mission-critical infrastructure demands.

Built on Rockwell Automation’s proven CompactLogix 5370 L3 architecture, this processor supports EtherNet/IP as its primary communication backbone, enabling seamless integration with distributed I/O racks, variable frequency drives, intelligent motor control centers, and SCADA systems across plant-wide networks. Its dual-port EtherNet/IP interface supports Device Level Ring (DLR) topology, providing network-level redundancy that keeps safety-critical communications intact even when a single cable segment fails — a decisive advantage in environments where network interruption can trigger costly unplanned shutdowns.

In high-temperature foundry and steel mill environments where ambient temperatures routinely exceed 50 °C, the 1769-L36ERMS/A’s extended operating temperature range and conformal-coated PCB design resist thermal stress, condensation, and corrosive airborne particulates. In explosive-atmosphere zones classified under ATEX or NEC Class I/II standards, this processor can serve as the safety-rated brain of a compliant control architecture, coordinating emergency shutdown sequences, pressure relief interlocks, and flame/gas detection responses without requiring a separate safety relay network.

The processor’s 2 MB user memory and 1769 Compact I/O backplane compatibility allow engineers to configure mixed standard and safety I/O in a single chassis. Paired with 1769-IQ16 digital input modules, 1769-OB16 digital output modules, 1769-IF4 analog input modules, and 1769-OF2 analog output modules, the 1769-L36ERMS/A forms a complete, compact control node capable of managing hundreds of field devices simultaneously. For applications requiring motion control, it integrates natively with Kinetix 5500 servo drives over EtherNet/IP, enabling coordinated multi-axis motion with safety-rated STO (Safe Torque Off) functionality.

In power generation and substation automation, the 1769-L36ERMS/A pairs with 1783-series managed EtherNet/IP switches and 1756-EN2T ControlLogix communication modules to form a layered, defense-in-depth network architecture. Its CIP Safety protocol support ensures that safety data packets are transmitted with integrity verification, time-stamping, and connection monitoring — meeting the stringent requirements of IEC 61784-3 functional safety communication standards. For facilities running legacy DeviceNet or ControlNet infrastructure, the processor can be integrated via 1769-SDN DeviceNet scanner modules or 1769-CNB ControlNet bridge modules, protecting existing investments while modernizing the safety layer.

Procurement engineers and MRO buyers sourcing the 1769-L36ERMS/A for spare parts inventory or emergency replacement will find TOPNLMS maintains verified stock of this processor, fully tested prior to shipment. Each unit undergoes functional verification including memory integrity checks, communication port validation, and firmware version confirmation before dispatch. The 1769-L36ERMS/A ships with its original firmware intact and is compatible with Studio 5000 Logix Designer v21 and above, ensuring drop-in replacement compatibility with existing project files without requiring controller re-commissioning in most standard configurations.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1769-L36ERMS/A is rarely deployed in isolation — its true value emerges when integrated into a layered protection architecture. In a typical safety-instrumented system (SIS), this processor coordinates with 1769-SM2 safety I/O modules to monitor field sensors such as pressure transmitters, temperature switches, and gas detectors, executing pre-programmed safety functions within the required response time. For motor protection, it interfaces with E300 Electronic Overload Relays via EtherNet/IP, enabling remote diagnostics and trip logging without requiring panel access in hazardous areas.

Power quality and supply stability are equally critical in harsh-environment deployments. The 1769-L36ERMS/A system is typically powered through 1606-XLP power supplies, which provide regulated 24 VDC with wide-range AC input tolerance — maintaining stable processor operation during voltage sags common in heavy industrial facilities. For installations requiring UPS-backed power, the processor integrates seamlessly with 1609-series uninterruptible power supplies, ensuring orderly shutdown sequences rather than abrupt power loss during grid disturbances.

Communication integrity across the plant floor is maintained through 1783-BMS managed EtherNet/IP switches, which support IGMP snooping, QoS prioritization, and port-level diagnostics — ensuring that CIP Safety traffic from the 1769-L36ERMS/A is never starved of bandwidth by lower-priority process data. For remote I/O expansion beyond the local chassis, 1734-AENTR POINT I/O EtherNet/IP adapters extend the processor’s I/O reach to field junction boxes up to several hundred meters away, maintaining the same CIP Safety integrity as local I/O.

In facilities where legacy Modbus RTU or PROFIBUS DP devices remain in service, the 1769-L36ERMS/A can communicate through 1769-ASCII or third-party gateway modules, bridging modern EtherNet/IP safety architecture with installed field instrumentation. This interoperability makes the 1769-L36ERMS/A a practical upgrade path for brownfield plants modernizing their safety layer without replacing all field devices simultaneously.

Application in Critical Infrastructure

In upstream oil and gas facilities, the 1769-L36ERMS/A serves as the primary safety controller for wellhead emergency shutdown (ESD) systems, managing high-integrity pressure protection systems (HIPPS) that isolate process flow within milliseconds of an overpressure event. Its SIL 2 rating satisfies the functional safety requirements of IEC 61511, the process industry safety standard, making it a compliant choice for safety-instrumented functions (SIFs) with moderate risk reduction requirements.

In underground mining operations, where vibration from blasting and heavy machinery is constant and ambient dust concentrations can be extreme, the 1769-L36ERMS/A’s robust mechanical design and conformal coating protect internal circuitry from particulate ingress and mechanical fatigue. It manages conveyor belt safety interlocks, ventilation fan control, and emergency stop circuits — functions where a single control failure can have catastrophic consequences for personnel safety.

Water and wastewater treatment plants rely on the 1769-L36ERMS/A to manage chemical dosing interlocks, pump protection sequences, and overflow prevention logic in environments characterized by high humidity, chemical vapors, and 24/7 continuous operation. Its deterministic scan time ensures that safety functions execute within defined time windows regardless of the volume of standard process data being processed simultaneously.

In electric power generation — whether thermal, hydro, or renewable — the processor coordinates turbine protection systems, generator excitation control interlocks, and grid synchronization safety logic. Its dual-port EtherNet/IP with DLR support ensures that a single cable fault does not interrupt safety communications, a requirement increasingly mandated by grid operators and insurance underwriters for grid-connected generation assets.

Metallurgical and smelting operations present some of the most extreme thermal and electromagnetic environments in industry. The 1769-L36ERMS/A’s EMC-hardened design withstands the high-frequency electromagnetic interference generated by arc furnaces and induction heating equipment, maintaining reliable safety function execution in environments where lesser controllers experience spurious trips or communication dropouts.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the 1769-L36ERMS/A?
Every 1769-L36ERMS/A shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Each 1769-L36ERMS/A undergoes a pre-shipment functional verification protocol that includes power-on self-test (POST) confirmation, EtherNet/IP port communication validation, memory integrity verification, and firmware version documentation. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is this unit compatible with my existing Studio 5000 project files?
The 1769-L36ERMS/A is compatible with Studio 5000 Logix Designer version 21 and above. In most cases, it can be used as a direct drop-in replacement for a failed unit of the same catalog number without requiring project file modification, provided the firmware version is matched. TOPNLMS can confirm the firmware revision of the unit in stock prior to shipment upon request.

Q4: Can TOPNLMS support long-term or repeat supply of this part?
Yes. TOPNLMS maintains ongoing stock of the 1769-L36ERMS/A and can support blanket purchase orders, scheduled releases, and emergency spot procurement. For MRO programs and OEM integrators requiring guaranteed supply continuity, TOPNLMS offers reserved stock arrangements. Contact our team to discuss volume pricing and supply agreements tailored to your maintenance schedule.
