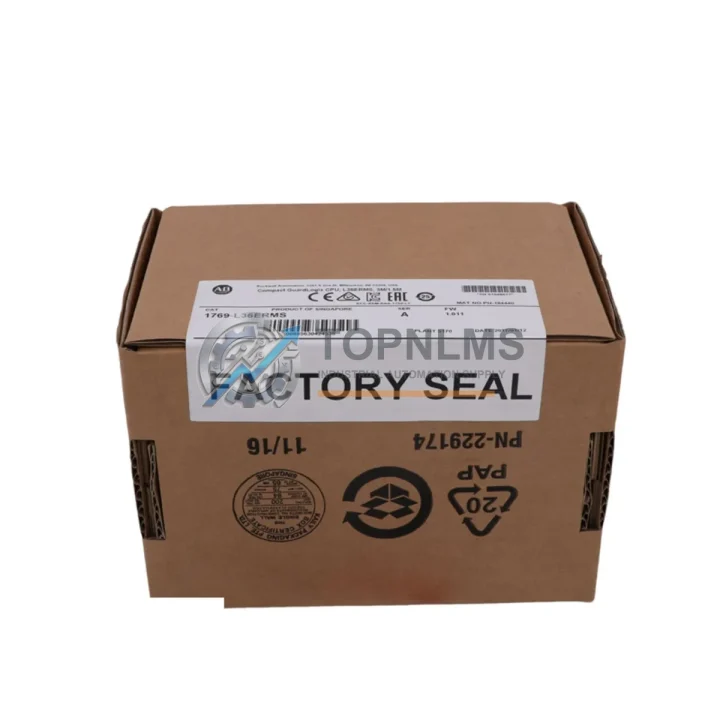

Allen-Bradley 1769-L36ERM Ruggedized Motion Controller for Harsh Environments

Product Overview

Allen-Bradley 1769-L36ERM Ruggedized Motion Controller for Harsh Environments

The Allen-Bradley 1769-L36ERM is a high-performance CompactLogix 5370 L3 EtherNet/IP Motion Controller engineered to deliver uncompromising reliability in the most demanding industrial environments. With 3 MB of user memory and coordinated motion control for up to 16 axes, this controller is purpose-built for continuous production lines, critical infrastructure, and heavy-industry applications where downtime is not an option. Its compact modular architecture integrates seamlessly into existing Rockwell Automation control systems, making it an ideal choice for both new installations and direct spare-part replacement of aging controllers.

Designed to operate reliably across wide temperature ranges, high-humidity conditions, and environments subject to vibration, shock, and electromagnetic interference, the 1769-L36ERM meets the rigorous demands of oil and gas platforms, mining operations, power generation facilities, water treatment plants, and metallurgical processing lines. Its dual EtherNet/IP ports support Device Level Ring (DLR) topology, providing network-level redundancy that keeps communication intact even when a single cable segment fails — a critical feature in facilities where network interruptions can trigger costly production stoppages or safety incidents.

The controller’s integrated motion engine coordinates servo drives and variable frequency drives (VFDs) over the EtherNet/IP network without requiring a dedicated motion bus, simplifying cabinet wiring and reducing the number of components in the control enclosure. When paired with Kinetix 5500 or Kinetix 5700 servo drives, the 1769-L36ERM delivers precise, synchronized multi-axis motion that is essential for packaging machinery, robotic assembly cells, and precision material handling systems operating in dusty or chemically aggressive atmospheres.

In harsh-environment deployments, the 1769-L36ERM works in close coordination with 1769 CompactLogix I/O expansion modules — including digital input/output modules such as the 1769-IQ16 and 1769-OB16 — to extend the controller’s reach across distributed field devices. Analog I/O modules like the 1769-IF4 provide high-resolution signal conditioning for process sensors operating in high-noise industrial environments. For safety-critical applications, the controller integrates with GuardLogix safety modules and 1791DS Compact GuardI/O safety I/O modules, enabling a unified standard and safety control architecture on a single EtherNet/IP network.

Power integrity is maintained through 1769-PA2 or 1769-PB2 power supply modules, which provide regulated 24 VDC bus power to the CompactLogix I/O rail. In control cabinets subject to voltage fluctuations or transient surges — common in heavy industrial environments near large motor drives or welding equipment — these power supplies ensure the controller and its I/O modules receive clean, stable power. Communication is further extended via 1769-L36ERM’s native EtherNet/IP port to POINT I/O adapters, Flex I/O systems, and remote I/O racks distributed across the plant floor, all managed through a single Logix Designer project.

For facilities running PROFIBUS or DeviceNet legacy field devices alongside modern EtherNet/IP infrastructure, the 1769-L36ERM supports integration through communication bridge modules, preserving existing field wiring investments while upgrading the control layer. Terminal block modules and marshalling panels within the control cabinet are simplified by the CompactLogix modular rail system, reducing installation time and improving maintainability during scheduled shutdowns.

As a stocked spare part, the 1769-L36ERM provides immediate replacement capability for facilities operating aging CompactLogix 5370 L3 systems. Unplanned controller failures in continuous process industries — petrochemical refineries, cement plants, steel mills — can result in losses far exceeding the cost of maintaining a spare controller on the shelf. TOPNLMS maintains verified stock of the 1769-L36ERM, with each unit inspected and function-tested prior to shipment to ensure it meets original Rockwell Automation performance specifications.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1769-L36ERM is rarely deployed in isolation — its true value emerges as the control hub of a fully integrated, protection-layered automation system. In a typical heavy-industry control cabinet, the controller operates alongside 1769-IQ16 digital input modules monitoring field sensors, 1769-OB16 digital output modules driving solenoid valves and motor starters, and 1769-IF4 analog input modules processing 4–20 mA signals from pressure transmitters and flow meters. These I/O modules share the CompactLogix backplane, communicating with the controller at high speed without adding network latency.

For motion-intensive applications, the 1769-L36ERM connects over EtherNet/IP to Kinetix 5500 single-axis servo drives and Kinetix 5700 multi-axis servo drives, enabling coordinated motion profiles for conveyor synchronization, robotic pick-and-place, and precision positioning in environments where vibration and temperature extremes would challenge less robust hardware. Variable frequency drives (VFDs) such as the PowerFlex 525 and PowerFlex 755 are integrated via EtherNet/IP, allowing the controller to manage motor speed, torque, and energy consumption across the production line from a single control program.

Safety is addressed through integration with 1791DS Compact GuardI/O safety I/O modules and safety relays, which monitor emergency stop circuits, light curtains, and safety door interlocks. The 1769-L36ERM’s EtherNet/IP network carries both standard and safety data, reducing cabinet wiring complexity while maintaining SIL 2 / PLd safety integrity levels required in oil and gas and chemical processing environments. Communication modules such as the 1769-SM2 serial module extend connectivity to legacy SCADA systems and third-party devices using RS-232 or RS-485 protocols, ensuring the controller fits into mixed-generation plant architectures without requiring a full infrastructure overhaul.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1769-L36ERM controls wellhead automation panels, pipeline compressor stations, and gas processing skids where ambient temperatures fluctuate widely and explosive atmospheres demand rigorous electrical safety practices. The controller’s DLR-capable EtherNet/IP ports maintain communication continuity across ring-topology field networks even when a single cable segment is damaged by mechanical impact or corrosion — a common failure mode in outdoor pipeline installations.

In underground and open-cut mining operations, the controller manages conveyor drive systems, crusher controls, and ventilation fan automation in environments characterized by heavy vibration, coal dust, and high humidity. Its wide operating temperature range and compliance with IEC 60068 environmental standards make it suitable for installation in surface control rooms and underground electrical substations alike. Water treatment and wastewater facilities rely on the 1769-L36ERM to automate pump stations, chemical dosing systems, and filtration processes where continuous, unattended operation is required and controller failure would have immediate public health consequences.

In electric power generation and transmission, the controller is deployed in turbine control panels, switchgear automation systems, and substation RTU cabinets, where electromagnetic interference from high-voltage switching events demands robust EMC performance. Metallurgical plants — including steel rolling mills, aluminum smelters, and copper refineries — operate the 1769-L36ERM in high-temperature, high-vibration environments adjacent to induction furnaces and heavy rolling equipment, relying on its rugged construction and proven Rockwell Automation platform reliability to sustain continuous production schedules.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1769-L36ERM?
Every 1769-L36ERM supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. If the unit develops a fault attributable to manufacturing defects or component failure under normal operating conditions within the warranty period, TOPNLMS will provide a replacement unit or full refund. This warranty applies to all stocked units regardless of original manufacture date, provided the unit passes our pre-shipment functional test.

Q2: How is each unit tested before shipment?
All 1769-L36ERM controllers in TOPNLMS inventory undergo a multi-point inspection and functional verification process prior to dispatch. This includes visual inspection for physical damage, firmware version verification, power-on self-test confirmation, and communication port functionality checks. Units that do not pass all inspection criteria are quarantined and not offered for sale. Test records are retained and can be provided upon request for quality-assurance documentation purposes.

Q3: Is the 1769-L36ERM compatible with my existing CompactLogix system and Studio 5000 project?
Yes. The 1769-L36ERM is a direct form-fit-function replacement for other CompactLogix 5370 L3 controllers within the same chassis configuration. It is fully compatible with Studio 5000 Logix Designer programming software and supports all standard 1769 CompactLogix I/O modules. Existing Logix Designer project files can be downloaded to the replacement controller after verifying firmware revision compatibility. TOPNLMS technical support can assist with firmware guidance and compatibility verification prior to purchase.

Q4: Can TOPNLMS guarantee long-term supply and support for this part?
TOPNLMS maintains dedicated stock of the 1769-L36ERM and actively monitors supply chain availability to ensure continuity for customers with ongoing maintenance and spare-parts programs. For facilities requiring guaranteed availability over a multi-year maintenance contract, TOPNLMS offers reserved stock arrangements. Our procurement team sources units through verified distribution channels and conducts authenticity checks on all inventory. Customers requiring certificates of conformance, country-of-origin documentation, or customs compliance paperwork for import into regulated markets can request these documents at the time of order.
