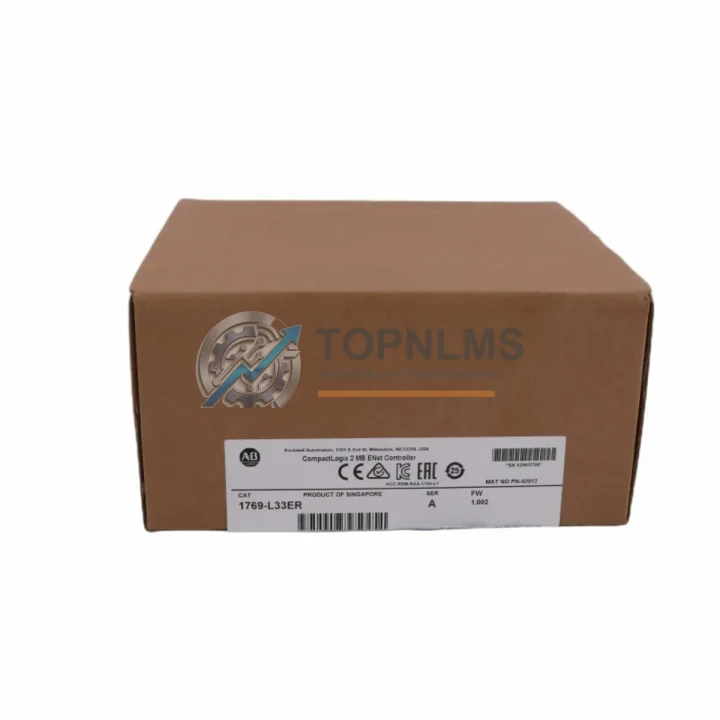

Allen-Bradley 1769-L33ER Ruggedized EtherNet/IP Controller

Product Overview

Allen-Bradley 1769-L33ER Ruggedized EtherNet/IP Controller: Industrial Resilience for Harsh Environments

The Allen-Bradley 1769-L33ER is a high-performance CompactLogix 5370 L3 series programmable logic controller engineered to deliver uncompromising reliability in the most demanding industrial environments. Designed and manufactured by Rockwell Automation, this controller integrates dual EtherNet/IP ports for seamless network redundancy, enabling continuous communication across distributed control architectures without a single point of network failure. Whether deployed in high-temperature foundries, moisture-laden water treatment facilities, dust-heavy mining operations, or vibration-intensive heavy manufacturing lines, the 1769-L33ER maintains deterministic scan-cycle performance and system integrity where lesser controllers fail.

With 2 MB of user memory and support for up to 16 expansion I/O modules via the 1769 Compact I/O platform, this controller scales efficiently across mid-range automation applications. Its onboard EtherNet/IP dual-port switch eliminates the need for external managed switches in linear or Device Level Ring (DLR) topologies, reducing cabinet footprint and simplifying wiring in space-constrained control panels. The integrated USB programming port allows direct Studio 5000 Logix Designer connection for rapid commissioning, firmware updates, and on-site diagnostics without disrupting the live network.

In environments subject to electromagnetic interference — such as those near large variable frequency drives, arc welding stations, or high-voltage switchgear — the 1769-L33ER’s robust EMC design and shielded backplane architecture maintain signal integrity across all connected 1769 analog and digital I/O modules. When paired with 1769-IQ16 digital input modules, 1769-OB16 digital output modules, or 1769-IF4 analog input modules, the system delivers precise, noise-immune process control even in electrically hostile zones.

For safety-critical applications, the 1769-L33ER integrates seamlessly with GuardLogix safety controllers and 1791DS safety I/O modules over the same EtherNet/IP network, enabling a unified safety and standard control architecture that simplifies validation and reduces engineering overhead. This interoperability is essential in oil and gas processing, chemical manufacturing, and power generation facilities where IEC 61508 and IEC 62061 functional safety standards govern system design.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1769-L33ER is rarely deployed in isolation — it anchors a broader ecosystem of protection, control, and communication components that together ensure system-wide resilience. In a typical heavy-industry control cabinet, the controller works in concert with 1769-PA4 power supply modules to deliver stable, filtered DC power even when upstream AC supply fluctuates due to large motor starts or grid instability. Alongside the controller, 1769-OW16 relay output modules provide galvanic isolation between the PLC logic and high-voltage field devices, protecting the controller backplane from inductive kickback generated by solenoids, contactors, and motor starters.

For process-intensive applications requiring analog signal conditioning, the 1769-IF8 8-channel analog input module pairs directly with the 1769-L33ER to handle 4–20 mA and 0–10 V signals from pressure transmitters, flow meters, and temperature sensors — all within the same compact I/O rail. Where high-speed counter inputs are needed for encoder feedback or turbine flow measurement, the 1769-HSC high-speed counter module integrates without additional gateways, keeping the architecture clean and the scan time predictable.

Communication integrity across the plant floor is maintained through 1783-ETAP EtherNet/IP tap modules, which extend the DLR ring topology to remote I/O drops without introducing additional managed switches. For legacy device integration, 1769-SDN DeviceNet scanner modules bridge older field devices — including legacy variable frequency drives and pneumatic valve manifolds — into the modern EtherNet/IP architecture managed by the 1769-L33ER. In facilities where PROFIBUS or serial legacy equipment must coexist, 1761-NET-AIC advanced interface converters provide transparent protocol bridging under the controller’s supervision.

Safety system integration is achieved through 1791DS-IB8XOBV4 safety I/O modules connected over the EtherNet/IP network, enabling the 1769-L33ER to coordinate with GuardLogix safety controllers for emergency stop, light curtain, and safety gate monitoring — all without separate safety PLCs or proprietary safety buses. This unified architecture reduces the total number of components in the control cabinet, simplifies spare-parts management, and accelerates LOPA (Layer of Protection Analysis) documentation for process hazard reviews.

Application in Critical Infrastructure

Across critical infrastructure sectors, the Allen-Bradley 1769-L33ER has established a proven track record of continuous, unattended operation in environments that challenge both hardware and software. In upstream oil and gas wellhead automation, the controller manages electric submersible pump (ESP) control panels exposed to ambient temperatures exceeding 50 °C, corrosive hydrogen sulfide atmospheres, and persistent vibration from pump operation — conditions that demand the thermal margin and sealed backplane design inherent to the CompactLogix 5370 L3 platform.

In coal and hard-rock mining operations, the 1769-L33ER controls conveyor drive systems, ventilation fan starters, and dewatering pump stations in underground environments where coal dust accumulation, high humidity, and mechanical shock are constant operational realities. Its DLR-capable EtherNet/IP ports allow the controller to maintain network communication even when a single cable segment is severed by falling debris — a critical fault-tolerance feature in environments where cable damage is an operational risk rather than an exception.

Municipal and industrial water treatment facilities rely on the 1769-L33ER for SCADA-integrated control of aeration blowers, chemical dosing pumps, UV disinfection systems, and clarifier drives. The controller’s ability to handle both discrete and analog I/O within a single compact chassis — while simultaneously maintaining EtherNet/IP communication with SCADA servers and HMI panels — makes it the preferred choice for plant-wide automation upgrades where panel space is limited and downtime for installation must be minimized.

In electric power generation and substation automation, the 1769-L33ER manages auxiliary systems including cooling water pumps, lube oil systems, and generator excitation controls. Its compliance with IEC 61000-4 electromagnetic immunity standards ensures stable operation in proximity to high-voltage bus bars, current transformers, and capacitor banks — environments where radiated and conducted EMI levels routinely exceed those found in standard manufacturing facilities.

Metallurgical and steel processing plants deploy the 1769-L33ER in rolling mill automation, ladle transfer car control, and fume extraction systems — applications characterized by extreme thermal cycling, heavy mechanical vibration, and airborne metallic particulate. The controller’s wide operating temperature range and vibration-rated mounting design allow direct panel installation in mill-floor enclosures without the thermal management complexity required by less ruggedized alternatives.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Allen-Bradley 1769-L33ER from TOPNLMS?
Every 1769-L33ER shipped by TOPNLMS is covered by a 12-month quality warranty from the date of delivery. If the unit exhibits any manufacturing defect or functional failure under normal operating conditions within this period, we provide replacement or full refund support. Our warranty process is straightforward — contact [email protected] with your order reference and a description of the fault, and our technical team will initiate the resolution within one business day.

Q2: How is each unit tested before shipment?
All Allen-Bradley 1769-L33ER controllers in our inventory undergo pre-shipment functional verification, including power-on self-test confirmation, firmware version validation, and EtherNet/IP port communication checks. Units sourced from authorized distribution channels are inspected for physical integrity, label authenticity, and firmware consistency before being added to available stock. We do not ship units that show signs of prior field use, physical damage, or firmware anomalies.

Q3: Is the 1769-L33ER compatible with my existing CompactLogix or Studio 5000 project?
Yes. The 1769-L33ER is fully compatible with Studio 5000 Logix Designer v21 and later, and it supports all standard 1769 Compact I/O modules. Existing projects developed for other CompactLogix 5370 L3 controllers can typically be migrated with minimal modification. For cross-compatibility questions specific to your firmware version, I/O configuration, or add-on instruction libraries, our technical team is available to review your project requirements before purchase.

Q4: Can TOPNLMS support long-term supply and replacement needs for the 1769-L33ER?
Yes. TOPNLMS maintains ongoing stock of the 1769-L33ER and its associated CompactLogix ecosystem components to support both immediate replacement needs and planned maintenance programs. For facilities operating continuous production lines where unplanned downtime carries significant cost, we recommend establishing a standing spare-parts agreement. Contact our team to discuss volume pricing, reserved stock arrangements, and lead-time commitments tailored to your maintenance schedule.
