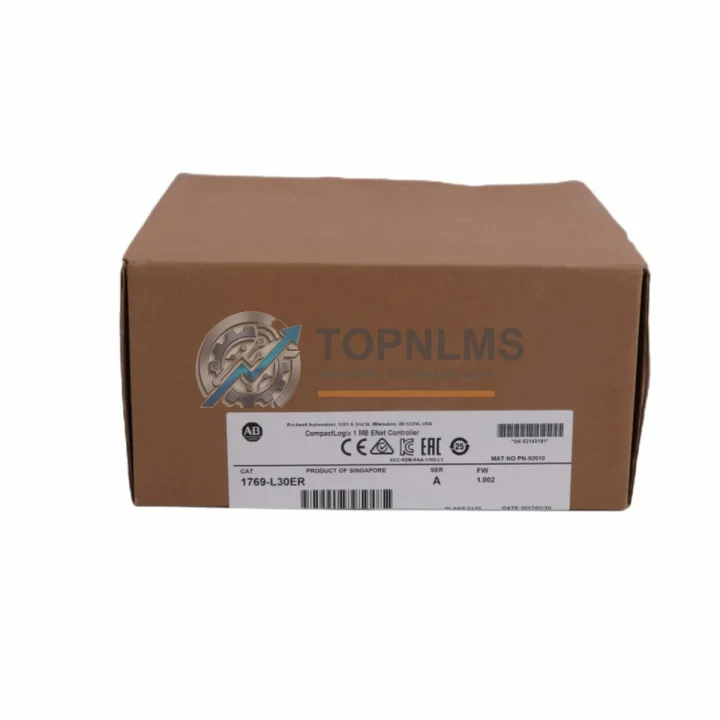

Allen-Bradley 1769-L30ER Replacement for CompactLogix 5370 L3

Product Overview

Allen-Bradley 1769-L30ER Replacement for CompactLogix 5370 L3: Seamless Migration & Smooth Transition

Migrating away from an aging or discontinued Allen-Bradley CompactLogix platform is one of the most critical decisions an industrial maintenance team can make. The Allen-Bradley 1769-L30ER is a high-performance CompactLogix 5370 L3 series programmable logic controller (PLC) that serves as a direct replacement or upgrade path for legacy CompactLogix 5370 L1, L2, and earlier L3 controllers, as well as older MicroLogix 1500 and SLC 500 systems that have reached end-of-life. Whether your facility is running a continuous process line, a discrete manufacturing cell, or a hybrid batch control system, the 1769-L30ER delivers the processing power, communication flexibility, and I/O scalability required for a smooth, low-risk cutover.

The 1769-L30ER features a 1 MB user memory capacity, dual EtherNet/IP ports for Device Level Ring (DLR) topology support, and is compatible with the full range of 1769 Compact I/O modules. Its integrated USB programming port allows direct connection to Studio 5000 Logix Designer without requiring a dedicated programming cable adapter, significantly reducing commissioning time during a retrofit. The controller supports CIP Motion, CIP Safety (with appropriate safety I/O), and standard CIP messaging, making it a versatile hub for both standard and safety-rated control architectures.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1769-L30ER rarely involves swapping the controller alone. In most retrofit projects, the surrounding system components must be evaluated and, where necessary, updated to ensure full compatibility and optimal performance. During the upgrade process, the existing 1769-PA2 or 1769-PB2 power supply module typically carries over without modification, as the 1769-L30ER operates within the same 1769 Compact I/O bus architecture. However, if the legacy system was powered by an older 1769-PA4 or a third-party rail power supply, a power budget recalculation is recommended before commissioning.

On the I/O side, existing 1769-IQ16 digital input modules and 1769-OB16 digital output modules remain fully compatible and can be retained in their current slot positions. Analog I/O modules such as the 1769-IF4 analog input module and 1769-OF2 analog output module are likewise supported without rewiring, provided the field wiring terminations are preserved. This wiring compatibility is one of the primary advantages of staying within the 1769 Compact I/O ecosystem during a controller upgrade.

For facilities that rely on legacy serial communication to third-party devices — such as variable frequency drives, SCADA gateways, or weighing systems — the 1769-ASCII serial communication module or a 1769-SM2 serial module can be added to the local I/O bank to bridge legacy RS-232/RS-485 protocols into the EtherNet/IP environment managed by the 1769-L30ER. This eliminates the need to replace field devices that are still functional but lack native EtherNet/IP support.

Where the legacy system included a PanelView Plus 6 or PanelView Plus 7 HMI, the 1769-L30ER communicates natively over EtherNet/IP using CIP messaging, so existing FactoryTalk View ME applications can typically be reused with minimal tag remapping. If the HMI was connected via a legacy DH+ or DF1 serial link, a 1761-NET-ENI EtherNet/IP adapter or a protocol gateway can be used to bridge the connection during a phased migration, avoiding a full HMI replacement in the first cutover window.

For motion control applications, the 1769-L30ER supports CIP Motion over EtherNet/IP, enabling direct integration with Kinetix 5500 or Kinetix 5700 servo drives without requiring a dedicated motion network. If the legacy system used older Ultra 3000 or Kinetix 6000 drives on a SERCOS interface, a drive upgrade to the Kinetix 5500 series — combined with the 1769-L30ER — provides a fully integrated, single-network motion and logic architecture that simplifies both programming and diagnostics.

Retrofit Guidance FAQ

Q: Can I reuse my existing 1769 Compact I/O wiring during the controller swap?
A: Yes. The 1769-L30ER uses the same 1769 Compact I/O bus connector and backplane interface as previous CompactLogix L3 controllers. Field wiring connected to 1769 I/O modules does not need to be disturbed. Only the controller module itself is replaced on the DIN rail.

Q: Do I need to convert my RSLogix 5000 program to Studio 5000?
A: If your existing program was created in RSLogix 5000 v20 or earlier, it must be opened and saved in Studio 5000 Logix Designer v21 or later before downloading to the 1769-L30ER. The conversion process is straightforward and preserves all ladder logic, function block diagrams, and tag databases. A full offline simulation is recommended before the live cutover.

Q: Is the EtherNet/IP IP address configuration compatible with my existing network?
A: The 1769-L30ER supports both DHCP and static IP assignment. If the legacy controller had a fixed IP address, the same address can be assigned to the replacement unit via the rotary switches on the front of the module or through Studio 5000. No network infrastructure changes are required.

Q: What is the physical installation space requirement?
A: The 1769-L30ER occupies the same DIN rail slot width as other CompactLogix 5370 L3 controllers. No cabinet modification, additional rail space, or new mounting hardware is required for a like-for-like replacement. The dual EtherNet/IP ports are located on the front face of the module, maintaining the same cable routing as single-port predecessors.

Q: Can the 1769-L30ER communicate with legacy Modbus RTU devices on the plant floor?
A: The 1769-L30ER does not natively support Modbus RTU. However, a 1769-ASCII module combined with a Modbus RTU driver in Studio 5000, or a dedicated Modbus-to-EtherNet/IP gateway, provides a reliable bridge. This approach is commonly used in retrofit projects where legacy instrumentation or drives use Modbus RTU as their primary protocol.

Q: How long does a typical cutover take on-site?
A: For a direct controller replacement with no I/O changes, most experienced engineers complete the physical swap, program download, and initial I/O verification within a 4–8 hour planned maintenance window. Systems with motion axes or safety I/O may require additional commissioning time for axis tuning and safety function verification.

Warranty Assurance

Every Allen-Bradley 1769-L30ER unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection that includes power-on verification, communication port testing, and firmware version confirmation. Units are shipped in original or equivalent protective packaging to prevent transit damage.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned item. Our technical support team is available to assist with installation queries, compatibility verification, and commissioning guidance via email at [email protected] or by phone at +86 18359293191. Response time for warranty and technical inquiries is typically within one business day.

Stock availability is maintained for the 1769-L30ER and related 1769 Compact I/O components. Orders confirmed before 3:00 PM CST on business days are processed for same-day dispatch. International shipments are supported with full export documentation, including commercial invoice, packing list, and certificate of origin where required.

Purchasing the 1769-L30ER from TOPNLMS provides industrial buyers with a reliable, tested, and warranted replacement solution backed by a specialist industrial automation parts supplier with direct sourcing from authorized distribution channels.
