Allen-Bradley 1769-L24ERQBFC1B Replacement for CompactLogix 5370 L2: Smooth Migration & Legacy System Upgrade

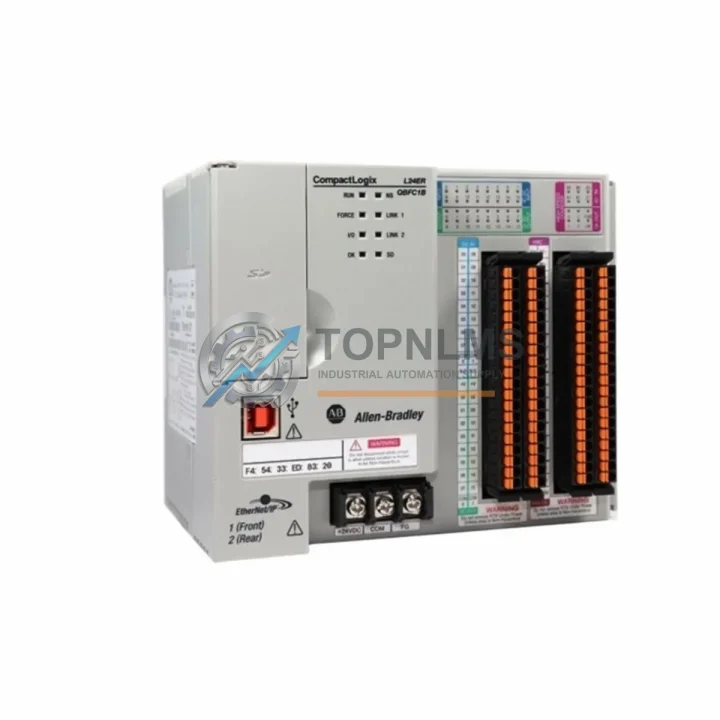

The Allen-Bradley 1769-L24ERQBFC1B is a CompactLogix 5370 L2 series programmable logic controller (PLC) designed for mid-range discrete and process control applications. As Rockwell Automation continues to evolve its control platform portfolio, many facilities running legacy CompactLogix 5370 L1 and L2 controllers — including the 1769-L16ER-BB1B, 1769-L18ER-BB1B, and 1769-L27ERM-QBFC1B — are now planning structured migration paths to maintain production continuity and reduce unplanned downtime risk.

TOPNLMS maintains verified stock of the 1769-L24ERQBFC1B to support both emergency replacement and planned upgrade projects. Each unit is tested prior to shipment and backed by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy CompactLogix L1 or L2 system to the 1769-L24ERQBFC1B typically involves more than a controller swap. In practice, field engineers coordinate the replacement of several interconnected components to ensure wiring integrity, communication continuity, and cabinet space compliance.

On the I/O side, existing 1769-IQ16 digital input modules and 1769-OB16 digital output modules mounted on the same 1769 backplane remain fully compatible with the L24ERQBFC1B, eliminating the need for I/O rewiring in most retrofit scenarios. Analog signal chains using 1769-IF4 or 1769-OF4 modules similarly retain their wiring and channel configuration, which significantly reduces commissioning time on the plant floor.

For communication infrastructure, the dual EtherNet/IP ports on the 1769-L24ERQBFC1B support Device Level Ring (DLR) topology, allowing direct integration with existing 1734 POINT I/O adapter nodes and 1756-EN2T ControlLogix bridge modules without protocol conversion. Sites running PROFIBUS DP or DeviceNet legacy fieldbus segments can retain those networks by connecting through a 1769-SDN DeviceNet scanner or a 1788-EN2DN linking device, preserving the existing field device wiring.

Power distribution within the control cabinet typically requires no modification. The 1769-L24ERQBFC1B operates on 24 VDC supplied by standard 1606-XLP series or equivalent SELV-rated power supplies already common in CompactLogix panel builds. If the legacy system used a 1769-PA4 or 1769-PB4 power supply module, these remain compatible on the same backplane segment.

For programming and firmware migration, the controller is fully supported by Studio 5000 Logix Designer v21 and above. Existing RSLogix 5000 project files from the predecessor controller can be imported, reviewed, and re-downloaded with minimal modification — typically limited to controller properties and task configuration updates. A standard 1784-U2DHP USB-to-DH+ programming cable or direct USB connection to the controller’s front port is sufficient for on-site commissioning.

Where HMI integration is required, the 1769-L24ERQBFC1B communicates natively with PanelView Plus 7 terminals and PanelView 800 graphic terminals over EtherNet/IP, preserving existing tag-based screen bindings in most FactoryTalk View ME projects. No gateway or protocol bridge is required for these HMI connections.

For applications requiring safety I/O integration, the controller supports CIP Safety over EtherNet/IP, enabling connection to 1791DS series safety I/O modules without a dedicated safety controller, which simplifies cabinet architecture in light safety applications.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a 1769-L18ER-BB1B with the 1769-L24ERQBFC1B?
A: Yes. The 1769 backplane pinout and I/O module interface are unchanged. Field wiring connected to 1769-series I/O modules does not need to be modified. Only the controller module itself is swapped.

Q: Is the existing Studio 5000 / RSLogix 5000 program compatible?
A: In most cases, yes. The project file can be opened in Studio 5000 Logix Designer, the target controller changed to the L24ERQBFC1B, and the program downloaded after a firmware version check. Tag structures, routines, and task configurations are preserved.

Q: What EtherNet/IP topology changes are required?
A: None in most installations. The dual EtherNet/IP ports support both linear and DLR topologies. If the legacy controller used a single-port configuration, the second port can be left unused or leveraged for network redundancy without additional hardware.

Q: Does the 1769-L24ERQBFC1B fit in the same DIN rail slot as the replaced controller?
A: The CompactLogix 5370 L2 series shares the same DIN rail mounting standard and backplane connector position as earlier L1/L2 variants. Physical fitment in existing control cabinets is confirmed for standard 1769 panel configurations.

Q: What communication protocols are supported for legacy fieldbus devices?
A: EtherNet/IP is the native protocol. DeviceNet and PROFIBUS DP legacy devices can be integrated via scanner modules (1769-SDN, 1788-EN2DN) without replacing field instruments or actuators.

Q: How long does commissioning typically take for a direct swap?
A: For a like-for-like controller replacement with an existing program backup, on-site commissioning typically takes 2–4 hours, including firmware update, program download, I/O verification, and communication testing.

Warranty Assurance

Every 1769-L24ERQBFC1B unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each controller undergoes functional verification including power-on testing, communication port check, and firmware version confirmation. Units are packaged in anti-static protective packaging with original or equivalent documentation.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement unit dispatch or full refund processing within agreed lead times. Our after-sales response team is reachable via email and phone for technical pre-sales consultation, compatibility verification, and post-delivery support.

For procurement teams managing planned maintenance windows or emergency breakdown replacements, TOPNLMS maintains buffer stock of the 1769-L24ERQBFC1B and related 1769-series components to support same-week dispatch for qualified orders. Volume pricing and consignment arrangements are available for MRO and OEM customers.
