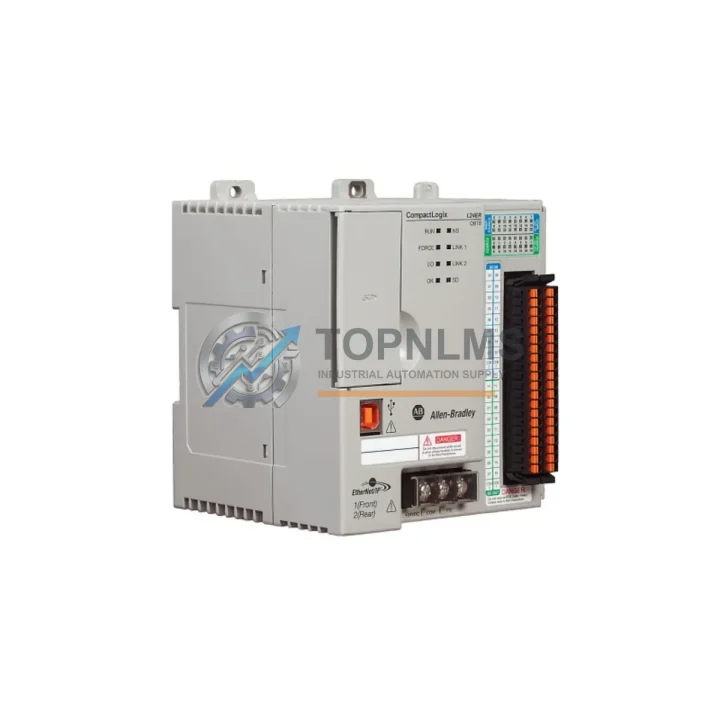

Allen-Bradley 1769-L24ER-QBFCIB Ruggedized PLC Controller

Product Overview

Allen-Bradley 1769-L24ER-QBFCIB Ruggedized PLC Controller: Industrial Resilience for Harsh Environments

The Allen-Bradley 1769-L24ER-QBFCIB is a CompactLogix 5370 L2 series programmable logic controller engineered to deliver uncompromising performance in the most demanding industrial environments. Designed by Rockwell Automation, this controller integrates dual EtherNet/IP ports, onboard I/O, and a high-speed processor into a compact, DIN-rail-mountable form factor — making it the preferred choice for engineers who cannot afford downtime in continuous production lines, hazardous-area installations, or heavy-industry control cabinets.

Whether deployed in oil and gas wellhead automation, mineral processing plants, municipal water treatment facilities, or steel mill rolling lines, the 1769-L24ER-QBFCIB is built to sustain reliable operation under extreme thermal cycling, high-humidity condensation, airborne particulate contamination, mechanical vibration, and broadband electromagnetic interference. Its sealed housing and conformal-coated PCB assemblies resist corrosive atmospheres, while its wide operating temperature range ensures stable logic execution from sub-zero cold-start conditions to high-ambient heat zones adjacent to furnaces or compressors.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1769-L24ER-QBFCIB does not operate in isolation — it anchors a broader control architecture that must remain cohesive under field stress. In a typical CompactLogix control cabinet, the controller works in concert with 1769-IQ16 digital input modules and 1769-OB16 digital output modules to handle high-density field signal termination without introducing ground loops or cross-talk. For analog process variables such as pressure, temperature, and flow, the 1769-IF4 analog input module provides 16-bit resolution with channel-to-channel isolation, ensuring measurement integrity even in electrically noisy environments near variable-frequency drives or large motor starters.

Power integrity is equally critical. The 1769-PB4 power supply module delivers regulated 24 VDC bus power to the local I/O bank, while an upstream 1606-XLP72E SITOP-class industrial power supply — or equivalent Allen-Bradley 1606 series unit — conditions incoming AC mains and suppresses conducted transients before they reach the controller backplane. For installations in areas with significant surge exposure, a dedicated 1783-ETAP EtherNet/IP tap or an industrial-grade surge protection device on each EtherNet/IP port prevents transient-induced port damage that could interrupt supervisory communications.

Safety-rated installations often pair the 1769-L24ER-QBFCIB with a GuardLogix 1756-L71S safety controller in a coordinated safety architecture, where the CompactLogix handles standard process control while the GuardLogix manages SIL 2 or SIL 3 safety functions such as emergency stop, light curtain monitoring, and safety gate interlocks. Communication between the two controllers traverses the same EtherNet/IP backbone using CIP Safety protocol, eliminating the need for dedicated safety fieldbus wiring. For remote I/O expansion beyond the local chassis, 1734 POINT I/O modules mounted on distributed panels connect back to the 1769-L24ER-QBFCIB via EtherNet/IP adapter, extending the control reach across large plant footprints without running parallel home-run cables.

Terminal connectivity within the control cabinet is typically handled by 1492-CABLE pre-wired interface cables or Phoenix Contact or Weidmüller DIN-rail terminal blocks, both of which support vibration-resistant screw or spring-clamp termination suitable for mobile equipment and high-vibration machinery. For network-layer redundancy in critical infrastructure, a 1783-RMS06T managed Ethernet switch provides IGMP snooping, VLAN segmentation, and port-level diagnostics that protect the EtherNet/IP control network from broadcast storms originating in the enterprise IT layer.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1769-L24ER-QBFCIB controls wellhead Christmas tree valve sequencing, compressor station start/stop logic, and pipeline pig launcher/receiver interlocks. Its dual EtherNet/IP ports enable a Device-Level Ring (DLR) topology that maintains control continuity even if a single cable segment is severed — a common failure mode in outdoor installations subject to excavation damage or rodent intrusion.

In mining and mineral processing, the controller manages conveyor belt sequencing, crusher feed rate control, and flotation cell reagent dosing. The wide operating temperature range accommodates both underground mine environments — where ambient temperatures can be elevated by geothermal heat — and open-pit surface installations exposed to direct solar radiation and sub-zero overnight temperatures.

Municipal and industrial water and wastewater treatment plants rely on the 1769-L24ER-QBFCIB for pump station control, chlorination dosing, and SCADA integration via EtherNet/IP to a central historian. The controller’s onboard analog I/O directly interfaces with 4–20 mA transmitters for turbidity, pH, dissolved oxygen, and flow measurement without requiring additional signal conditioning modules in simple installations.

In power generation and electrical substations, the controller participates in load-shedding schemes, generator synchronization sequences, and transformer protection coordination. Its CE and UL certifications satisfy the compliance requirements of utility-grade installations, while its compact footprint allows integration into existing relay panels with minimal modification.

Metallurgical and steel mill applications subject the controller to intense electromagnetic interference from arc furnaces, induction heaters, and large DC drives. The 1769-L24ER-QBFCIB’s IEC 61000-4 series immunity ratings — covering electrostatic discharge, radiated RF, electrical fast transient, surge, and conducted disturbance — ensure that control logic remains deterministic even in these electromagnetically hostile environments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every 1769-L24ER-QBFCIB shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects, functional failures under normal operating conditions, and firmware-related malfunctions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Warranty claims are processed within 5 business days of receiving the returned unit, and a replacement is dispatched immediately upon fault confirmation to minimize your plant downtime.

Q2: How is each unit tested before shipment?
All units undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional test verifying processor boot, I/O channel continuity check, EtherNet/IP port link verification, and firmware version confirmation against the original factory specification. Units that fail any stage are quarantined and not shipped. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the 1769-L24ER-QBFCIB compatible with my existing CompactLogix or Studio 5000 project?
Yes. The 1769-L24ER-QBFCIB is fully compatible with Studio 5000 Logix Designer v21 and later. Existing ACD project files developed for other CompactLogix 5370 L2 controllers can be retargeted to this model with minimal revision. The controller also supports all standard 1769 Compact I/O modules, so your existing I/O wiring and module configuration remain valid. For mixed-generation installations, backward compatibility with RSLogix 5000 v20 is maintained.

Q4: Can TOPNLMS guarantee long-term supply and support for this model?
TOPNLMS maintains dedicated stock of the 1769-L24ER-QBFCIB and its associated CompactLogix 5370 L2 series components to support both planned maintenance schedules and emergency breakdown replacements. We provide sourcing continuity planning for customers managing multi-year maintenance contracts, and can advise on approved migration paths to newer CompactLogix 5380 series controllers when lifecycle end-of-sale timelines require forward planning. Contact our technical team for volume pricing, lead-time commitments, and consignment stock arrangements.
