Allen-Bradley 1769-L23-QBFC1B Ruggedized Packaged Controller

Product Overview

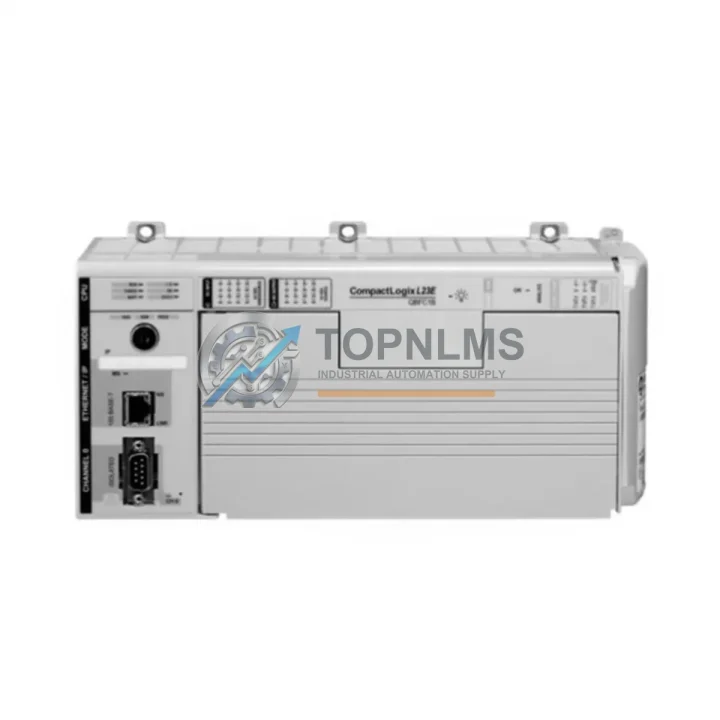

Allen-Bradley 1769-L23-QBFC1B Ruggedized CompactLogix Packaged Controller: Industrial Resilience for Harsh Environments

The Allen-Bradley 1769-L23-QBFC1B is a CompactLogix Packaged Controller engineered by Rockwell Automation to deliver uncompromising reliability in the most demanding industrial environments. Combining an integrated PLC processor, EtherNet/IP communication port, discrete I/O, and analog I/O into a single compact housing, this packaged controller eliminates the need for multiple separate modules while maintaining the full power of the Logix control platform. Whether deployed on a continuous production line, inside a sealed control cabinet in a petrochemical facility, or mounted in a vibration-prone mining enclosure, the 1769-L23-QBFC1B is built to sustain stable, uninterrupted operation where lesser controllers fail.

Designed to operate across a wide temperature range and resist the effects of humidity, airborne particulates, and electromagnetic interference, this controller meets the rigorous demands of industries where downtime is not an option. Its compact DIN-rail-mountable form factor integrates seamlessly into existing 1769 CompactLogix system architectures, making it an ideal drop-in replacement or upgrade for aging control infrastructure. The onboard EtherNet/IP port enables real-time communication with SCADA systems, HMIs, and upstream MES platforms without requiring an additional communication module, reducing panel complexity and potential failure points.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the 1769-L23-QBFC1B rarely operates in isolation. It serves as the central intelligence of a broader system where every connected component must match its reliability standard. In high-vibration environments such as compressor stations or heavy press lines, the controller is typically paired with 1769-IQ16 discrete input modules and 1769-OB16 transistor output modules to expand field I/O capacity without sacrificing the compact footprint. For analog signal conditioning in process-intensive applications, the 1769-IF4 analog input module and 1769-OF2 analog output module extend the controller’s native analog capability to handle 4–20 mA and 0–10V process signals from field transmitters and control valves.

Communication integrity in electrically noisy environments is maintained through the 1769-L23-QBFC1B’s onboard EtherNet/IP port, which connects to managed industrial Ethernet switches and upstream SCADA or DCS platforms. In facilities where legacy serial networks remain in service, the 1761-NET-AIC Advanced Interface Converter bridges DF1 and DH-485 protocols, preserving backward compatibility with existing field devices. For safety-critical zones requiring SIL-rated protection, the controller is commonly integrated alongside GuardLogix safety controllers and 1791DS safety I/O modules, forming a layered safety architecture that satisfies IEC 62061 and ISO 13849 requirements.

Power quality is a frequent concern in heavy industrial sites. The 1769-L23-QBFC1B is typically powered by a 1606-XLP72E industrial power supply, which provides regulated 24V DC with wide-range AC input and built-in surge protection. In control cabinets where multiple drives and relay outputs generate conducted emissions, the addition of 700-HLT1Z24 relay modules and 1492-J terminal blocks ensures clean signal segregation and reliable field wiring termination. Variable frequency drives such as the PowerFlex 525 or PowerFlex 755 are routinely controlled via EtherNet/IP from this packaged controller, enabling coordinated motor speed regulation across conveyor systems, pump stations, and fan arrays.

Application in Critical Infrastructure

The 1769-L23-QBFC1B has established a strong operational record across critical infrastructure sectors where control system failures carry severe safety and financial consequences. In upstream oil and gas facilities, it manages wellhead automation, separator control, and emergency shutdown sequencing, operating reliably in ambient temperatures that fluctuate between sub-zero nights and high-heat daytime conditions. Its resistance to hydrogen sulfide-laden atmospheres and its sealed I/O termination design make it a preferred choice for remote unmanned stations where maintenance access is infrequent.

In underground mining operations, the controller withstands constant mechanical vibration from drilling and blasting cycles while maintaining precise control of conveyor belt drives, ventilation fan systems, and dewatering pump stations. Its compact packaged design reduces the panel footprint in space-constrained underground electrical rooms. Power generation and substation automation applications leverage the controller’s EtherNet/IP connectivity to integrate with energy management systems, enabling real-time monitoring of generator output, transformer load, and switchgear status.

Water and wastewater treatment plants deploy the 1769-L23-QBFC1B to automate dosing pump sequences, clarifier drives, and UV disinfection systems, where the controller’s analog I/O handles continuous process variable feedback from flow meters, pH sensors, and turbidity analyzers. In steel mills and aluminum smelters, the controller coordinates rolling mill drives, cooling water systems, and furnace temperature control loops, operating continuously in environments where ambient temperatures regularly exceed 50 °C and airborne metallic dust is a persistent contamination risk.
