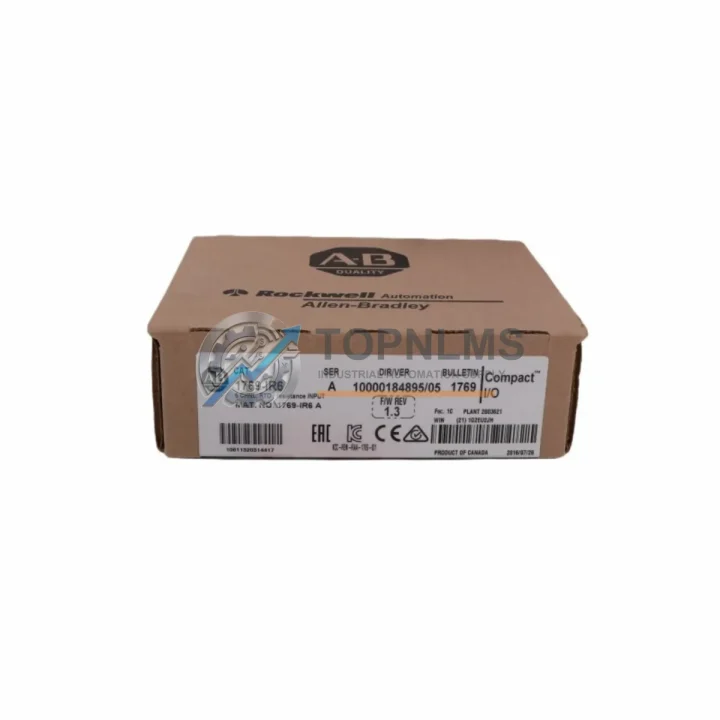

Allen-Bradley 1769-IR6 Replacement/Upgrade for CompactLogix

Product Overview

Allen-Bradley 1769-IR6 Replacement/Upgrade Solution for CompactLogix: Smooth Transition from Legacy RTD Systems

The Allen-Bradley 1769-IR6 is a 6-channel RTD/Resistance input module designed for the CompactLogix 1769 Series platform. As legacy control systems age and original modules reach end-of-life or become increasingly difficult to source, facilities running 1769-series I/O racks face growing pressure to secure reliable replacements without disrupting production. This listing provides a verified, tested 1769-IR6 module ready for direct drop-in replacement or structured upgrade within your existing CompactLogix architecture — minimizing downtime, preserving wiring infrastructure, and protecting your automation investment.

The 1769-IR6 accepts inputs from a wide range of RTD types including Pt100, Pt1000, Ni120, and Cu10, as well as direct resistance measurement. Each of the six channels is individually configurable, allowing engineers to retain existing sensor wiring without modification during a like-for-like swap. The module mounts directly onto the 1769 compact I/O bus and communicates natively with CompactLogix controllers such as the 1769-L30ER, 1769-L33ER, and 1769-L36ERM via the standard backplane interface — no additional communication configuration is required when replacing a failed unit in an existing rack.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1769-IR6 migration rarely involves a single module in isolation. In most CompactLogix retrofit projects, the RTD input module works alongside a broader set of 1769-series I/O components that may also require attention. During the upgrade process, engineers commonly evaluate the condition of adjacent analog output modules such as the 1769-OF4, which handles 4-channel analog voltage/current output and shares the same compact I/O bus. Digital I/O expansion is typically handled by modules like the 1769-IQ16 (16-channel DC input) or 1769-OB16 (16-channel DC output), both of which can be inspected and replaced in the same maintenance window without controller downtime if hot-swap procedures are followed.

For systems where the CompactLogix controller itself — such as a 1769-L30ER or 1769-L33ER — is approaching firmware end-of-support, the 1769-IR6 replacement is an ideal entry point for a phased modernization. The 1769 power supply module (1769-PA2 or 1769-PB2) should be verified for adequate current budget when adding or replacing I/O modules in the rack, as cumulative draw from RTD channels can affect rail stability in dense configurations.

Communication infrastructure is equally important. If your facility relies on DeviceNet or ControlNet legacy networks feeding into the CompactLogix system, a 1769-SDN scanner module or 1769-ACN15 ControlNet adapter may already be present in the rack. These modules are unaffected by the 1769-IR6 swap but should be documented as part of the overall system audit. For EtherNet/IP-based architectures, the controller’s onboard Ethernet port handles all I/O communication, and no additional network module is required.

In control cabinet environments where space is constrained, the 1769-IR6’s single-slot form factor is a significant advantage over older multi-slot analog input solutions. Engineers migrating from legacy SLC 500 or MicroLogix platforms to CompactLogix will find that the 1769-series I/O system offers a more compact footprint while delivering superior resolution and channel isolation. Terminal block wiring from the 1769-TBXL or 1769-TBNH removable terminal bases can be pre-wired and swapped without disturbing field cables, further reducing installation time during planned shutdowns.

Retrofit Guidance FAQ

Q: Do I need to modify existing field wiring when replacing a failed 1769-IR6?
A: No. The 1769-IR6 uses the same terminal base and wiring pinout as the original module. For a direct like-for-like replacement, existing RTD sensor cables connect without modification.

Q: Will my Studio 5000 / RSLogix 5000 program require changes?
A: For a direct replacement of the same catalog number, no program changes are required. The module profile, tag structure, and I/O tree remain identical. If upgrading from an older series revision, verify the module profile version in your project matches the installed firmware.

Q: Is the 1769-IR6 compatible with EtherNet/IP communication?
A: Yes. The module communicates via the CompactLogix backplane, and all I/O data is accessible over EtherNet/IP through the controller’s onboard port. No separate communication module is needed for the RTD input data.

Q: What if my rack has limited physical space?
A: The 1769-IR6 occupies a single slot in the 1769 compact I/O bus. Its footprint is identical to the original, so no cabinet re-layout is required. Ensure the end cap (1769-ECR or 1769-ECL) is properly seated after installation.

Q: Can this module replace RTD inputs from a legacy SLC 500 or PLC-5 system?
A: Not as a direct electrical replacement, but as part of a platform migration to CompactLogix, yes. A migration project would involve remapping I/O addresses and updating the control program, which is standard practice for SLC 500 to CompactLogix conversions.

Q: How do I verify the module is functioning correctly after installation?
A: Use RSLogix 5000 or Studio 5000 to go online with the controller, navigate to the I/O tree, and confirm the 1769-IR6 shows a green status indicator. Channel data should appear in the input tags immediately upon successful backplane communication.

Warranty Assurance

Every 1769-IR6 module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including backplane communication check, channel integrity test, and visual inspection for physical damage. Modules are packaged in anti-static protective packaging suitable for international freight.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement dispatch or full refund support. Our technical team responds to after-sales inquiries within 1 business day. We maintain stock of common 1769-series modules to support rapid replacement fulfillment for critical production environments.

For volume procurement, OEM integration projects, or urgent emergency orders requiring same-day processing, contact our sales team directly. We support purchase orders, proforma invoices, and standard B2B procurement workflows.
