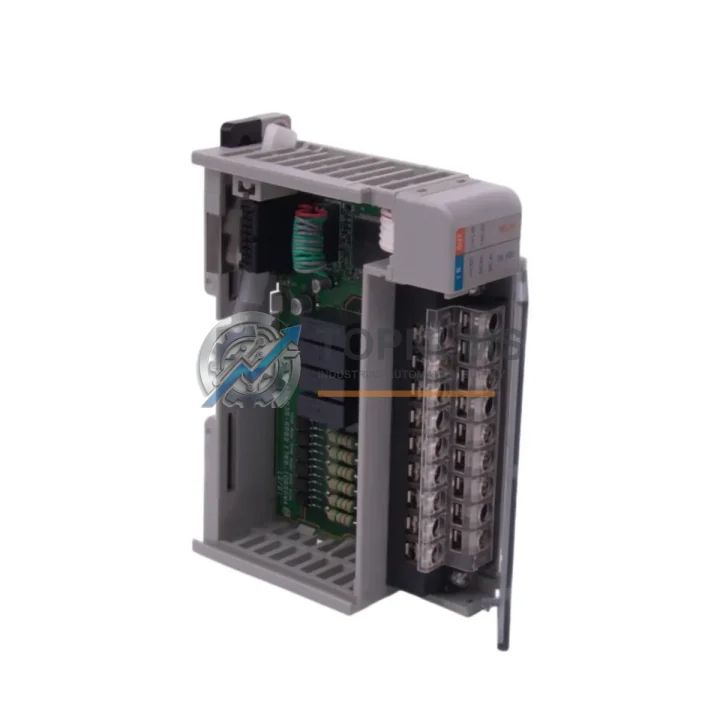

Allen-Bradley 1769-IQ6XOW4 Ruggedized Digital I/O Module

Product Overview

Allen-Bradley 1769-IQ6XOW4 Ruggedized Digital I/O Module for Harsh Environments

The Allen-Bradley 1769-IQ6XOW4 is a Compact I/O combination digital input/output module engineered by Rockwell Automation to deliver unwavering reliability in the most demanding industrial environments. Combining six 24V DC sink/source digital inputs with four relay output channels in a single compact footprint, this module is purpose-built for continuous-duty applications where downtime is not an option. Whether deployed on a high-temperature foundry floor, inside a dust-laden mining enclosure, or within a vibration-intensive offshore platform, the 1769-IQ6XOW4 maintains signal integrity and switching accuracy across the full operating temperature range of 0 °C to 60 °C, with storage ratings extending to −40 °C.

Designed to integrate seamlessly into the Allen-Bradley Compact I/O (1769) backplane architecture, the module communicates directly with MicroLogix 1500 and CompactLogix controllers — including the 1769-L30ER, 1769-L33ER, and 1769-L36ERM — without requiring additional interface hardware. Its relay output contacts are rated for both AC and DC loads, making it equally effective for controlling solenoid valves, motor starters, pilot lights, and safety interlock circuits in mixed-voltage control cabinets. The module’s isolated relay outputs provide an inherent barrier against inductive load transients, protecting upstream PLC logic from voltage spikes generated by contactors, relays, and variable-frequency drives operating in the same panel.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated Compact I/O control system, the 1769-IQ6XOW4 rarely operates in isolation. It is most commonly paired with the 1769-OW8 relay output module when additional discrete output channels are required for safety interlock expansion, and with the 1769-IQ16 16-point digital input module where high-density sensor monitoring is needed across conveyor lines or process skids. For analog process variables — temperature, pressure, and flow — the 1769-IF4 analog input module and 1769-OF2 analog output module complement the 1769-IQ6XOW4 within the same backplane, enabling a unified I/O architecture under a single CompactLogix controller such as the 1769-L33ER.

Power integrity is critical in harsh-environment panels. The 1769-PA2 or 1769-PB2 power supply modules provide stable 24V DC bus power to the entire 1769 backplane, ensuring that the 1769-IQ6XOW4’s input circuits and relay coils receive clean, regulated voltage even when heavy inductive loads switch on the same rail. For installations requiring network connectivity, the 1769-L30ER CompactLogix controller with its built-in EtherNet/IP port allows the 1769-IQ6XOW4’s I/O data to be accessed remotely via SCADA or DCS supervisory systems, supporting predictive maintenance and real-time diagnostics without interrupting production.

In safety-critical zones, the 1769-IQ6XOW4 is frequently installed alongside Allen-Bradley 440R series safety relays and 1791DS safety I/O modules, forming a layered protection architecture that satisfies SIL 2 application requirements. Communication modules such as the 1769-SDN DeviceNet scanner or 1769-ASCII serial interface module extend the system’s reach to field devices operating on legacy protocols, ensuring backward compatibility in brownfield plant upgrades.

Application in Critical Infrastructure

In oil and gas upstream facilities, the 1769-IQ6XOW4 is deployed within explosion-proof control cabinets to monitor wellhead valve position sensors and control emergency shutdown (ESD) solenoids. Its relay outputs provide the galvanic isolation required when interfacing PLC logic with high-voltage field actuators, preventing ground loops that could trigger spurious trips on safety instrumented systems. Offshore platforms particularly value the module’s vibration and humidity tolerance, which allows it to maintain reliable operation through wave-induced structural movement and salt-laden air ingress.

In underground mining operations, where coal dust and silica particulate create both explosion risk and accelerated component degradation, the 1769-IQ6XOW4 is housed in NEMA 4X or IP65-rated enclosures and used to control conveyor belt drives, ventilation fan starters, and dewatering pump contactors. Its wide operating temperature range accommodates the thermal cycling experienced as equipment moves between surface staging areas and deep-level working faces. Power generation facilities — including thermal, hydro, and wind — rely on the module for turbine auxiliary control, breaker status monitoring, and generator protection relay interfacing, where signal accuracy and contact reliability directly affect grid stability.

Water and wastewater treatment plants deploy the 1769-IQ6XOW4 to automate dosing pump sequencing, valve actuation, and level switch monitoring across multiple treatment stages. The module’s resistance to high-humidity environments and chemical vapors makes it well-suited for wet-well pump stations and chlorination buildings. In steel and aluminum smelting facilities, where electromagnetic interference from arc furnaces and induction heaters is severe, the module’s EMI immunity — validated to IEC 61000-4 standards — ensures that discrete I/O signals remain uncorrupted, preventing false actuations that could damage equipment or injure personnel.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 1769-IQ6XOW4?
All 1769-IQ6XOW4 modules supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, premature component failure, and functional non-conformance to published Allen-Bradley specifications. In the event of a warranty claim, TOPNLMS provides replacement or full refund after technical verification. Warranty service is supported by our engineering team reachable at [email protected].

Q2: How is each module tested before shipment?
Every 1769-IQ6XOW4 unit undergoes pre-shipment functional verification including input signal response testing across all six digital input channels, relay contact continuity and switching verification on all four output channels, backplane connector integrity inspection, and visual examination for physical damage or counterfeit indicators. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1769-IQ6XOW4 compatible with my existing CompactLogix or MicroLogix system?
Yes. The 1769-IQ6XOW4 is fully compatible with all 1769 Compact I/O backplane configurations and is recognized natively by RSLogix 500, RSLogix 5000, and Studio 5000 Logix Designer software without requiring additional EDS files or firmware updates. It operates alongside other 1769-series modules — including analog, specialty, and communication modules — on the same backplane without configuration conflicts. If you are upgrading from an older Series A unit, the module is drop-in compatible with no wiring changes required.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains buffer stock of high-demand Compact I/O modules including the 1769-IQ6XOW4 to support both planned maintenance schedules and emergency breakdown replacements. We offer expedited shipping to minimize plant downtime, with same-day dispatch available for in-stock items. For customers with critical infrastructure dependencies, we recommend establishing a standing supply agreement to guarantee allocation priority. Contact our team at [email protected] or +86 18359293191 to discuss volume pricing and reserved inventory arrangements.
