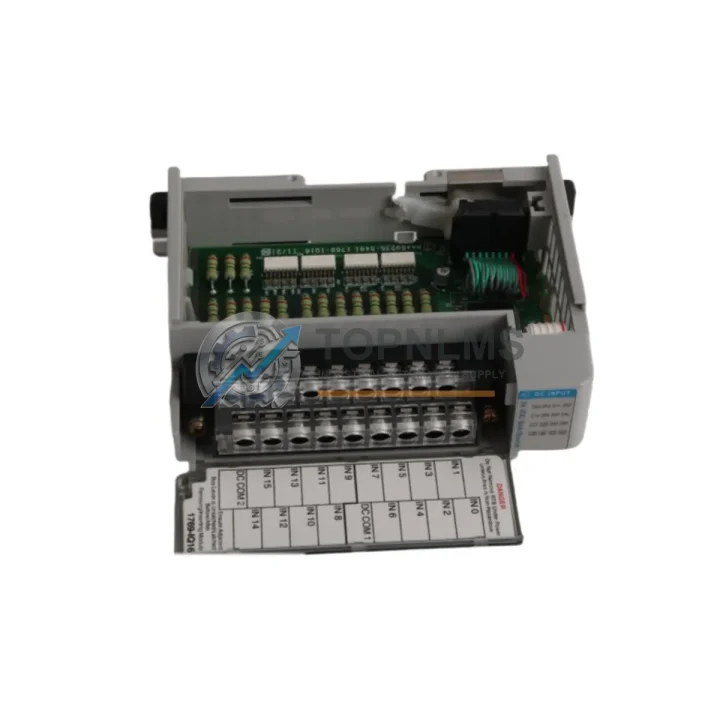

Allen-Bradley 1769-IQ16F Ruggedized Fast Digital Input Module

Product Overview

Allen-Bradley 1769-IQ16F Ruggedized Fast Digital Input Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1769-IQ16F is a high-speed, 16-point 24VDC digital input module engineered for the CompactLogix 1769 platform — one of Rockwell Automation’s most widely deployed control architectures in demanding industrial environments. Designed to deliver deterministic signal capture in applications where milliseconds matter, the 1769-IQ16F provides fast input response times that are critical for safety interlocks, high-speed conveyor control, press machinery, and precision motion sequencing. Whether deployed in a petrochemical plant, a mining hoist control panel, or a continuous steel rolling line, this module is built to maintain reliable operation where conventional I/O hardware fails.

In environments characterized by extreme temperature swings, persistent vibration, airborne particulate, high humidity, and intense electromagnetic interference (EMI), the 1769-IQ16F’s robust design ensures signal integrity is never compromised. Its compact 1769 bus-compatible form factor integrates seamlessly into existing CompactLogix control cabinets alongside modules such as the 1769-OB16 16-point digital output module, the 1769-IF4 analog input module, and the 1769-ECR right end cap — enabling a fully modular, scalable I/O architecture without additional wiring complexity.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1769-IQ16F does not operate in isolation — it is a critical node within a broader control architecture that must remain cohesive under industrial stress. In a typical CompactLogix control cabinet, this fast input module works in concert with the 1769-OB16 digital output module to form a complete discrete I/O layer, while the 1769-IF4 and 1769-OF4 analog modules handle process variable feedback from sensors and transmitters. The 1769-L33ER or 1769-L36ERM CompactLogix controller serves as the processing backbone, executing ladder logic and function block programs that rely on the fast, deterministic inputs delivered by the 1769-IQ16F.

For communication integrity in noisy industrial environments, the system is typically paired with the 1769-L19ER or connected via EtherNet/IP through a 1783-US5T Stratix managed switch, ensuring real-time data exchange between the PLC and SCADA systems without packet loss or latency spikes caused by EMI. Power stability is maintained through a dedicated 1769-PB4 power supply module, which provides regulated 24VDC to the I/O bus and protects downstream modules from voltage transients common in heavy industrial environments.

In safety-critical installations, the 1769-IQ16F is often deployed alongside GuardLogix 1756-L71S safety controllers or integrated with 1791DS Guard I/O safety modules to create a layered protection architecture. Relay output modules such as the 1769-OW8I provide galvanic isolation between the control logic and field devices, preventing fault propagation across the control cabinet. Terminal block assemblies and pre-wired cable systems further reduce installation errors and improve long-term maintainability in environments where access for re-wiring is limited.

Application in Critical Infrastructure

The Allen-Bradley 1769-IQ16F is a proven performer across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream operations, it monitors high-speed valve position feedback, emergency shutdown (ESD) signals, and wellhead sensor inputs where response latency directly impacts process safety. Its fast input capability ensures that safety interlock logic in the CompactLogix controller receives and acts on field signals within the required safety response time.

In mining and mineral processing, the module is deployed in hoist control systems, conveyor belt protection circuits, and crusher interlock panels — environments where vibration, dust ingress, and wide temperature variation are constant. The 1769-IQ16F’s robust backplane connection and industrial-grade input circuitry maintain signal fidelity even when the control cabinet is subject to continuous mechanical shock.

In power generation and electrical utilities, the module supports turbine control, generator protection relay feedback, and switchgear status monitoring. Its fast response time is essential for grid-connected applications where fault detection and isolation must occur within tight time windows to prevent cascading failures. Water treatment and wastewater facilities rely on the 1769-IQ16F for pump status monitoring, flow switch feedback, and chemical dosing interlock control — applications where continuous, uninterrupted operation is a regulatory requirement.

In metallurgy and heavy manufacturing — including steel rolling mills, aluminum smelters, and automotive stamping lines — the module handles high-cycle-rate position sensing, press safety gate monitoring, and robotic cell interlock signals. Its ability to capture fast, transient input signals without missing pulses makes it indispensable in high-throughput production environments where a missed input can result in equipment damage, product defects, or personnel injury.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1769-IQ16F?
Every 1769-IQ16F supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed promptly with replacement or repair options, minimizing your downtime exposure. Our warranty terms are documented and provided with each shipment.

Q2: How is each module tested before shipment?
All units undergo pre-shipment functional verification including power-on testing, input channel continuity checks, and backplane communication validation. Modules sourced from authorized distribution channels are inspected for firmware version compatibility and physical integrity. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1769-IQ16F compatible with my existing CompactLogix system?
The 1769-IQ16F is compatible with all CompactLogix 1769 bus-based controllers, including the L1x, L2x, L3x, L4x, L43, and L45 families. It is also backward-compatible with MicroLogix 1500 systems using the 1769 expansion I/O bus. Confirm your controller firmware version supports the module’s electronic keying profile — TOPNLMS technical support can assist with compatibility verification before purchase.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains stock of the 1769-IQ16F and related CompactLogix I/O modules to support both planned maintenance schedules and emergency breakdown replacements. We offer fast global shipping with DHL, FedEx, and UPS express options, with same-day dispatch available for in-stock items. For facilities managing aging CompactLogix installations, we can provide multi-unit procurement packages and consignment stock arrangements to ensure continuity of supply.
