Allen-Bradley 1769-IF16C Replacement for CompactLogix

Product Overview

Allen-Bradley 1769-IF16C Replacement for CompactLogix: Seamless Migration & Smooth Transition

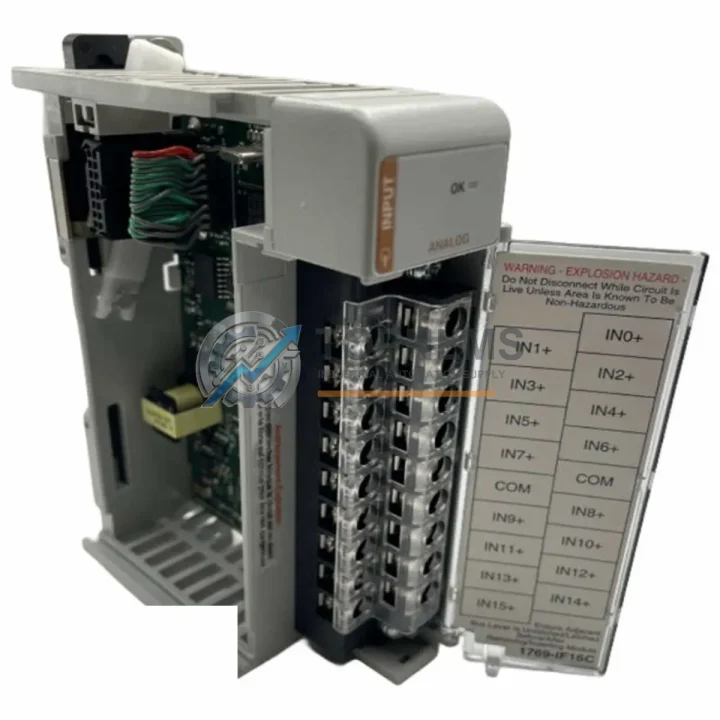

Upgrading or replacing the Allen-Bradley 1769-IF16C in an existing CompactLogix control system does not have to mean extended downtime or costly re-engineering. The 1769-IF16C is a 16-channel current analog input module designed for the CompactLogix 1769 bus, accepting 0–20 mA or 4–20 mA signals from field transmitters including pressure sensors, flow meters, and temperature transmitters. When the original module reaches end-of-life, becomes obsolete, or fails in service, a verified replacement unit restores full system functionality without requiring changes to the existing PLC program, field wiring, or control cabinet layout.

This replacement 1769-IF16C is sourced, tested, and shipped from our Xiamen warehouse. Each unit undergoes functional verification prior to dispatch and is covered by a 12-month warranty. We supply to OEMs, system integrators, and plant maintenance teams across Asia, Europe, and North America, with DHL Express and FedEx International Priority available for time-critical orders.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1769-IF16C replacement is rarely a single-module exercise. In most CompactLogix installations, the analog input module works alongside a broader set of components that must remain compatible throughout the migration. When replacing the 1769-IF16C, engineers typically review the adjacent 1769-OF8C analog output module to ensure the current loop integrity of the entire process control loop is maintained. On the digital side, the 1769-IQ16 16-channel DC input module and 1769-OB16 16-channel DC output module are common companions in the same 1769 expansion rack, and their terminal block wiring conventions are consistent with the IF16C, simplifying the overall field wiring audit.

Power distribution within the CompactLogix cabinet is managed through the 1769-PA2 or 1769-PB2 power supply modules. Before inserting the replacement 1769-IF16C, it is good practice to verify that the existing power supply has sufficient current budget for the full module complement, particularly if additional I/O modules have been added since the original system commissioning. The 1769-ECR right end cap and 1769-ECL left end cap must be correctly seated to complete the 1769 bus; a missing or damaged end cap will prevent the controller from recognizing any module in the expansion rack.

For systems where the CompactLogix controller itself is approaching obsolescence — for example, older 1769-L32E or 1769-L35E processors — a parallel migration path involves upgrading to a current-generation 1769-L33ER or 1769-L36ERM controller while retaining the existing 1769 I/O modules including the IF16C. This approach preserves the field wiring investment and allows the Studio 5000 Logix Designer project to be converted and validated offline before the cutover window. The 1756-ENBT or 1756-EN2T EtherNet/IP bridge modules used in larger ControlLogix backplanes are not required in a pure CompactLogix architecture, but they are frequently encountered in hybrid systems where the CompactLogix acts as a remote I/O adapter to a ControlLogix supervisory controller.

In process industries where HART-enabled field instruments are connected to the analog input channels, the 1769-IF16C supports HART pass-through when used with compatible CompactLogix firmware. If the existing installation uses a HART multiplexer or a dedicated HART interface module, no changes to the field instrument wiring are needed when swapping the module. For facilities that are simultaneously upgrading their HMI layer, the PanelView Plus 7 or PanelView 800 terminals communicate with the CompactLogix controller over EtherNet/IP and do not require reconfiguration when the underlying I/O module is replaced at the same address.

Retrofit Guidance FAQ

Q: Will my existing field wiring connect directly to the replacement module?
Yes. The 1769-IF16C uses a removable terminal block (RTB). The RTB from the original module can be unplugged and transferred directly to the replacement unit, preserving all field wiring connections without re-termination. This is the single most important time-saving step in a live replacement.

Q: Do I need to modify my Studio 5000 / RSLogix 5000 program?
No. The replacement module uses the same catalog number and module definition. The existing program, including all tag mappings, scaling parameters, alarm limits, and PID loop references, loads without modification. A simple online download or module re-initialization is sufficient after physical installation.

Q: Is the communication protocol compatible with my existing EtherNet/IP network?
Yes. The 1769-IF16C does not have an independent IP address; it communicates through the CompactLogix controller’s EtherNet/IP port. No network reconfiguration, IP address assignment, or switch port changes are required.

Q: Will the replacement module fit in the same physical slot in my control cabinet?
Yes. The replacement 1769-IF16C has an identical form factor to the original. It occupies the same slot position on the 1769 bus and requires no modification to DIN rail mounting, cable management, or cabinet door clearance.

Q: What if my system uses a mix of 1769 and 1756 ControlLogix modules?
The 1769-IF16C is a CompactLogix 1769-series module and is not directly interchangeable with 1756-series ControlLogix analog input modules such as the 1756-IF16. However, in hybrid architectures where a ControlLogix controller manages CompactLogix I/O via a 1769-ADN DeviceNet adapter or EtherNet/IP, the 1769-IF16C replacement is transparent to the supervisory controller and requires no changes at the ControlLogix level.

Q: How do I verify the module is functioning correctly after installation?
After installation, use Studio 5000 Logix Designer to go online with the controller and navigate to the module properties for the 1769-IF16C. Verify that all 16 channels report expected engineering unit values. Apply a known 4 mA and 20 mA test signal to one channel using a loop calibrator to confirm end-to-end accuracy before returning the system to automatic control.

Warranty Assurance

Every 1769-IF16C replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module is subjected to a functional test protocol that verifies backplane communication, channel-by-channel analog input accuracy, and power consumption within specification. Units that do not pass the outgoing inspection are not shipped.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit shipment within 3 business days of receiving the defective module and confirming the fault. For critical production environments where a spare-on-shelf strategy is required, we recommend purchasing one additional 1769-IF16C as a cold standby. Our sales team can advise on volume pricing for spares packages that include the IF16C alongside companion modules such as the 1769-OF8C and 1769-IQ16.

Orders are processed Monday through Saturday. Standard lead time for in-stock units is 1–3 business days for dispatch. Express shipping via DHL Express or FedEx International Priority is available for next-flight-out requirements. A packing list, commercial invoice, and certificate of conformance are included with every shipment to support customs clearance and incoming inspection procedures.
