Allen-Bradley 1769-IA16 Ruggedized AC Input Module for Harsh Environments

Product Overview

Allen-Bradley 1769-IA16 Ruggedized AC Input Module for Harsh Environments

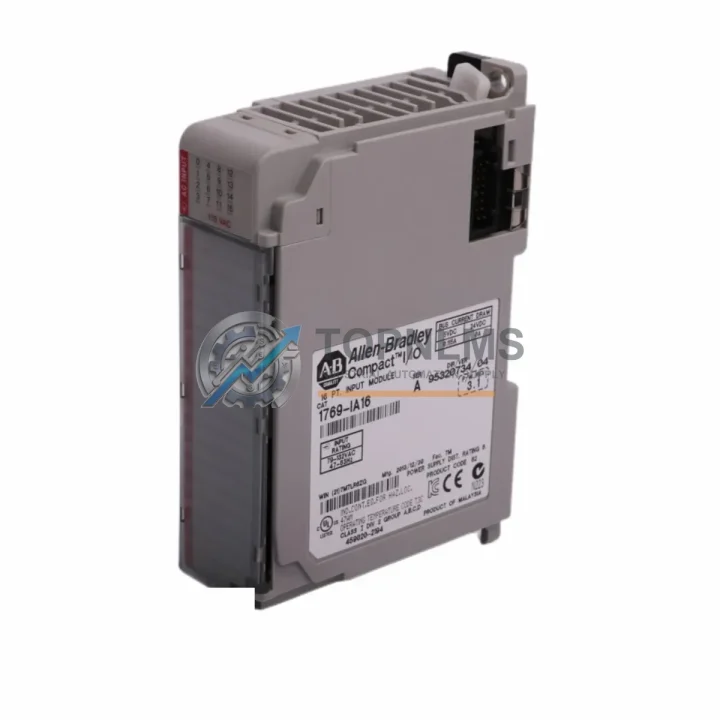

The Allen-Bradley 1769-IA16 is a 16-point, 120VAC digital input module engineered for the CompactLogix 1769 series platform — one of the most widely deployed PLC architectures in global industrial automation. Designed to deliver consistent, noise-immune signal acquisition in demanding production environments, the 1769-IA16 is a critical front-line component in control systems operating across high-temperature facilities, high-humidity process plants, dusty manufacturing floors, and electrically noisy heavy-industry sites.

Where signal integrity is non-negotiable — on continuous production lines, in chemical processing plants, or inside high-vibration machinery enclosures — the 1769-IA16 provides the reliable AC input conditioning that keeps your CompactLogix controller accurately reading field device states. Its robust design tolerates the electrical transients and EMI common in motor-heavy environments, ensuring that pushbuttons, limit switches, proximity sensors, and field contactors report their status without false triggering or signal dropout.

Rugged Specifications Table

Comprehensive Protection Solutions

In harsh industrial environments, no module operates in isolation. The 1769-IA16 is most effective when paired with a well-maintained and properly specified control system architecture. During scheduled maintenance or emergency replacement of this input module, experienced maintenance engineers routinely inspect the adjacent 1769-OB16 24VDC digital output module, which shares the same backplane bus and is subject to the same thermal and vibration stresses. Equally important is the condition of the 1769-L33ER or 1769-L30ER CompactLogix controller itself — the CPU that processes all input data from the 1769-IA16 and drives downstream control logic.

Power quality is a leading cause of premature module failure in AC input systems. The 1769-PA2 power supply module, which feeds the 1769 backplane, should be inspected for output voltage stability and ripple whenever an input module is replaced. In facilities with unstable grid power or frequent voltage sags — common in mining, steel, and cement plants — supplementing the system with an industrial UPS or line conditioner upstream of the control panel is strongly recommended.

For systems requiring analog process feedback alongside digital AC inputs, the 1769-IF4 analog input module is a frequent companion in the same CompactLogix rack, monitoring 4–20mA signals from pressure transmitters, flow meters, and temperature sensors. In high-EMI environments such as arc furnace facilities or variable-frequency drive (VFD) rooms, signal isolators installed between field devices and the 1769-IA16 input terminals significantly reduce noise-induced faults. The 1769-IQ16 24VDC digital input module is another common rack companion for DC-powered field devices operating alongside AC-powered sensors on the same machine.

Communication integrity is equally critical. The 1769-L33ER controller’s EtherNet/IP port connects the CompactLogix system to the plant SCADA or DCS network, and the network switch ports, patch cables, and managed switches feeding this connection should be verified during any module replacement event. In legacy installations, 1769-SDN DeviceNet scanner modules may also be present in the rack, bridging older field devices to the CompactLogix backbone.

Finally, terminal blocks and wiring infrastructure within the control cabinet deserve attention. Loose or corroded terminal connections on the 1769-IA16’s field wiring side are a common root cause of intermittent input faults that are misdiagnosed as module failure. Replacing aged terminal blocks, verifying torque on all field wire terminations, and inspecting cable entry glands for moisture ingress are standard best practices when servicing AC input modules in outdoor or high-humidity enclosures.

Application in Critical Infrastructure

The Allen-Bradley 1769-IA16 sees widespread deployment across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, CompactLogix systems equipped with 1769-IA16 modules monitor wellhead valve position feedback, emergency shutdown (ESD) pushbutton inputs, and motor run/fault status signals — all on 120VAC field wiring that must remain reliable in ambient temperatures exceeding 50°C and in the presence of hydrocarbon vapors.

In mining and mineral processing operations, the 1769-IA16 handles input signals from conveyor belt pull-cord switches, crusher overload contacts, and ventilation fan status relays. The module’s tolerance for vibration and its noise immunity make it well-suited to the electrically hostile environment of a concentrator plant or underground haulage control room.

In water and wastewater treatment facilities, the module monitors pump run/stop status, valve open/close feedback, and level switch inputs across pump stations that may be unmanned and subject to high humidity. Its ability to operate reliably at the low end of the 74VAC ON-state threshold accommodates the voltage drop common in long field cable runs between remote pump stations and the main control panel.

In power generation and electrical utilities, the 1769-IA16 is used in auxiliary control panels for turbine auxiliaries, transformer cooling systems, and switchgear control — environments where EMI from high-voltage switching events demands robust input filtering. In metallurgical and steel plants, the module’s operating temperature range and vibration resistance support reliable operation in rolling mill and continuous casting control systems where ambient conditions are extreme.

Across all these sectors, the availability of a tested, original 1769-IA16 spare module in the plant storeroom is a direct risk-mitigation measure. A single unplanned shutdown caused by a failed input module can cost tens of thousands of dollars per hour in lost production. Stocking one or two verified spare units eliminates this risk and supports rapid mean-time-to-repair (MTTR) targets.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 1769-IA16?
The 12-month warranty covers all functional defects in the module under normal operating conditions. If the unit fails to perform to Allen-Bradley specifications within the warranty period, we will arrange replacement or repair. Each unit is tested for basic functionality before shipment, and a test report is available upon request.

Q2: How do I verify compatibility with my existing CompactLogix system?
The 1769-IA16 is compatible with all 1769 CompactLogix controllers and expansion systems that support the 1769 I/O bus. Confirm your controller catalog number (e.g., 1769-L30ER, 1769-L33ER, 1769-L36ERM) and verify that your system has available I/O slots. The module occupies one slot on the 1769 backplane. No firmware changes are required — the controller auto-detects the module type on power-up.

Q3: What pre-shipment testing is performed on each unit?
Each 1769-IA16 unit undergoes visual inspection for physical damage, connector integrity verification, and functional power-on testing prior to dispatch. Units that do not pass inspection are not shipped. Packaging is anti-static and shock-resistant to protect the module during international transit.

Q4: Can you support long-term or repeat supply of the 1769-IA16 for ongoing maintenance programs?
Yes. We support blanket purchase orders and scheduled delivery programs for maintenance teams managing large CompactLogix installations. Contact us to discuss volume pricing, lead times, and consignment stocking arrangements tailored to your plant’s spare parts strategy.
