Allen-Bradley 1769-ASCII Ruggedized ASCII Interface Module

Product Overview

Allen-Bradley 1769-ASCII Ruggedized ASCII Interface Module: Industrial Resilience for Harsh Environments

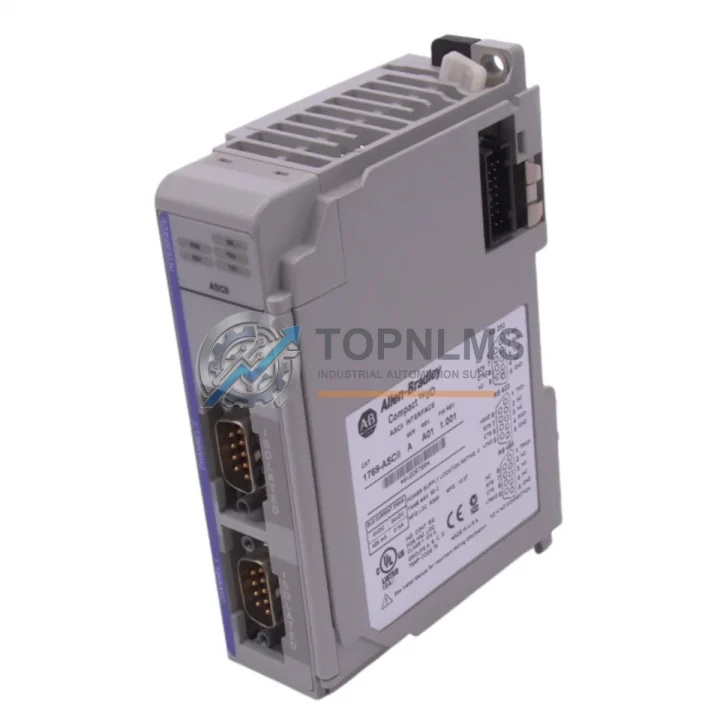

The Allen-Bradley 1769-ASCII is a dual-port RS-232C ASCII interface module engineered for the CompactLogix 1769 platform, delivering deterministic serial communication in the most demanding industrial environments. Designed to Rockwell Automation’s rigorous manufacturing standards, this module provides two independent RS-232C ports capable of handling ASCII protocol exchanges with barcode readers, weigh scales, printers, vision systems, and third-party serial devices — all without compromising the integrity of your control architecture.

In high-temperature foundries, dust-laden cement plants, vibration-intensive mining conveyors, and moisture-saturated water treatment facilities, the 1769-ASCII maintains stable, low-latency communication where lesser modules fail. Its compact 1769 single-slot form factor integrates directly into the CompactLogix backplane, eliminating the need for external serial converters and reducing potential failure points in your control cabinet.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1769-ASCII does not operate in isolation — it is a critical node within a broader CompactLogix control architecture. In a typical control cabinet deployment, it works alongside the 1769-L33ER CompactLogix controller, which serves as the primary logic engine coordinating all I/O and communication tasks. Power integrity is maintained by the 1769-PA2 power supply module, which delivers clean, regulated 5 VDC and 24 VDC rails to the backplane, protecting every module — including the 1769-ASCII — from voltage transients common in heavy industrial environments.

For digital field I/O, the 1769-IQ16 16-point 24 VDC digital input module and 1769-OB16 16-point digital output module handle discrete signals from sensors, limit switches, and actuators on the production floor. When analog process variables such as temperature, pressure, or flow rate must be monitored, the 1769-IF4 4-channel analog input module provides high-resolution signal conditioning directly on the same backplane.

In facilities where Ethernet-based supervisory control is required, the 1769-L30ER CompactLogix controller with embedded EtherNet/IP port can be paired with the 1769-ASCII to bridge legacy RS-232C serial devices into a modern EtherNet/IP network — a common requirement in oil and gas SCADA upgrades and water treatment plant modernization projects. For motion-critical applications, the Kinetix 5500 servo drive communicates over the same EtherNet/IP backbone, while the 1769-ASCII handles serial feedback from auxiliary encoders or HMI terminals.

Safety-rated installations may also incorporate the 1791DS-IB12 GuardLink safety I/O module alongside the 1769-ASCII, ensuring that serial communication faults do not propagate into safety-critical control loops. Terminal block assemblies such as the 1769-RTBN18 removable terminal block simplify field wiring and enable rapid module replacement without rewiring — a significant advantage during planned maintenance shutdowns in continuous-process industries.

Application in Critical Infrastructure

The Allen-Bradley 1769-ASCII has established a proven track record across the most demanding sectors of critical infrastructure:

Oil & Gas: On offshore platforms and onshore pipeline compression stations, the 1769-ASCII interfaces with gas chromatographs, flow computers, and custody transfer meters via RS-232C, feeding real-time measurement data into CompactLogix controllers for SCADA reporting. Its resistance to salt-laden air, wide temperature swings, and high-frequency vibration from rotating machinery makes it a preferred choice for remote wellhead automation panels.

Mining & Minerals Processing: In underground coal mines and open-pit copper operations, the module connects conveyor belt weighers, truck dispatch terminals, and crusher control panels to the PLC backbone. The sealed control cabinet environment protects the 1769-ASCII from coal dust and silica particulate, while its EMI immunity ensures reliable operation near high-power variable frequency drives controlling large mill motors.

Power Generation & Utilities: Thermal power plants and hydroelectric facilities use the 1769-ASCII to integrate legacy serial-based protection relays and metering equipment into modern DCS and SCADA architectures. Its deterministic ASCII protocol handling ensures that protection event data is captured and logged without communication latency that could compromise grid stability reporting.

Water & Wastewater Treatment: Municipal water authorities deploy the 1769-ASCII in pump station control panels to communicate with chlorine analyzers, turbidity meters, and SCADA RTUs. The module’s wide humidity tolerance and corrosion-resistant construction support reliable operation in wet, chemically aggressive environments typical of treatment plant electrical rooms.

Metallurgy & Steel: In electric arc furnace control systems and continuous casting lines, the 1769-ASCII bridges serial communication between pyrometers, ladle tracking systems, and the CompactLogix controller, maintaining production data integrity even in the presence of intense electromagnetic interference generated by high-current furnace transformers.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, contact us at [email protected] with your order number and a description of the fault. We will arrange a replacement or repair at no additional cost, including return shipping coordination for verified warranty claims.

Q2: How is each 1769-ASCII module tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection: visual inspection for physical damage, power-on functional verification of both RS-232C ports, backplane communication handshake testing, and firmware version confirmation. Modules that do not pass all test stages are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 1769-ASCII compatible with all CompactLogix controllers and Studio 5000 Logix Designer?
The 1769-ASCII is compatible with all 1769 CompactLogix controllers (1769-L23, L30, L31, L32, L33, L35, L43, L45 series) and is fully supported in RSLogix 5000 and Studio 5000 Logix Designer software. The module’s Add-On Profile (AOP) is available from Rockwell Automation’s product compatibility and download center. For specific firmware revision compatibility questions, our technical team can advise prior to purchase.

Q4: Can you guarantee long-term supply and support for discontinued or hard-to-find variants?
Yes. TOPNLMS maintains dedicated inventory of legacy and current-production Allen-Bradley 1769-series modules to support long-term plant maintenance programs. We understand that production lines cannot wait for extended lead times. Our stock is sourced through verified supply channels, and we can provide documentation of module provenance upon request. For large-quantity or scheduled blanket orders, contact us to discuss priority allocation and pricing.
