Allen-Bradley 1768-PA3 Replacement for CompactLogix 1768

Product Overview

Allen-Bradley 1768-PA3 Replacement for CompactLogix 1768: Smooth Transition, Zero Compromise on System Stability

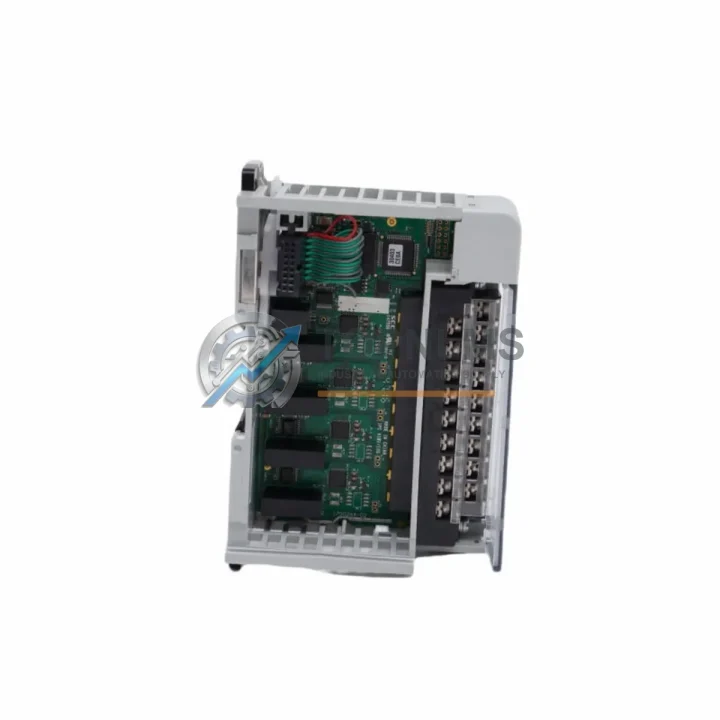

The Allen-Bradley 1768-PA3 is an AC input power supply module designed specifically for the CompactLogix 1768 Series control system platform. As Rockwell Automation continues to evolve its product portfolio, many facilities running legacy 1768-series architectures face the challenge of sourcing reliable, drop-in compatible power supply replacements without disrupting ongoing production. The 1768-PA3 remains one of the most critical components in these systems — supplying regulated DC power to the 1768 local expansion bus and ensuring stable operation of all connected I/O and communication modules.

Whether you are managing a planned upgrade, responding to an unexpected failure, or building a strategic spare parts inventory, sourcing a verified 1768-PA3 replacement is a time-sensitive decision. At TOPNLMS, every unit is sourced from authorized channels, individually tested prior to shipment, and backed by a 12-month warranty — giving your maintenance team the confidence to proceed with minimal risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 1768-PA3 is rarely an isolated task. In most CompactLogix 1768 control cabinets, the power supply works in close coordination with a range of other modules, and a thorough upgrade or migration plan should account for the health and compatibility of each. During a scheduled shutdown or emergency replacement, maintenance engineers typically inspect the 1768-L43 or 1768-L45 CompactLogix controller alongside the power supply — these processors share the same backplane and are subject to similar aging cycles in high-duty environments.

The 1769-IQ16 and 1769-OB16 digital I/O modules mounted on the 1769 Compact I/O expansion bus connected to the 1768 system should also be verified for proper operation after a PSU swap, as voltage fluctuations during failure events can stress I/O circuitry. Similarly, any installed 1768-ENBT EtherNet/IP communication module or 1768-CNB ControlNet bridge module should be inspected for firmware currency and connector integrity — communication modules are often overlooked during power supply replacements but are equally critical to system uptime.

If your facility is migrating from an older SLC 500 or PLC-5 architecture to the CompactLogix 1768 platform, the transition typically involves replacing 1746-series I/O modules and updating terminal wiring to match the 1769 Compact I/O form factor. In these scenarios, 1492-AIFM analog interface modules and 1492-IFM digital interface modules serve as wiring simplification tools that reduce cabinet rework time significantly. A 1784-U2DHP USB-to-DH+ programming cable or 1761-CBL-PM02 RS-232 cable may also be required for initial controller configuration and program verification after hardware replacement.

For facilities managing mixed-generation control cabinets, stocking the 1768-PA3 alongside compatible spare processors and I/O modules as a coordinated spare kit is a proven strategy to reduce mean time to repair (MTTR) and avoid cascading downtime caused by sequential component failures.

Retrofit Guidance FAQ

Q1: Can I replace the 1768-PA3 without modifying the existing wiring or controller program?
Yes. The 1768-PA3 is a direct slot-in replacement for the CompactLogix 1768 power supply position. No wiring changes to the AC input terminals or backplane connectors are required for a same-model swap. The controller program and I/O configuration remain unaffected. Ensure the system is de-energized and lockout/tagout procedures are followed before removal.

Q2: Is the 1768-PA3 compatible with both EtherNet/IP and ControlNet communication modules in the same chassis?
Yes. The 1768-PA3 supplies power to the 1768 local expansion bus regardless of which communication modules are installed. Whether your system uses a 1768-ENBT for EtherNet/IP or a 1768-CNB for ControlNet, the power supply operates transparently at the infrastructure layer and does not require protocol-specific configuration.

Q3: What physical space and mounting requirements should I verify before installation?
The 1768-PA3 occupies the dedicated left-side power supply slot of the 1768 chassis — it does not consume a standard I/O or controller slot. Verify that the chassis model is 1768-A10 or compatible, and that the existing DIN rail or panel mounting hardware is intact. No additional clearance beyond standard CompactLogix cabinet spacing is required.

Q4: How does TOPNLMS verify unit functionality before shipment?
Every 1768-PA3 unit undergoes bench-level power-on testing to verify AC input acceptance across the rated voltage range and DC output stability under load. Units are inspected for physical integrity, connector condition, and label legibility. A test report summary is available upon request. All units ship with a 12-month warranty covering functional defects, with replacement support coordinated through our technical team.

Warranty Assurance

TOPNLMS provides a 12-month warranty on all Allen-Bradley 1768-PA3 units from the date of shipment. This warranty covers functional failures under normal operating conditions and includes direct replacement support without requiring return-to-manufacturer authorization. Our technical team responds to warranty claims within one business day, and replacement units are dispatched with priority shipping to minimize your facility’s exposure to downtime.

Prior to shipment, each unit is individually tested for electrical performance and physical condition. Packaging is designed to meet industrial transit standards, with anti-static protection and impact-resistant outer cartons. Express shipping options are available for urgent replacement scenarios, with tracking provided from dispatch to delivery.

For procurement teams managing multi-site operations or building strategic spare inventories, volume pricing and consolidated shipment arrangements are available. Contact our team to discuss lead times, documentation requirements, and customs compliance for international orders.
