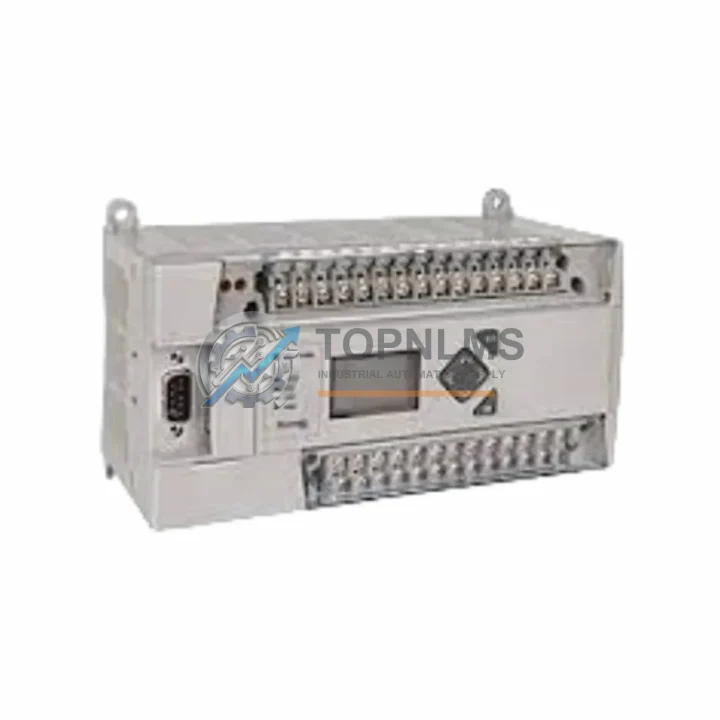

Allen-Bradley 1766-L32BWA MicroLogix 1400 Ruggedized PLC Module

Product Overview

Allen-Bradley 1766-L32BWA MicroLogix 1400 Ruggedized PLC Module for Harsh Industrial Environments

The Allen-Bradley 1766-L32BWA is a 32-point MicroLogix 1400 programmable logic controller engineered for continuous, reliable operation in the most demanding industrial environments. Combining relay output architecture with a robust embedded power supply, this controller delivers the rugged dependability that critical infrastructure applications require — from high-temperature foundry floors and dust-laden mining galleries to vibration-intensive offshore platforms and chemically aggressive water treatment facilities. Whether deployed as a standalone machine controller or integrated into a larger Rockwell Automation control architecture, the 1766-L32BWA is built to keep production running when conditions are at their worst.

Designed to IEC 61131-3 programming standards and fully compatible with RSLogix 500 / Studio 5000 Logix Designer software, the 1766-L32BWA supports ladder diagram, function block, and structured text programming, giving engineers the flexibility to implement complex safety interlocks, PID loops, and high-speed counter functions without additional hardware. Its onboard 10/100 Ethernet port, RS-232 serial channel, and optional expansion slots allow seamless integration with SCADA systems, HMI panels, and distributed I/O networks across Modbus RTU, DF1, and EtherNet/IP protocols.

In harsh-environment deployments, the 1766-L32BWA operates reliably across an ambient temperature range of 0 °C to 60 °C with humidity tolerance up to 95% non-condensing, meeting the rigorous demands of tropical processing plants and indoor-outdoor transition zones. Its relay output design provides inherent galvanic isolation between the controller logic and field devices, protecting the CPU from inductive load spikes generated by motor starters, solenoid valves, and high-current contactors — a critical advantage in environments where electromagnetic interference (EMI) from variable frequency drives (VFDs) and large motor banks is a constant threat.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1766-L32BWA is rarely deployed in isolation — its true value emerges when it anchors a fully integrated, protection-grade control system. In a typical control cabinet installation, the MicroLogix 1400 CPU works in concert with 1762-IQ16 DC input expansion modules and 1762-OW16 relay output expansion modules to extend the I/O count for large-scale machine sequences. For analog process control — pressure, temperature, and flow regulation in chemical or water treatment plants — the 1762-IF4 analog input module pairs directly with the 1766-L32BWA to deliver 12-bit resolution process feedback without requiring a separate signal conditioner.

Power integrity is foundational to PLC reliability in harsh environments. A 1606-XLP72E Rockwell Automation industrial power supply provides stable 24 VDC rail voltage with active power factor correction and wide-range AC input (85–264 VAC), ensuring the MicroLogix 1400 and its field devices remain energized through voltage sags and brownouts common in heavy industrial facilities. Upstream, a 1489-M2C100 miniature circuit breaker provides branch circuit protection, while a 1783-US5T unmanaged EtherNet/IP switch enables reliable network segmentation between the PLC, HMI, and remote I/O nodes without introducing managed-switch configuration complexity.

For safety-critical applications in oil and gas or mining, the 1766-L32BWA is often paired with a 440C-CR30 SmartGuard safety relay or a 1791DS-IB12 safety I/O module to implement SIL 2-rated emergency stop and light curtain interlock circuits. Communication to supervisory SCADA systems is handled through a 1761-NET-ENI EtherNet/IP interface or a 1761-NET-AIC advanced interface converter for legacy RS-485 Modbus RTU networks. In high-vibration environments such as compressor skids or conveyor drives, the entire assembly is mounted on DIN rail with vibration-damping end stops, and the 1766-L32BWA’s relay outputs directly drive 700-HLT2Z24 industrial control relays to protect output contacts from inductive kickback.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1766-L32BWA controls wellhead safety shutdown systems, managing pressure transmitter inputs and actuating fail-safe solenoid valves on gas injection lines. Its relay output architecture ensures that a CPU fault or power loss results in a de-energized (safe) output state — a fundamental requirement for SIL-rated safety instrumented systems. Offshore platform installations benefit from the controller’s wide humidity tolerance and vibration resistance, which allow it to operate reliably in sea-spray-laden, high-vibration equipment rooms without additional environmental enclosures beyond a standard IP54 control cabinet.

In underground mining operations, the 1766-L32BWA manages conveyor belt sequencing, ventilation fan control, and pump station automation. Its DH-485 and Modbus RTU communication capabilities allow integration with legacy mine-wide SCADA networks without requiring protocol gateways, reducing system complexity and potential failure points. The controller’s 60 °C operating ceiling is particularly valuable in deep-level mines where ambient temperatures in equipment rooms can approach 50 °C even with active cooling.

Power generation and substation automation applications leverage the 1766-L32BWA’s EtherNet/IP connectivity to integrate with energy management systems, monitoring transformer temperatures, breaker positions, and auxiliary equipment status. Water and wastewater treatment plants deploy the MicroLogix 1400 for lift station pump control, chemical dosing sequences, and UV disinfection system management — applications where the controller’s compact footprint and relay output isolation prevent ground loop interference from submersible pump motors from corrupting control logic. In steel and aluminum smelting facilities, the controller’s EMI immunity and high-temperature tolerance allow it to operate in close proximity to induction furnaces and arc welding stations, environments where lesser controllers routinely suffer memory corruption and spurious output trips.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will provide a replacement unit or full refund after fault verification. Claims are initiated by contacting [email protected] with the order number and a description of the failure mode. Return shipping for warranty replacements is covered by TOPNLMS.

Q2: How is each 1766-L32BWA unit tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection: visual inspection for physical damage, power-on functional test verifying CPU boot, I/O point continuity check across all 32 points, and communication port verification on both RS-232 and Ethernet channels. Surplus-new units are additionally verified against Rockwell Automation firmware revision records. A test report is available upon request for quality-critical procurement.

Q3: Is the 1766-L32BWA compatible with existing MicroLogix 1400 programs and 1762 expansion modules?
Yes. The 1766-L32BWA is fully backward-compatible with all RSLogix 500 programs written for MicroLogix 1400 series controllers. It accepts all 1762-series expansion modules — including digital I/O, analog I/O, RTD/thermocouple, and communication modules — without hardware or firmware modification. Firmware upgrades are performed via RSLogix 500 using the standard BootP/DHCP or serial connection procedure.

Q4: Can TOPNLMS support long-term or repeat supply of the 1766-L32BWA for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of MicroLogix 1400 series components and can support scheduled maintenance procurement programs, blanket purchase orders, and emergency same-day dispatch for critical plant shutdowns. For facilities managing end-of-life Rockwell Automation hardware, we also provide cross-reference support to identify compatible replacement modules and migration pathways to current-generation CompactLogix or Micro800 platforms.
