Allen-Bradley 1764-MM1 Ruggedized Memory Module for Harsh Environments

Product Overview

Allen-Bradley 1764-MM1 Ruggedized Memory Module for Harsh Environments

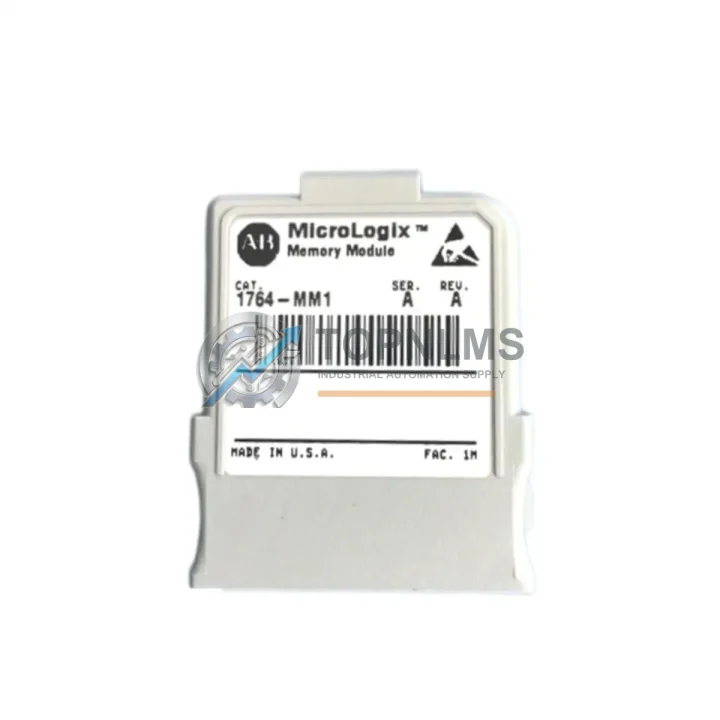

The Allen-Bradley 1764-MM1 is an 8KB memory expansion module engineered specifically for the MicroLogix 1500 programmable logic controller platform. Designed to operate reliably in demanding industrial environments — including high-temperature production floors, high-humidity processing facilities, dust-laden mining sites, and electrically noisy heavy-industry panels — this module extends the program storage capacity of the MicroLogix 1500 base unit, enabling more complex ladder logic, function block diagrams, and data table configurations without compromising system stability.

In continuous manufacturing operations, memory capacity directly impacts control program complexity and system responsiveness. The 1764-MM1 allows engineers and maintenance teams to expand their MicroLogix 1500 controller beyond its base memory limits, supporting larger instruction sets, extended data logging, and more granular fault-handling routines. This is particularly valuable in retrofit and system-extension projects where upgrading to a larger controller platform is cost-prohibitive or operationally disruptive.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1764-MM1 does not operate in isolation — it is one component within a broader MicroLogix 1500 control architecture that must be maintained holistically to ensure uptime. When performing a memory module inspection or replacement, maintenance teams should simultaneously audit the condition of the 1764-LSP MicroLogix 1500 base unit and the 1764-LRP processor, as wear or firmware drift in the base controller can negate the benefits of a healthy memory module.

Power integrity is equally critical. The 1606-XLP power supply series (Allen-Bradley) is commonly paired with MicroLogix 1500 installations; a failing or under-specified power supply introduces voltage ripple that can corrupt memory contents and cause unpredictable PLC behavior in harsh environments. Inspecting and stocking a replacement power supply alongside the 1764-MM1 is a sound preventive strategy.

I/O integrity must also be verified during any memory-related maintenance event. The 1762-IQ8 digital input module and 1762-OW8 relay output module from the MicroLogix 1200/1500 expansion family are frequently deployed in the same control cabinet. Faults in these I/O modules can manifest as logic errors that are mistakenly attributed to memory corruption, making it essential to cross-check I/O module status during troubleshooting.

Communication reliability is another dimension of system resilience. The 1761-NET-ENI Ethernet interface and 1761-NET-DNI DeviceNet interface modules extend MicroLogix 1500 connectivity to plant-wide SCADA and DCS networks. In high-EMI environments such as arc furnace facilities or variable-frequency drive (VFD) rooms, these communication modules are vulnerable to signal degradation; shielded cabling and periodic firmware verification are recommended. The 1747-KE serial communication module is also commonly found in legacy MicroLogix installations and should be inspected for connector corrosion in humid or chemically aggressive environments.

For installations in hazardous or high-vibration zones, terminal block integrity is a frequent failure point. Allen-Bradley 1492-series terminal blocks and associated wiring duct components should be inspected for loose connections, which can introduce intermittent faults that stress the PLC memory through repeated fault-log writes. Pairing the 1764-MM1 replacement with a terminal block inspection cycle is a best-practice maintenance protocol in petrochemical and mining applications.

Finally, for sites running mixed Allen-Bradley architectures, the 1747-L553 SLC 5/05 processor or 1756-L71 ControlLogix processor may coexist in the same facility. Maintaining a cross-platform spare parts inventory — including memory modules, I/O cards, and communication adapters — reduces the risk of extended downtime when a single-source failure occurs across multiple control systems.

Application in Critical Infrastructure

The Allen-Bradley 1764-MM1 is deployed across a wide range of critical industrial sectors where control system reliability is non-negotiable. In oil and gas upstream operations, MicroLogix 1500 controllers manage wellhead automation, valve sequencing, and safety shutdown logic; the 1764-MM1 provides the additional memory headroom required for complex interlock programs without requiring a full controller upgrade. In water and wastewater treatment facilities, where continuous 24/7 operation is mandated, memory expansion modules enable more detailed alarm management and historian data buffering within the PLC itself.

In mining and mineral processing environments, the combination of high vibration, conductive dust, and wide temperature swings creates extreme stress on electronic components. The 1764-MM1’s robust construction and Allen-Bradley’s industrial-grade manufacturing standards make it a reliable choice for conveyor control, crusher automation, and flotation cell management systems. Metallurgical and steel mill applications similarly benefit from the module’s ability to retain program data through power cycling events common in high-load electrical environments.

In power generation and distribution substations, MicroLogix 1500 systems are used for protection relay coordination, load shedding logic, and generator control. The expanded memory capacity provided by the 1764-MM1 supports more granular event logging and fault diagnostics, which are essential for post-incident analysis and regulatory compliance reporting.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the 1764-MM1?
All 1764-MM1 units shipped by TOPNLMS carry a 12-month quality warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify memory read/write integrity and compatibility with MicroLogix 1500 base units before dispatch.

Q2: How do I verify compatibility between the 1764-MM1 and my existing MicroLogix 1500 system?
The 1764-MM1 is compatible with all MicroLogix 1500 base units, including the 1764-LSP and 1764-LRP variants. Compatibility is determined by the base unit’s memory slot specification, not by firmware revision. If you are uncertain about your specific installation, provide your base unit catalog number and firmware version to our technical team at [email protected] for confirmation before ordering.

Q3: Can the 1764-MM1 be installed in the field without specialized tools or programming equipment?
Yes. The 1764-MM1 is a plug-in module that installs directly into the designated memory expansion slot on the MicroLogix 1500 base unit. No soldering or specialized tooling is required. However, it is strongly recommended to power down the controller and follow Rockwell Automation’s lockout/tagout procedures before installation. After installation, the controller will automatically recognize the expanded memory on the next power cycle.

Q4: What is TOPNLMS’s lead time and shipping capability for the 1764-MM1?
TOPNLMS maintains stock of the 1764-MM1 for immediate dispatch. Standard lead time for in-stock units is 1–3 business days for domestic shipments and 5–10 business days for international orders, depending on destination and customs clearance. Expedited shipping options are available for urgent maintenance situations. Contact [email protected] or call +86 18359293191 for real-time stock confirmation and freight quotation.
