Allen-Bradley 1764-24BWA Replacement for MicroLogix 1500: Seamless Migration & Upgrade Solution

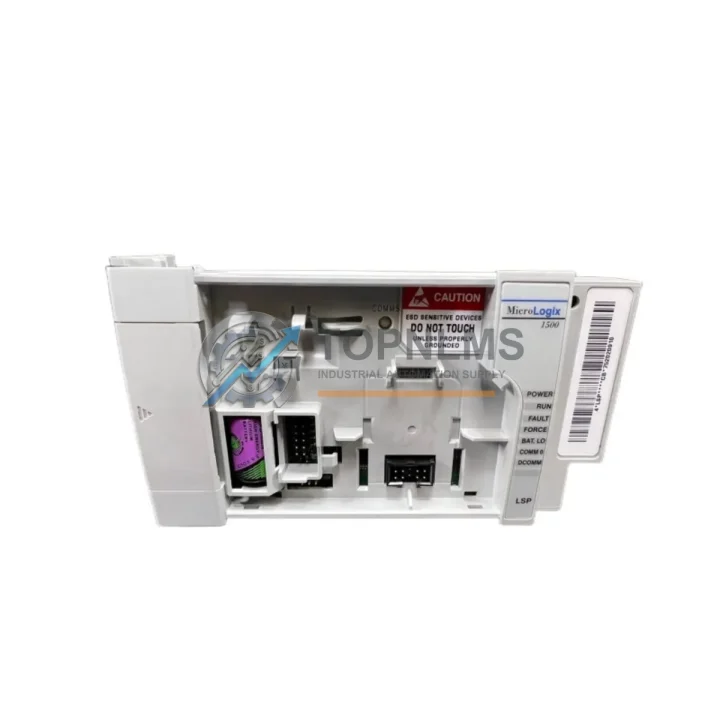

The Allen-Bradley 1764-24BWA is a 24-point base unit for the MicroLogix 1500 series, featuring AC discrete inputs and relay outputs in a compact DIN-rail or panel-mount form factor. As Rockwell Automation progressively phases out legacy MicroLogix 1500 hardware, many facilities running 1764-24BWA base units face the challenge of sourcing verified replacement stock or planning a controlled migration to a supported platform — all while minimizing production downtime.

TOPNLMS supplies tested, ready-to-ship 1764-24BWA units with a 12-month warranty, supporting both direct drop-in replacement and structured system migration projects. Whether your priority is an emergency spare, a planned retrofit, or a phased upgrade from an aging MicroLogix 1500 architecture, this page covers the compatibility details, wiring considerations, and migration guidance you need to make a confident procurement decision.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1764-24BWA replacement or migration rarely involves the base unit alone. In most MicroLogix 1500 installations, the base unit works in conjunction with a 1764-LSP or 1764-LRP processor module, which houses the user program and manages scan-cycle execution. If the processor is also end-of-life, both components should be sourced together to avoid compatibility mismatches during commissioning.

For facilities that need to expand I/O beyond the 24 points on the 1764-24BWA, the 1769-IQ16 and 1769-OW16 CompactLogix I/O modules are commonly used in adjacent migration projects, particularly when the control architecture is being stepped up to a CompactLogix L2 or L3 platform. These modules share the same 1769 bus standard and can be integrated into a new rack without rewiring field devices if terminal block adapters are used.

Communication continuity is a frequent concern during MicroLogix 1500 migrations. The existing DH-485 network — often connecting multiple 1764-series nodes to an SCADA or HMI — can be preserved using a 1761-NET-AIC Advanced Interface Converter, which bridges DH-485 to RS-232 and allows the new or replacement base unit to remain on the existing network topology without reconfiguring upstream devices. For programming and firmware verification tasks, the 1761-CBL-PM02 programming cable remains the standard interface between the 1764-24BWA’s RS-232 port and a laptop running RSLogix 500.

Panel-level power integrity is another migration checkpoint. The 1764-24BWA draws power from the panel’s 120V AC supply, but if the retrofit involves adding a 1606-XLP power supply or upgrading to a 24V DC architecture for new I/O modules, the power budget must be recalculated. Signal isolation between legacy AC field devices and new DC-based I/O is typically handled by Phoenix Contact or Weidmuller signal isolators, which are standard in mixed-voltage retrofit panels.

For sites migrating to a fully supported platform, the MicroLogix 1100 (1763-L16BWA) is the most common lateral upgrade — it preserves relay output wiring, supports Ethernet/IP natively, and accepts RSLogix 500 program conversion with minimal logic rework. Facilities requiring higher throughput or motion control integration typically step up to a CompactLogix 5370 L1 or L2 controller paired with a 1769 I/O rack, which provides a clear migration path aligned with Rockwell’s current product lifecycle roadmap.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing the 1764-24BWA?
Yes. The 1764-24BWA uses a removable terminal block. If you are installing a same-model replacement, the terminal block can be transferred directly to the new base unit without disconnecting field wires, provided the terminal block is undamaged and connector pins are clean.

Q: Will my existing RSLogix 500 program run without modification?
Yes. The .RSS program file stored on the 1764-LSP or 1764-LRP processor is independent of the base unit hardware. Swapping the base unit does not require any program changes. If the processor is also being replaced, upload the program from the old processor before removal and download it to the new one after installation.

Q: Is the 1764-24BWA compatible with DH-485 networks?
DH-485 communication is managed by the processor module (1764-LSP or 1764-LRP), not the base unit itself. The base unit replacement has no impact on DH-485 node addressing or network configuration. Existing network parameters are retained in the processor.

Q: What are the physical space requirements for installation?
The 1764-24BWA has a fixed footprint compatible with standard DIN rail or panel-mount installations. No enclosure modification is required for a like-for-like replacement. If migrating to a CompactLogix platform, additional rail space for the 1769 I/O rack and power supply must be planned.

Q: How do I verify the unit before installation?
All units shipped by TOPNLMS are bench-tested prior to dispatch. We recommend a power-on verification with the processor installed and a short I/O scan before connecting field devices. RSLogix 500 can be used to confirm I/O status in the I/O tree before going live.

Q: Can the 1764-24BWA be used as a cold spare?
Yes. The base unit can be stored as a cold spare without the processor installed. Ensure the unit is stored in a dry, ESD-safe environment. Shelf life is not limited by the hardware itself, but relay contacts should be exercised periodically if stored for extended periods.

Warranty Assurance

Every 1764-24BWA unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional bench test covering power-on integrity, I/O point verification, and communication port continuity. Units that do not pass testing are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement dispatch within 3 business days of fault confirmation. Customers are not required to return the defective unit before a replacement is sent for critical production applications — contact our team to arrange priority handling. Warranty coverage includes manufacturing defects, premature component failure, and DOA (dead-on-arrival) conditions. Physical damage caused by incorrect installation, overvoltage, or environmental exposure is excluded.

For procurement teams requiring documentation, we can provide a test report, packing list, and certificate of conformity upon request. Lead time for in-stock units is typically 2–5 business days for international shipments via DHL or FedEx, with tracking provided at dispatch.
