Allen-Bradley 1763-L16DWD Ruggedized PLC for Harsh Environments

Product Overview

Allen-Bradley 1763-L16DWD Ruggedized PLC Controller for Harsh Industrial Environments

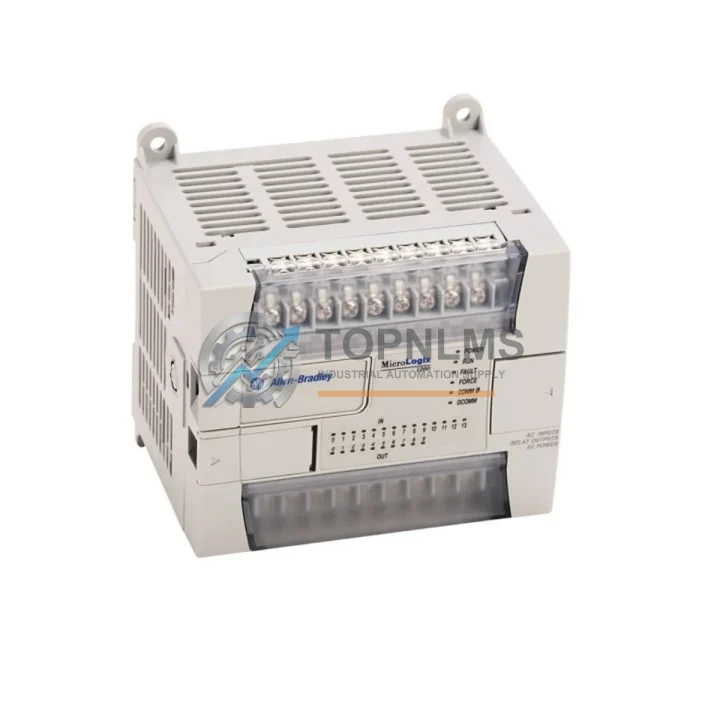

The Allen-Bradley 1763-L16DWD is a compact, high-reliability programmable logic controller from Rockwell Automation’s MicroLogix 1100 series — engineered to deliver consistent, fault-tolerant control in the most demanding industrial environments. With 16 I/O points (DC inputs and relay outputs), embedded Ethernet communications, and a robust hardware design, this controller is purpose-built for continuous operation in high-temperature, high-humidity, dusty, vibration-prone, and electromagnetically noisy plant floors.

At TOPNLMS, every 1763-L16DWD unit is sourced through verified supply channels, individually inspected, and dispatched with a 12-month quality warranty — giving procurement engineers and maintenance teams the confidence to deploy or stock this module as a critical spare.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1763-L16DWD is rarely deployed in isolation — it functions as the control nucleus of a broader automation architecture. In a typical control cabinet installation, this MicroLogix 1100 controller interfaces directly with 1762-IQ16 digital input modules and 1762-OW16 relay output modules to expand field I/O capacity without replacing the base unit. For analog process control — such as pressure, temperature, or flow monitoring — the 1762-IF4 analog input module provides seamless integration within the same MicroLogix expansion bus.

In applications where network transparency is critical, the 1763-L16DWD’s native Ethernet/IP port enables direct communication with Rockwell Automation 1783-series managed Ethernet switches, ensuring deterministic data exchange across distributed control nodes. For legacy serial networks, the onboard RS-232 port supports DF1 and DH-485 protocols, allowing backward-compatible integration with older SLC 500 or PLC-5 installations still operating in brownfield facilities.

Power integrity is foundational to PLC reliability. Pairing the 1763-L16DWD with a 1606-XLP industrial power supply ensures clean, regulated 24V DC delivery even under fluctuating grid conditions — a common challenge in mining substations and heavy manufacturing plants. For surge and transient protection at the field wiring level, Phoenix Contact TRABTECH surge protection terminal blocks are widely specified alongside MicroLogix installations in outdoor or exposed panel environments.

Safety-critical lines benefit from the addition of Allen-Bradley 440R Guardmaster safety relays, which monitor E-stop circuits and light curtain feedback loops independently of the PLC scan cycle — ensuring SIL 2 / PLd compliance without burdening the 1763-L16DWD’s logic execution. Communication integrity across the plant floor is further reinforced by 1761-NET-ENI Ethernet interface modules, which provide protocol conversion for legacy MicroLogix units operating in mixed-network environments.

Application in Critical Infrastructure

The Allen-Bradley 1763-L16DWD has established a strong operational track record across critical infrastructure sectors where unplanned downtime carries severe financial and safety consequences.

Oil & Gas: In upstream wellhead automation and midstream pipeline monitoring, the 1763-L16DWD controls valve actuators, pressure relief sequences, and pump motor starters. Its relay output configuration is well-suited to driving solenoid valves and motor contactors in classified hazardous areas when installed within appropriately rated enclosures. The controller’s compact footprint allows integration into skid-mounted control panels where space is constrained.

Mining & Mineral Processing: Conveyor belt sequencing, crusher interlock logic, and sump pump control are common applications in underground and open-pit mining operations. The 1763-L16DWD’s vibration tolerance and wide operating temperature range make it a dependable choice for equipment rooms adjacent to heavy crushing or grinding machinery, where mechanical shock and airborne particulate are persistent challenges.

Power Generation & Utilities: Auxiliary control systems in thermal power plants — including cooling tower fan sequencing, fuel oil transfer pump control, and boiler feedwater valve management — rely on compact PLCs like the MicroLogix 1100 for localized, deterministic control. The Ethernet/IP connectivity enables supervisory integration with plant-wide SCADA systems without requiring additional communication gateways.

Water & Wastewater Treatment: Lift station pump control, chemical dosing sequences, and UV disinfection system interlocks represent typical deployments in municipal water infrastructure. The 1763-L16DWD’s resistance to high-humidity environments and its ability to operate reliably across wide temperature ranges make it a preferred choice for outdoor pump stations and underground wet wells.

Metallurgy & Heavy Industry: Rolling mill auxiliary drives, furnace temperature zone control, and ladle transfer car positioning systems in steel and aluminum plants demand controllers that can withstand intense electromagnetic interference from large variable frequency drives and arc furnaces. The 1763-L16DWD’s CE-certified EMC compliance and robust hardware design support reliable operation in these electromagnetically hostile environments.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1763-L16DWD?
Every 1763-L16DWD supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair options available to minimize your downtime exposure.

Q2: How is each unit tested before shipment?
All units undergo a pre-shipment functional inspection that verifies power-on operation, I/O point continuity, communication port integrity, and firmware version confirmation. Units that do not meet our quality benchmarks are quarantined and not dispatched. A test report is available upon request for critical spare applications.

Q3: Is the 1763-L16DWD compatible with existing MicroLogix 1100 programs and 1762-series expansion modules?
Yes. The 1763-L16DWD is fully compatible with RSLogix 500 / Studio 5000 Logix Designer programming environments and supports direct program transfer from existing MicroLogix 1100 installations. It accepts all 1762-series expansion I/O modules, enabling drop-in replacement without hardware redesign or rewiring.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. TOPNLMS maintains dedicated inventory of high-demand Allen-Bradley MicroLogix components to support both emergency replacement and planned maintenance procurement. We offer volume pricing for MRO contracts and can provide lead-time commitments for scheduled maintenance shutdowns. Contact our technical sales team to discuss stocking agreements.
