Allen-Bradley 1763-L16BWA Ruggedized PLC Module

Product Overview

Allen-Bradley 1763-L16BWA Ruggedized PLC Module: Industrial Resilience for Harsh Environments

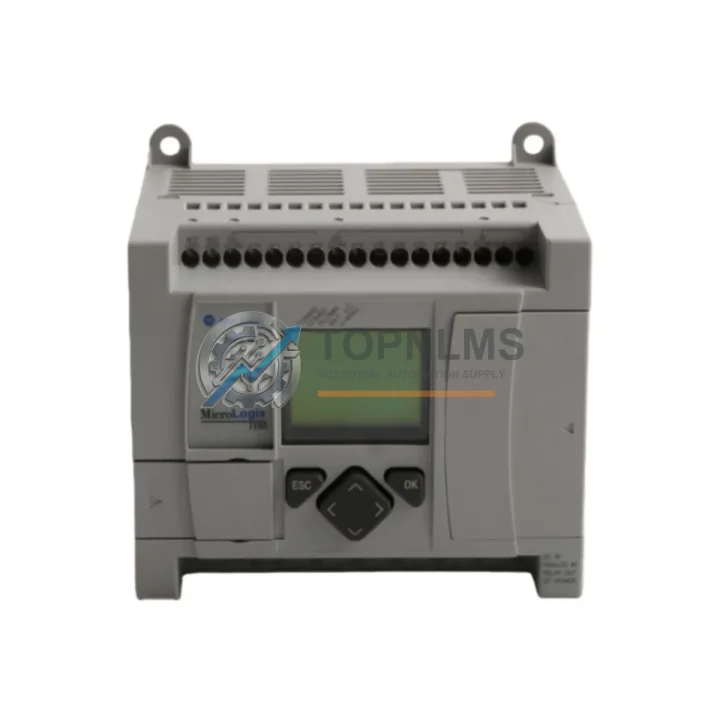

The Allen-Bradley 1763-L16BWA is a MicroLogix 1100 series programmable logic controller engineered for continuous, reliable operation in the most demanding industrial environments. With 10 discrete inputs and 6 relay discrete outputs powered by an AC supply, this compact yet powerful PLC module delivers the rugged performance required in high-temperature facilities, high-humidity processing plants, dusty mining operations, and vibration-intensive heavy manufacturing lines. Designed and manufactured by Rockwell Automation under the Allen-Bradley brand — a global benchmark in industrial control reliability — the 1763-L16BWA is built to sustain mission-critical automation without compromise.

In environments where electromagnetic interference from variable frequency drives, large motor starters, and high-current switching equipment threatens control system integrity, the 1763-L16BWA’s robust hardware architecture and shielded communication interfaces maintain signal fidelity and program execution stability. Its relay output configuration provides galvanic isolation between the control logic and field devices, protecting the CPU from inductive load transients generated by solenoids, contactors, and motor control relays — a critical safety feature in continuous production lines where an unexpected output fault can trigger costly unplanned downtime.

The MicroLogix 1100 platform, of which the 1763-L16BWA is the flagship 16-point AC relay variant, supports EtherNet/IP and RS-232 communications natively, enabling seamless integration with Allen-Bradley PanelView HMI terminals, PowerFlex variable frequency drives, and POINT I/O expansion modules. When deployed alongside the 1763-NC01 serial cable and RSLogix 500 / Studio 5000 Logix Designer software, commissioning and remote diagnostics become straightforward even in geographically remote or access-restricted installations such as offshore platforms or underground mining control rooms.

For system architects designing distributed control architectures, the 1763-L16BWA pairs naturally with the 1762-IQ16 discrete input expansion module and the 1762-OW16 relay output expansion module, allowing I/O capacity to scale without replacing the base controller. In applications requiring analog process control — such as temperature regulation in furnace lines or pressure management in hydraulic systems — the 1762-IF4 analog input module and 1762-OF4 analog output module extend the MicroLogix 1100 platform into closed-loop PID control territory. Communication gateways such as the 1761-NET-ENI EtherNet/IP interface further bridge legacy serial installations to modern Ethernet-based SCADA and DCS architectures, preserving existing infrastructure investment while enabling Industry 4.0 connectivity.

The 1763-L16BWA’s onboard 10/100 Mbps EtherNet/IP port supports MSG instructions for peer-to-peer data exchange with ControlLogix and CompactLogix controllers, making it an ideal node in multi-tier control hierarchies where a MicroLogix handles local machine-level logic while a ControlLogix L7x series controller manages plant-wide coordination. This interoperability is particularly valuable in food and beverage processing, pharmaceutical manufacturing, and water treatment facilities where regulatory compliance demands full traceability of control actions across all automation tiers.

Rugged Specifications Table

Comprehensive Protection Solutions

A reliable control system is never a single component — it is an ecosystem of interdependent devices that must perform cohesively under stress. The 1763-L16BWA serves as the intelligent core of a broader protection and control architecture. In a typical heavy-industry control cabinet, it works in concert with the 1762-IQ16 AC discrete input module to monitor field sensor states from proximity switches, limit switches, and safety interlock circuits. Output-side protection is reinforced by pairing relay outputs with surge-suppression devices and DIN-rail mounted terminal blocks from the 1492-J series, ensuring that inductive kickback from solenoid valves and motor contactors does not degrade relay contact life.

For power conditioning and system resilience, the 1763-L16BWA installation is best supported by an Allen-Bradley 1606-XLP series industrial power supply, which provides regulated 24V DC auxiliary power to field sensors and I/O modules with built-in overvoltage and short-circuit protection. In safety-critical applications, the system can be extended with a GuardLogix safety controller or a 440C-CR30 safety relay module to implement SIL 2 or PLd safety functions — such as emergency stop monitoring, light curtain interfacing, and two-hand control — while the 1763-L16BWA handles standard machine sequencing logic in parallel.

Communication integrity in electrically noisy environments is maintained through the use of shielded EtherNet/IP cables and managed industrial Ethernet switches such as the Stratix 2000 series, which provide IGMP snooping and QoS prioritization to ensure PLC-to-SCADA data packets are not delayed by background network traffic. For legacy serial device integration, the 1761-NET-AIC Advanced Interface Converter bridges the RS-232 port to a DH-485 network, enabling the 1763-L16BWA to communicate with older Allen-Bradley SLC 500 series controllers and 1747-SDN DeviceNet Scanner modules still in service at many brownfield industrial sites.

Application in Critical Infrastructure

The Allen-Bradley 1763-L16BWA has established a proven track record across the most demanding sectors of critical infrastructure. In oil and gas upstream operations, it controls wellhead safety shutdown sequences, monitoring pressure transmitter inputs and actuating fail-safe valve outputs in response to high-pressure or low-flow alarm conditions. Its relay output isolation ensures that hazardous-area field devices remain electrically separated from the control logic, a fundamental requirement in Zone 2 classified installations when used with appropriate certified enclosures and cable glands.

In coal and metal mining operations, the 1763-L16BWA manages conveyor belt interlocking, ventilation fan control, and sump pump sequencing in environments characterized by coal dust, silica particulate, and persistent mechanical vibration from blasting and heavy haulage equipment. Its IEC 60068-2-6 vibration compliance and wide operating temperature range make it suitable for surface-mounted control panels exposed to seasonal temperature extremes from -10°C winter conditions to +55°C summer ambient temperatures inside unventilated equipment shelters.

Power generation and electrical substation applications leverage the 1763-L16BWA for auxiliary equipment control — cooling fan sequencing, battery charger monitoring, and transformer tap-changer interlocking — where the EtherNet/IP port enables integration with substation automation systems using IEC 61850-compliant gateways. In municipal water treatment and wastewater facilities, the controller manages pump station sequencing, chemical dosing pump control, and UV disinfection system interlocking, with remote monitoring via SCADA systems connected over fiber-optic Ethernet infrastructure.

Metallurgical and steel mill applications present some of the harshest electromagnetic environments in industry, with large arc furnaces and induction heating systems generating broadband EMI that can disrupt poorly shielded control equipment. The 1763-L16BWA’s CE-certified EMC compliance and relay output isolation provide the necessary immunity margins for reliable operation in these environments, controlling auxiliary systems such as cooling water flow, fume extraction, and ladle transfer car positioning.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Units are inspected upon return, and replacements are dispatched within 5 business days of fault confirmation.

Q2: How is each 1763-L16BWA unit tested before shipment?
Every unit undergoes a multi-point functional verification process prior to dispatch. This includes power-on self-test confirmation, I/O point continuity checks across all 10 inputs and 6 relay outputs, communication port handshake verification on both the EtherNet/IP and RS-232 interfaces, and visual inspection for physical damage, connector integrity, and label legibility. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the 1763-L16BWA compatible with existing MicroLogix 1100 programs and expansion modules?
Yes. The 1763-L16BWA is fully compatible with all MicroLogix 1100 series expansion modules in the 1762 family, including the 1762-IQ16, 1762-OW16, 1762-IF4, and 1762-OF4. Existing RSLogix 500 programs developed for other MicroLogix 1100 variants can be loaded directly without modification, provided the I/O configuration matches. The EtherNet/IP port is compatible with all Rockwell Automation EtherNet/IP devices and standard IEEE 802.3 network infrastructure.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
TOPNLMS maintains dedicated stock of the 1763-L16BWA and related MicroLogix 1100 series components to support customers with ongoing maintenance contracts and planned spare parts programs. For customers requiring guaranteed availability over a multi-year horizon, blanket purchase order arrangements can be discussed. Contact [email protected] or call +86 18359293191 to discuss volume pricing, lead times, and long-term supply agreements.
