Allen-Bradley 1763-BA Original Industrial Spare MicroLogix Compatible

Product Overview

Allen-Bradley 1763-BA Original Industrial Spare MicroLogix Compatible: System Stability & Industrial Spare Maintenance Value

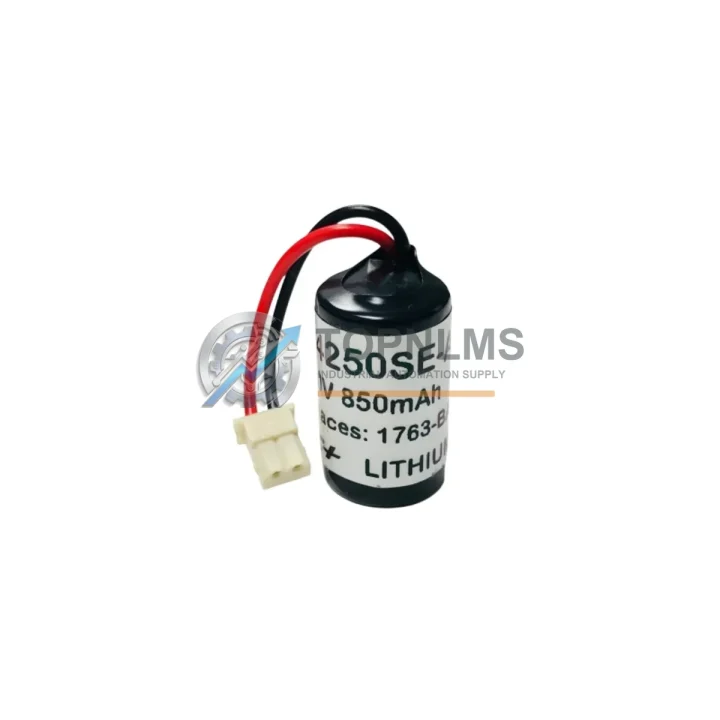

The Allen-Bradley 1763-BA is the original OEM backup battery designed specifically for the MicroLogix 1100 programmable logic controller series. In industrial environments where unplanned downtime translates directly into production losses and costly emergency interventions, maintaining a verified, in-stock supply of the 1763-BA is a foundational element of any responsible preventive maintenance program. This lithium battery ensures that the MicroLogix 1100 retains its user program, data table values, and real-time clock settings during power interruptions — preserving the integrity of your control logic without requiring a full system re-commission.

For maintenance engineers managing aging automation infrastructure, the 1763-BA represents one of the lowest-cost, highest-impact spare parts in the control cabinet. A failed or depleted backup battery can result in complete program loss upon power cycling, forcing unplanned downtime while technicians reload firmware, reconfigure I/O mappings, and re-validate system behavior. Stocking one or more 1763-BA units on the shelf eliminates this risk entirely and supports rapid field replacement during scheduled or emergency maintenance windows.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance approach for MicroLogix 1100-based control systems extends well beyond the backup battery itself. During any scheduled cabinet inspection or annual maintenance cycle, the 1763-BA replacement should be performed alongside a broader review of the control system’s consumable and wear-prone components.

When replacing the 1763-BA, technicians should simultaneously inspect the 1763-L16BWA or 1763-L16DWD controller base unit for signs of capacitor aging, terminal corrosion, or firmware version drift. The 1762-IQ8 and 1762-OW8 I/O expansion modules connected to the MicroLogix 1100 should be checked for loose terminal connections and verified against the current I/O configuration in the program. If the system uses analog signals, the 1762-IF4 analog input module should be calibrated and its wiring inspected for signal drift caused by environmental interference.

Power supply integrity is equally critical. The 1606-XLP power supply feeding the MicroLogix rack should be load-tested to confirm it is delivering stable 24VDC within tolerance. Alongside this, inspect the 1492-J terminal blocks and 1492-CABLE wiring harnesses for insulation wear, especially in high-vibration or high-temperature environments. Relay output modules such as the 1762-OW16 should have their output contacts checked for pitting or welding caused by inductive load switching.

For systems with remote I/O or networked communication, the 1761-NET-AIC Advanced Interface Converter or 1761-NET-ENI Ethernet Interface should be inspected for firmware currency and connector integrity. If the installation includes an HMI panel such as the 2711P-T7C22D9P PanelView Plus 7, verify that the communication link to the MicroLogix 1100 is stable and that the HMI project file is backed up to an external source. Finally, review the condition of the 1763-NC01 serial cable used for programming and diagnostics — cable degradation is a common but overlooked source of intermittent communication faults during maintenance sessions.

Bundling these inspections into a single maintenance event maximizes technician efficiency, reduces the number of cabinet openings, and ensures that the entire control system — not just the battery — is validated for continued reliable operation.

Strategic Replacement Solutions

The 1763-BA is a direct OEM replacement that requires no configuration changes, no firmware updates, and no re-programming of the MicroLogix 1100 controller. This plug-and-play compatibility is critical in industrial environments where maintenance windows are short and the risk of introducing configuration errors during replacement must be minimized.

For facilities managing legacy MicroLogix 1100 installations that are no longer under active vendor support contracts, maintaining a local stock of 1763-BA batteries is a cost-effective strategy for extending system life without committing to a full controller migration. A single battery replacement — typically completed in under five minutes — can restore full data-retention capability to a controller that would otherwise require emergency reprogramming or unplanned downtime.

In multi-line or multi-cell manufacturing environments where several MicroLogix 1100 units are deployed, a standardized battery replacement schedule — typically every 3 to 5 years or upon low-battery fault indication — ensures that no single controller becomes a single point of failure due to battery depletion. Purchasing 1763-BA units in small quantities (2–5 units) as part of a planned spare parts inventory strategy provides immediate availability without excessive carrying cost.

All 1763-BA units supplied by TOPNLMS are sourced as original Allen-Bradley components, tested for voltage and capacity prior to shipment, and backed by a 12-month warranty. Orders are processed and dispatched promptly, with tracking provided upon shipment to support your maintenance scheduling and procurement planning.

Support FAQ

Q1: How do I know when the 1763-BA battery needs to be replaced?
The MicroLogix 1100 controller will generate a low-battery fault (S:5/11 bit in the status file) when the battery voltage drops below the operational threshold. It is recommended to replace the battery immediately upon this indication and to schedule proactive replacement every 3–5 years as part of a preventive maintenance program, regardless of fault status.

Q2: Will replacing the 1763-BA cause any data loss or require reprogramming?
If the controller remains powered during the battery swap, no data loss will occur. If the controller must be powered down before replacement, it is strongly recommended to back up the user program and data table values to a PC using RSLogix 500 or Studio 5000 Logix Designer prior to the swap. TOPNLMS recommends always maintaining an up-to-date program backup as standard practice.

Q3: Is the 1763-BA supplied by TOPNLMS an original Allen-Bradley component?
Yes. All 1763-BA units are original OEM Allen-Bradley components. Each unit undergoes pre-shipment voltage and capacity verification. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and premature capacity failure under normal operating conditions.

Q4: What is the lead time and shipping process for the 1763-BA?
In-stock units are dispatched within 1–3 business days. Shipment tracking is provided upon dispatch. For urgent maintenance requirements or bulk procurement inquiries, please contact our team directly at [email protected] or +86 18359293191 to confirm availability and arrange expedited handling.
