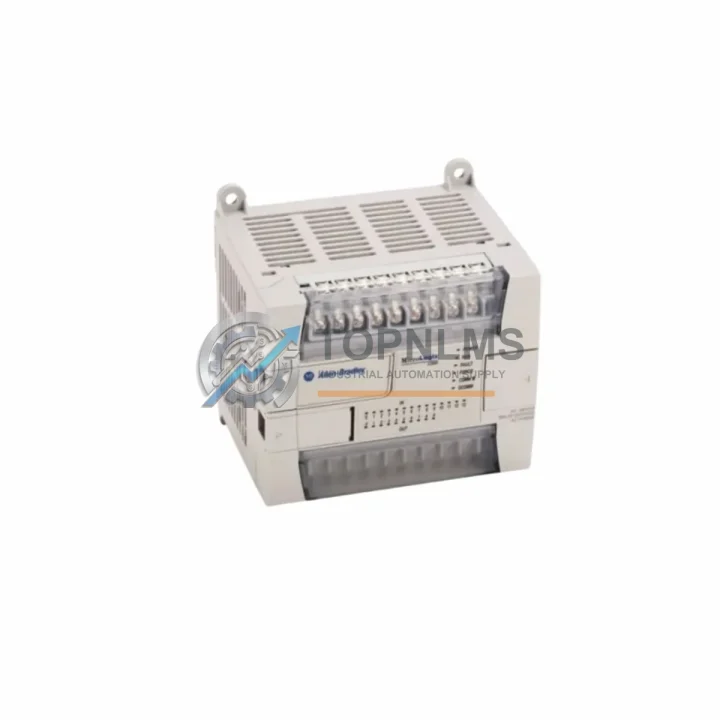

Allen-Bradley 1762-L40BWAR Ruggedized Relay Controller

Product Overview

Allen-Bradley 1762-L40BWAR Ruggedized Relay Controller: Industrial Resilience for Harsh Environments

The Allen-Bradley 1762-L40BWAR is a MicroLogix 1200 series programmable logic controller engineered for continuous, dependable operation in the most demanding industrial environments. With 40 discrete I/O points and relay output architecture, this controller delivers the rugged performance required in high-temperature facilities, high-humidity processing plants, dusty mining operations, and electrically noisy heavy manufacturing floors. Whether deployed in a standalone control panel or integrated into a larger Rockwell Automation control architecture, the 1762-L40BWAR is built to keep critical processes running without interruption.

Designed to withstand ambient operating temperatures from 0°C to 60°C and humidity levels up to 95% non-condensing, the 1762-L40BWAR maintains signal integrity even in environments subject to mechanical vibration and electromagnetic interference. Its relay output design provides inherent galvanic isolation between the controller logic and field devices, reducing the risk of transient voltage damage to the CPU — a critical advantage in applications involving variable frequency drives, large motor starters, and inductive solenoid loads. The onboard power supply accepts a wide AC input range, ensuring stable operation despite fluctuating utility power common in remote industrial sites.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1762-L40BWAR is rarely deployed in isolation. In a typical industrial control cabinet, it works in concert with a range of complementary components to form a complete, protected automation system. Expansion I/O modules such as the 1762-IQ16 (16-point DC input) and 1762-OW16 (16-point relay output) extend the controller’s reach to additional field devices without requiring a separate PLC chassis. For analog process control — monitoring temperature, pressure, or flow — the 1762-IF4 analog input module integrates directly into the MicroLogix 1200 expansion bus, enabling closed-loop PID control within the same compact footprint.

Communication is handled through the 1761-NET-AIC Advanced Interface Converter, which bridges the controller’s RS-232 port to a multi-drop RS-485 network, allowing the 1762-L40BWAR to participate in a DH-485 or Modbus RTU network alongside other Allen-Bradley controllers and third-party devices. In larger system architectures, a 1747-AENTR EtherNet/IP adapter can be used to connect MicroLogix 1200 systems to a PlantPAx DCS environment or a ControlLogix L7x series controller acting as a supervisory PLC, enabling seamless data exchange across the plant floor.

Power integrity is equally critical. Industrial-grade 24 VDC power supplies — such as the Allen-Bradley 1606-XLP series — provide stable, filtered DC power to field sensors and transmitters connected to the 1762-L40BWAR’s input circuits. Surge protection devices and DIN-rail mounted terminal blocks from the 1492 series ensure clean signal wiring and protect input circuits from transient overvoltage events caused by nearby motor switching or lightning strikes. Safety relay modules, such as the MSR127RP, can be integrated into the same control panel to provide SIL-rated emergency stop and safety gate monitoring functions that complement the 1762-L40BWAR’s standard control logic.

Application in Critical Infrastructure

In oil and gas upstream facilities, the 1762-L40BWAR controls wellhead pump motors, monitors pressure transmitters, and manages valve actuators in environments where ambient temperatures routinely exceed 50°C and airborne hydrocarbon particulates demand sealed enclosures. Its relay outputs directly drive motor contactor coils rated up to 240 VAC, eliminating the need for intermediate relay panels and reducing potential failure points in the control circuit.

In municipal water treatment and wastewater facilities, the controller manages pump sequencing, chemical dosing systems, and level control across multiple lift stations. Its RS-485 communication capability allows a single SCADA host to poll multiple 1762-L40BWAR units distributed across a treatment plant, providing centralized monitoring without the cost of a full ControlLogix infrastructure. The controller’s compact DIN-rail form factor fits easily into existing NEMA 4X stainless steel enclosures used in wet process areas.

Mining and mineral processing operations rely on the 1762-L40BWAR for conveyor belt control, crusher sequencing, and ventilation fan management in underground and surface environments where vibration, coal dust, and high humidity are constant challenges. The controller’s IEC 68-2-6 vibration compliance ensures that solder joints and internal connectors remain intact under continuous mechanical stress. In metallurgical plants and steel mills, the relay output architecture provides the high-current switching capability needed to control furnace heating elements, cooling water valves, and rolling mill auxiliary drives without signal degradation from the intense electromagnetic fields generated by large induction furnaces.

Power generation facilities — including thermal, hydro, and renewable energy plants — use the 1762-L40BWAR for auxiliary equipment control: cooling tower fans, lube oil pumps, battery room ventilation, and transformer tap changers. Its wide operating temperature range and EMI immunity make it equally suitable for outdoor switchgear kiosks and indoor substation control rooms.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every 1762-L40BWAR shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. The warranty covers manufacturing defects, premature component failure, and functional non-conformance to published Allen-Bradley specifications. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund after fault verification. Customers are not required to return the defective unit before a replacement is dispatched for critical production applications.

Q2: How is each unit tested before shipment?
All 1762-L40BWAR units undergo a pre-shipment functional test protocol that includes power-on self-test verification, I/O point continuity checks, communication port handshake testing, and firmware version confirmation. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the 1762-L40BWAR compatible with existing MicroLogix 1200 programs and expansion modules?
Yes. The 1762-L40BWAR is fully compatible with all 1762 series expansion modules and accepts programs developed in RSLogix 500 without modification. Existing ladder logic programs can be downloaded directly via the RS-232 programming port using a 1761-CBL-PM02 cable or via a 1761-NET-ENI Ethernet interface. No firmware migration or hardware modification is required when replacing an existing MicroLogix 1200 unit of the same catalog number.

Q4: Can TOPNLMS guarantee long-term supply and support for this model?
TOPNLMS maintains dedicated stock of the 1762-L40BWAR and other MicroLogix 1200 series components to support customers with long production lifecycles and multi-year maintenance contracts. For OEMs and system integrators requiring scheduled deliveries, blanket purchase order arrangements are available. Our technical team provides pre-sales compatibility consultation and post-sales application support to ensure successful integration into your control system architecture.
