Allen-Bradley 1762-L24AWA Original Industrial Spare MicroLogix

Product Overview

Allen-Bradley 1762-L24AWA Original Industrial Spare MicroLogix: System Stability & Maintenance Value

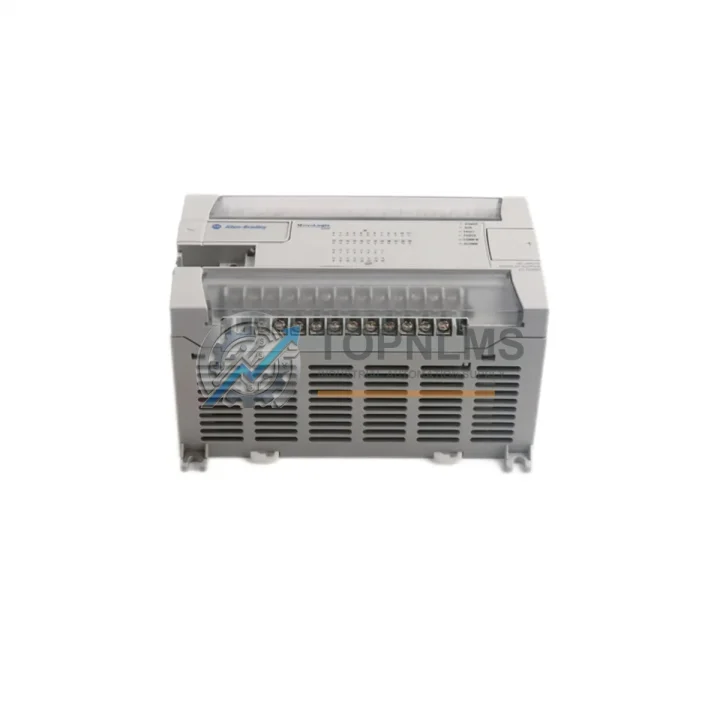

The Allen-Bradley 1762-L24AWA is a 24-point AC input/output MicroLogix 1200 programmable logic controller manufactured by Rockwell Automation. As a cornerstone of small-to-mid-scale industrial control architectures, this controller is widely deployed across packaging lines, material handling systems, HVAC control panels, pump stations, and discrete manufacturing cells. Sourced as an original spare, the 1762-L24AWA provides maintenance teams with a direct, drop-in replacement that preserves existing ladder logic programs, I/O wiring configurations, and communication topologies without requiring re-engineering or system downtime extensions.

In today’s industrial environment, unplanned downtime caused by controller failure can cost thousands of dollars per hour. Stocking a verified original 1762-L24AWA as a critical spare is one of the most cost-effective decisions a maintenance manager can make. Every unit shipped from TOPNLMS undergoes pre-shipment functional verification and is backed by a 12-month warranty, giving procurement teams and plant engineers the confidence to act decisively during emergency shutdowns or scheduled turnarounds.

Critical Technical Specs

Preventive Maintenance Strategy

When a 1762-L24AWA is flagged for replacement during a scheduled shutdown or emergency callout, experienced maintenance engineers know that the controller itself is rarely the only component under stress. A comprehensive inspection of the surrounding control cabinet is essential to prevent repeat failures and maximize the value of the maintenance window.

Begin by inspecting the 1762-IQ16 digital input module and 1762-OW16 relay output module connected to the expansion bus. These modules share the same AC voltage environment as the base controller and are subject to the same contact wear and insulation degradation over time. If the 1762-L24AWA has been in service for more than five years, proactively replacing aging expansion I/O modules during the same maintenance event eliminates a second unplanned outage within months.

Next, verify the integrity of the 1762-series communication cable connecting the controller to the HMI or SCADA gateway. Cracked insulation, loose DB9 connectors, or corroded RS-232 pins are a common source of intermittent communication faults that are often misdiagnosed as controller failures. Alongside this, inspect the 24VDC power supply module feeding the I/O bus — voltage sag or ripple from an aging power supply can cause erratic input reads and false output triggers that mimic PLC faults.

For panels that include analog measurement, check the 1762-IF4 analog input module for calibration drift and verify that signal isolators on 4–20mA loops are functioning within specification. Signal isolators and fuse terminal blocks protecting individual I/O circuits should be tested and replaced on a five-year cycle regardless of apparent condition.

If the control system communicates upstream via DeviceNet or Ethernet/IP, inspect the 1761-NET-DNI DeviceNet interface or any installed 1762-series communication module for firmware currency and connector seating. Communication module failures during a controller swap are a leading cause of extended restart delays. Finally, review the condition of the DIN rail terminal blocks and relay modules in the same cabinet section — loose terminations and worn relay contacts are the most common root cause of nuisance trips in AC-powered control systems.

Stocking the 1762-L24AWA alongside a curated set of these companion components — expansion I/O modules, power supplies, communication cables, analog modules, and terminal protection devices — transforms a reactive repair into a proactive maintenance program that measurably reduces mean time to repair (MTTR) and extends the operational life of legacy MicroLogix 1200 systems by years.

Strategic Replacement Solutions

The 1762-L24AWA occupies a critical position in the MicroLogix 1200 product family. As Rockwell Automation has transitioned its small controller portfolio toward the Micro800 series, original 1762-L24AWA units have become increasingly difficult to source through standard distribution channels. TOPNLMS maintains verified original stock specifically to serve plants that cannot justify a full control system migration — whether due to budget constraints, validated process requirements, or the complexity of re-programming legacy ladder logic.

For maintenance teams managing aging MicroLogix 1200 installations, the 1762-L24AWA provides a direct hardware replacement that requires no changes to existing RSLogix 500 programs, I/O addressing, or field wiring. This is a decisive advantage over cross-brand alternatives that require logic conversion, I/O remapping, and extended commissioning time. The relay output configuration of the AWA variant is particularly valued in applications where AC load switching is required directly from the controller output terminals, eliminating the need for interposing relay modules.

For plants managing multiple MicroLogix 1200 installations across different production lines, a consolidated spare parts strategy — holding one or two 1762-L24AWA units centrally — provides coverage across all installed bases simultaneously. Combined with documented backup programs stored in RSLogix 500 project files, a trained technician can restore full system operation within 30 to 60 minutes of a controller failure, compared to days or weeks waiting for emergency procurement through standard channels.

Support FAQ

Q1: Is this a genuine original Allen-Bradley 1762-L24AWA or a compatible substitute?
This is an original Allen-Bradley 1762-L24AWA manufactured by Rockwell Automation. TOPNLMS sources only original industrial components. Each unit is inspected and verified before shipment. No compatible substitutes or rebranded alternatives are supplied under this listing.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers functional defects identified under normal operating conditions consistent with the published specifications. Units that fail within the warranty period are replaced or refunded. The warranty period begins from the date of confirmed delivery. Please retain your shipment documentation as proof of purchase.

Q3: Can I use this controller as a direct replacement without modifying my existing RSLogix 500 program?
Yes. The 1762-L24AWA is a direct hardware replacement within the MicroLogix 1200 family. Existing RSLogix 500 programs, I/O configurations, and DH-485 or DF1 communication settings are fully compatible. No program conversion or I/O remapping is required. Verify that the firmware revision of the replacement unit is equal to or higher than the unit being replaced to ensure full instruction set compatibility.

Q4: How is the unit tested and packaged before shipment?
Each 1762-L24AWA undergoes a pre-shipment functional check covering power-on self-test, I/O point verification, and communication port integrity. Units are packaged in anti-static protective materials with foam cushioning to prevent transit damage. Tracking information is provided upon dispatch. Standard lead time is 1–3 business days for in-stock units.
