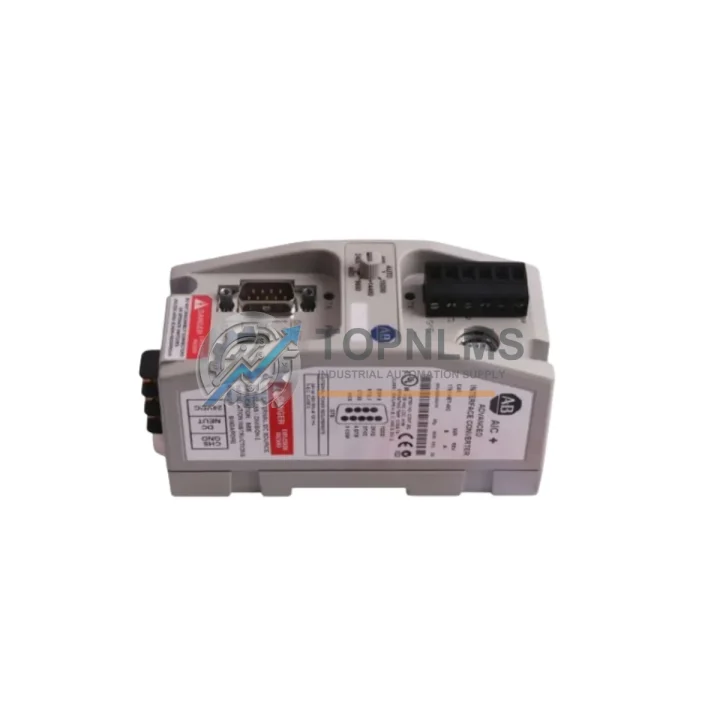

Allen-Bradley 1761-NET-AIC Ruggedized Communication Module for Harsh Environments

Product Overview

Allen-Bradley 1761-NET-AIC Ruggedized Communication Module for Harsh Environments

The Allen-Bradley 1761-NET-AIC is a purpose-engineered DH-485 to RS-232 communication adaptor designed for the MicroLogix controller family, built to sustain reliable data exchange in the most demanding industrial environments. Whether deployed in high-temperature foundries, moisture-laden water treatment facilities, dust-heavy mining operations, or vibration-intensive heavy manufacturing lines, the 1761-NET-AIC maintains signal integrity and protocol conversion without compromise. Its compact, rail-mountable form factor integrates seamlessly into control cabinets where space is at a premium and uptime is non-negotiable.

In continuous production environments — where a single communication fault can cascade into line stoppages, safety incidents, or costly unplanned downtime — the 1761-NET-AIC serves as the critical bridge between MicroLogix PLCs and RS-232-based programming terminals, HMIs, barcode readers, and SCADA systems. Its robust electrical isolation and noise-rejection design make it particularly well-suited for sites with significant electromagnetic interference (EMI) generated by variable frequency drives, large motor starters, and high-current switching equipment.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1761-NET-AIC does not operate in isolation — it is a foundational communication link within a broader Allen-Bradley MicroLogix control architecture. In a typical control cabinet deployment, it works in concert with the MicroLogix 1400 (1766-L32BXBA) CPU, which handles ladder logic execution and I/O management, while the 1761-NET-AIC provides the RS-232 gateway for programming and HMI connectivity. Alongside the controller, the 1762-IQ16 digital input module and 1762-OW16 relay output module handle field-level signal acquisition and actuation, with the 1761-NET-AIC ensuring that all diagnostic and configuration data flows reliably to the engineering workstation.

In installations where network topology demands multi-drop DH-485 communication across multiple nodes, the 1761-NET-AIC is often paired with the 1761-CBL-PM02 programming cable and the 1747-PIC interface converter to maintain a clean, interference-free communication chain. For power conditioning within the same panel, the 1606-XLP72E switched-mode power supply provides stable 24 VDC to the communication adaptor and associated I/O modules, ensuring that voltage fluctuations from heavy machinery do not disrupt serial data transmission.

Where safety-rated control is required — such as in machinery guarding or emergency stop circuits — the 1791DS-IB8XOBV4 safety I/O module operates on the same GuardLogix or safety-rated MicroLogix platform, with the 1761-NET-AIC maintaining the RS-232 diagnostic link to the safety PLC programming interface. In high-vibration environments such as compressor stations or press lines, the 1492-CABLE series terminal block wiring accessories and 1492-J4 jumper bars are used alongside the 1761-NET-AIC to ensure that all wiring terminations within the control cabinet remain mechanically secure and electrically stable over extended operational cycles.

Application in Critical Infrastructure

The Allen-Bradley 1761-NET-AIC has established a proven track record across critical infrastructure sectors where communication reliability is directly tied to operational safety and regulatory compliance.

Oil & Gas: In upstream wellhead automation and midstream pipeline SCADA systems, the 1761-NET-AIC enables RS-232-based RTU communication with MicroLogix controllers managing pressure regulation, valve actuation, and flow metering. Its electrical isolation is essential in Class I, Division 2 (C1D2) classified areas where ground loops and induced voltages from cathodic protection systems can corrupt serial data.

Mining & Mineral Processing: In conveyor drive control panels and crusher automation systems, the 1761-NET-AIC withstands the extreme dust ingress, mechanical shock, and EMI generated by large variable frequency drives (VFDs) such as the PowerFlex 400 and PowerFlex 700 series. It maintains the RS-232 link between the MicroLogix PLC and the operator interface terminal (OIT) even under continuous vibration loads.

Power Generation & Utilities: In substation automation and distributed generation control, the 1761-NET-AIC bridges legacy RS-232 SCADA polling systems with modern MicroLogix-based protection relay interfaces. Its wide operating temperature range ensures reliable performance in outdoor switchgear enclosures subject to seasonal temperature extremes.

Water & Wastewater Treatment: In pump station control panels and chemical dosing systems, the 1761-NET-AIC operates reliably in high-humidity environments where condensation and chemical vapors are persistent concerns. It supports the RS-232 communication link between MicroLogix controllers and chlorination system HMIs, enabling remote monitoring and alarm management.

Metallurgy & Heavy Industry: In electric arc furnace (EAF) control systems and rolling mill automation, the 1761-NET-AIC is deployed in control cabinets adjacent to high-power thyristor drives and transformer banks. Its noise immunity and isolated DH-485 port prevent communication dropouts caused by the intense electromagnetic fields present in these environments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 1761-NET-AIC?
All 1761-NET-AIC units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and communication port integrity. In the event of a warranty claim, TOPNLMS provides direct replacement or repair support with priority processing to minimize your downtime.

Q2: How is each unit tested before shipment?
Every 1761-NET-AIC undergoes pre-shipment functional verification, including DH-485 network communication testing, RS-232 data transmission validation, and power supply integrity checks. Units are inspected for physical condition, connector integrity, and firmware version compatibility before packaging. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1761-NET-AIC compatible with all MicroLogix controller variants and RSLogix 500 software?
Yes. The 1761-NET-AIC is fully compatible with the MicroLogix 1000, 1100, 1200, 1400, and 1500 controller families. It supports RSLogix 500 programming software via RS-232 connection and is recognized by RSLinx Classic for device configuration and diagnostics. It is also compatible with third-party HMI and SCADA systems that support RS-232 serial communication at standard baud rates up to 19,200 bps.

Q4: Can TOPNLMS support long-term supply and replacement for the 1761-NET-AIC?
Yes. TOPNLMS maintains dedicated inventory of the 1761-NET-AIC and its associated MicroLogix communication accessories to support ongoing maintenance, spare parts programs, and emergency replacement requirements. For facilities operating legacy MicroLogix systems where OEM availability may be constrained, TOPNLMS provides a reliable alternative supply channel with consistent quality standards, documented traceability, and responsive technical support. Contact our team to discuss volume pricing, consignment stock arrangements, or long-term supply agreements.
