Allen-Bradley 1756-SIM Ruggedized I/O Simulator Module for Harsh Environments

Product Overview

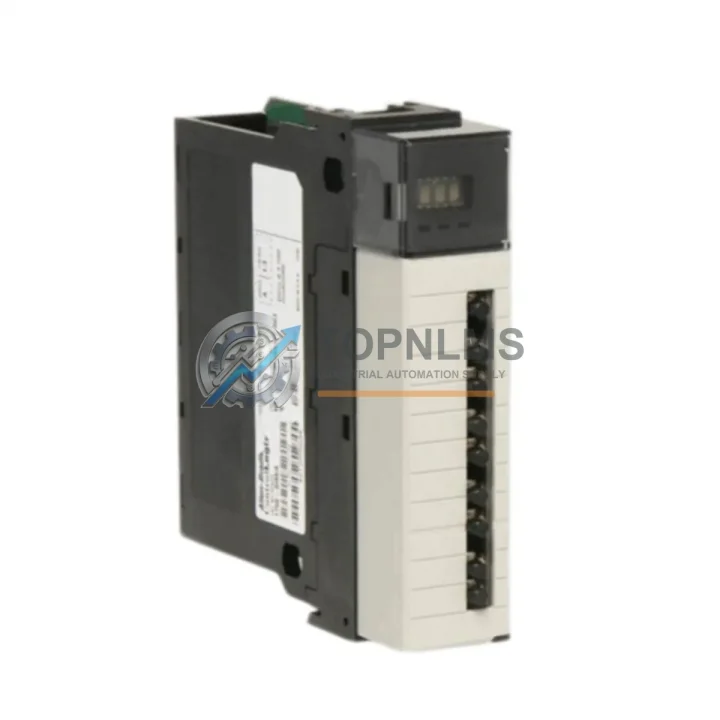

Allen-Bradley 1756-SIM Ruggedized I/O Simulator Module for Harsh Environments

The Allen-Bradley 1756-SIM is a discrete I/O simulator module engineered for the ControlLogix 1756 platform — one of the most trusted programmable logic controller architectures deployed across global heavy industry. Designed to simulate field I/O signals without physical wiring, the 1756-SIM enables engineers and maintenance teams to perform logic validation, commissioning, and fault diagnostics directly within the control cabinet, even under the demanding conditions of continuous production environments. Whether installed in an oil refinery, a mineral processing plant, a power generation facility, or a water treatment station, the 1756-SIM delivers consistent, repeatable performance where reliability is non-negotiable.

In harsh industrial environments — characterized by elevated ambient temperatures, high relative humidity, airborne particulate contamination, mechanical vibration, and pervasive electromagnetic interference — the integrity of every module in the control rack is critical. The 1756-SIM is built to Allen-Bradley’s rigorous ControlLogix hardware standards, ensuring it withstands the same environmental stresses as production I/O modules. Its conformal-coated PCB construction resists moisture ingress and corrosive atmospheres, while its robust backplane connector maintains reliable communication with the 1756 chassis even under sustained vibration loads common to compressor stations, rolling mills, and heavy press lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-SIM does not operate in isolation — it is an integral component of a broader ControlLogix control architecture that must function cohesively under industrial stress. In a typical heavy-industry control cabinet, the 1756-SIM shares a 1756 chassis with the 1756-L73 or 1756-L85E ControlLogix controller, which executes the Logix 5000 ladder logic and function block programs governing the entire process. Communication between the controller and field devices is managed through 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules, providing deterministic, high-speed data exchange even in electrically noisy environments.

On the I/O side, the 1756-SIM works alongside production modules such as the 1756-IB16 16-point 24 VDC digital input module and the 1756-OB16E 16-point electronically fused digital output module, allowing engineers to validate I/O mapping and ladder logic before connecting live field devices. For analog process signals — pressure transmitters, temperature sensors, flow meters — the 1756-IF8 8-channel analog input module and 1756-OF8 analog output module complete the signal chain. In safety-critical applications, the 1756-SIM is frequently used alongside the 1756-L61S GuardLogix safety controller and 1756-IB16S safety digital input modules to verify safety function logic prior to SIL-rated system commissioning.

Power integrity across the rack is maintained by the 1756-PA75 or 1756-PB75 ControlLogix power supply modules, which deliver regulated, filtered DC power to all chassis-mounted modules including the 1756-SIM. In distributed architectures, remote I/O racks connected via 1756-EN2T modules or FLEX I/O 1794 series adapters extend the simulation capability to satellite control panels, ensuring that the entire distributed control system can be validated from a single engineering workstation running Studio 5000 Logix Designer.

Application in Critical Infrastructure

Across the world’s most demanding industrial sectors, the Allen-Bradley 1756-SIM has proven its value as an indispensable commissioning and maintenance tool. In upstream oil and gas facilities — wellhead control panels, gas compression stations, and pipeline SCADA systems — the 1756-SIM enables pre-commissioning logic validation without exposing live process equipment to untested control programs, directly reducing the risk of process upsets and safety incidents. Operators can simulate emergency shutdown (ESD) sequences, verify interlock logic, and confirm HMI alarm responses before the system goes live.

In coal-fired and combined-cycle power generation plants, where continuous availability is paramount, maintenance engineers use the 1756-SIM to test replacement control programs during planned outages without interrupting adjacent generating units. The module’s ability to simulate discrete field signals — motor run feedbacks, valve position limits, pressure switch contacts — allows full functional testing of turbine control and boiler management logic in a safe, offline environment.

Mining and mineral processing operations, where vibration from crushers, conveyors, and ball mills is constant, rely on the mechanical robustness of ControlLogix hardware. The 1756-SIM’s compliance with IEC 60068 vibration and shock standards ensures it remains fully operational in these environments. Water and wastewater treatment facilities, which demand 24/7 uptime for pumping stations and chemical dosing systems, use the 1756-SIM to validate control logic changes during low-demand periods, minimizing the risk of process disruption. In steel and aluminum smelting operations, where ambient temperatures and electromagnetic interference levels are extreme, the 1756-SIM’s thermal tolerance and EMC compliance make it a reliable tool for ongoing system maintenance and expansion.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 1756-SIM?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified I/O simulation functions within the warranty period, TOPNLMS will arrange repair, replacement, or credit at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q2: How is each 1756-SIM tested before shipment?
Every 1756-SIM unit undergoes pre-shipment functional verification, including backplane communication testing, discrete point simulation validation, and visual inspection for physical integrity. Units sourced from authorized distribution channels are accompanied by traceability documentation. Where original factory test records are available, these are provided upon request.

Q3: Is the 1756-SIM compatible with all ControlLogix chassis and firmware versions?
The 1756-SIM is compatible with all standard ControlLogix 1756 chassis (4-slot through 17-slot) and is supported across all major Logix 5000 firmware revisions used with RSLogix 5000 and Studio 5000 Logix Designer. It does not require a specific firmware version and is recognized automatically by the controller upon chassis power-up. Compatibility with GuardLogix safety controllers should be confirmed against the specific safety project configuration.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for the 1756-SIM?
Yes. TOPNLMS maintains dedicated inventory of the 1756-SIM and other ControlLogix 1756 series modules to support both immediate replacement needs and planned maintenance programs. For customers managing aging ControlLogix systems, we offer procurement consultation to identify compatible alternatives and cross-reference modules where the original catalog number has been superseded. Contact our technical team to discuss long-term supply agreements or to request a stock availability confirmation before placing a critical order.
