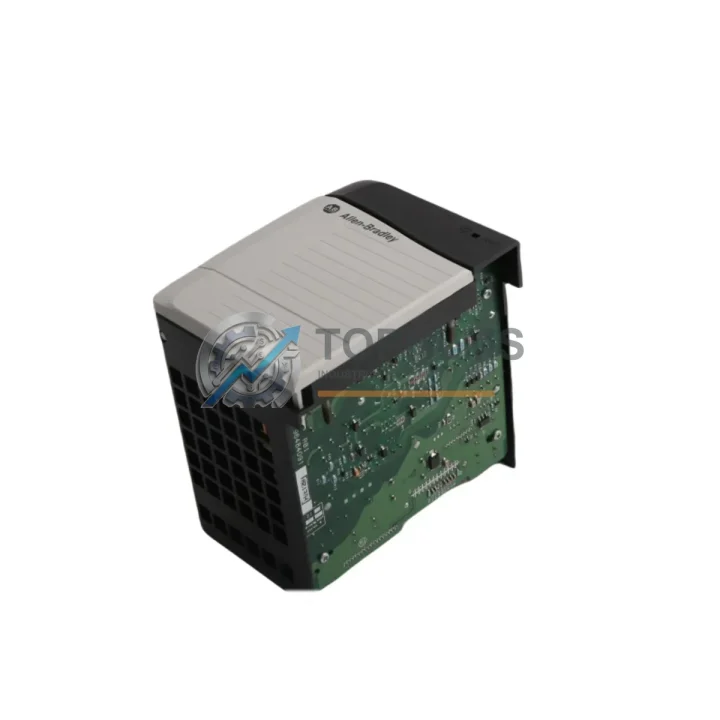

Allen-Bradley 1756-PBR2 Ruggedized Redundant Power Module

Product Overview

Allen-Bradley 1756-PBR2 Ruggedized Redundant Power Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1756-PBR2 is a ControlLogix-series redundant power supply bundle engineered to sustain uninterrupted control power in the most demanding industrial environments. Designed by Rockwell Automation to meet the rigorous uptime requirements of continuous production lines, the 1756-PBR2 delivers dual-path power redundancy that eliminates single-point failure risk at the power supply level — a critical safeguard in facilities where an unplanned shutdown translates directly into production loss, safety incidents, or regulatory non-compliance.

In high-temperature foundries, high-humidity water treatment plants, dust-laden mining galleries, and vibration-intensive heavy manufacturing cells, the 1756-PBR2 maintains stable DC bus voltage to the ControlLogix chassis without interruption. Its hot-swap capability allows field technicians to replace a degraded power supply module while the system remains live, eliminating the need for a planned outage window — a decisive advantage in 24/7 continuous process industries such as oil and gas, petrochemical refining, and electric power generation.

The module integrates directly into the Allen-Bradley 1756 ControlLogix chassis, working in tandem with the 1756-PA75R and 1756-PB75R redundant power supply modules to form a fully redundant power architecture. When paired with a 1756-L7x or 1756-L8x ControlLogix controller, the 1756-PBR2 bundle ensures that the CPU, I/O backplane, and communication modules — including 1756-EN2T EtherNet/IP communication modules and 1756-DNB DeviceNet bridge modules — all receive conditioned, uninterrupted power even during a primary supply fault event.

In safety-instrumented systems (SIS), the 1756-PBR2 is frequently deployed alongside Allen-Bradley GuardLogix 1756-L7xS safety controllers and 1791DS-IB8XOBV4 Compact GuardI/O modules to maintain SIL 2 and SIL 3 power integrity requirements. The redundant power architecture it provides is a foundational element of IEC 61511 and IEC 62061 compliant machine safety designs, where loss of control power must be treated as a dangerous failure mode.

For distributed control architectures, the 1756-PBR2 supports remote I/O racks connected via 1756-RIO Remote I/O communication modules, ensuring that field-level analog and digital I/O signals — sourced from instruments, transmitters, valve positioners, and motor starters — remain powered and communicating even under adverse grid conditions. This is particularly valuable in offshore platforms and remote substations where utility power quality is inconsistent and voltage sags are common.

The module’s electromagnetic compatibility (EMC) design suppresses conducted and radiated interference from variable frequency drives (VFDs), large motor contactors, and arc welding equipment operating in the same control cabinet or adjacent panels. This makes the 1756-PBR2 a reliable backbone for control cabinets housing Allen-Bradley PowerFlex 755 drives, 1492-SP series circuit breakers, and 700-series safety relays, all of which generate significant switching transients that can destabilize lesser power supply designs.

At TOPNLMS, every 1756-PBR2 unit is sourced through verified supply channels, individually inspected upon receipt, and subjected to functional power-on testing before dispatch. Units are shipped in anti-static, shock-resistant packaging with full traceability documentation. Our inventory is maintained to support urgent spare-parts requirements, with same-day or next-business-day dispatch available for in-stock units.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-PBR2 is most effective when integrated into a holistic control system protection strategy. In a typical ControlLogix redundancy architecture, it operates alongside the 1756-RM2 ControlLogix Redundancy Module, which manages controller-level switchover, and the 1756-SYNCH fiber-optic synchronization cable, which maintains real-time state synchronization between primary and secondary controllers. Together, these components form a complete hardware redundancy stack that protects against both power and controller failure simultaneously.

On the I/O side, the 1756-PBR2 sustains power to 1756-IB16 digital input modules, 1756-OB16E digital output modules, and 1756-IF16 analog input modules that interface with field instruments including pressure transmitters, flow meters, and temperature sensors. In safety-critical loops, it also powers 1756-OBV8EI electronic fuse output modules that provide short-circuit protection at the field device level, preventing a wiring fault from cascading into a system-wide shutdown.

For communication integrity, the 1756-PBR2 ensures that 1756-EN2TR dual-port EtherNet/IP modules — which support Device Level Ring (DLR) topology for network fault tolerance — remain continuously powered. This is essential in large-scale SCADA architectures where loss of the EtherNet/IP bridge would sever communication between the ControlLogix controller and hundreds of downstream field devices. Similarly, 1756-CN2R ControlNet redundant media modules benefit from the stable power delivery the 1756-PBR2 provides in legacy DCS migration projects.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1756-PBR2 is deployed in wellhead control panels, compressor station automation systems, and pipeline SCADA RTUs where continuous operation is mandated by both production economics and pipeline safety regulations. The module’s wide-range AC/DC input accommodates the variable power quality typical of remote generator-fed sites, while its redundant architecture ensures that emergency shutdown (ESD) logic remains powered even during a primary supply failure.

In electric power generation and transmission, the 1756-PBR2 supports turbine control systems, excitation control panels, and substation automation controllers where IEC 61850 compliance and high availability are non-negotiable. Its EMC-hardened design withstands the intense electromagnetic environment of high-voltage switchgear rooms and transformer bays.

In mining and mineral processing, the module powers ControlLogix systems managing conveyor drives, crusher controls, and flotation cell automation in environments characterized by heavy vibration, conductive dust, and frequent voltage transients from large motor starts. The 1756-PBR2’s hot-swap capability is particularly valued in underground mining operations where access for maintenance is constrained and unplanned downtime carries significant safety and cost implications.

In water and wastewater treatment, the 1756-PBR2 sustains control power to pump station automation, chemical dosing systems, and SCADA telemetry panels operating in high-humidity, corrosive-atmosphere environments. Its compliance with IEC 60068 environmental test standards confirms its suitability for outdoor and semi-outdoor enclosure installations common in water utility infrastructure.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will provide a replacement or full refund after technical verification. The warranty period begins from the date of confirmed delivery.

Q2: How is each 1756-PBR2 unit tested before shipment?
Every unit undergoes a power-on functional test to verify output voltage regulation, redundancy switchover response, and backplane communication integrity. Units that do not pass all test criteria are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 1756-PBR2 compatible with all ControlLogix chassis and controller revisions?
Yes. The 1756-PBR2 is compatible with all Allen-Bradley 1756 ControlLogix chassis sizes (4-slot through 17-slot) and all ControlLogix controller families including 1756-L6x, 1756-L7x, and 1756-L8x series. Firmware revision compatibility follows Rockwell Automation’s published compatibility matrix, and our technical team can advise on specific revision requirements upon inquiry.

Q4: Can TOPNLMS support long-term or repeat supply of the 1756-PBR2 for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand ControlLogix spare parts including the 1756-PBR2 to support planned maintenance schedules, annual spare parts procurement programs, and emergency replacement requirements. Volume pricing and reserved stock arrangements are available for qualified industrial customers. Contact our team to discuss a supply agreement tailored to your maintenance strategy.
