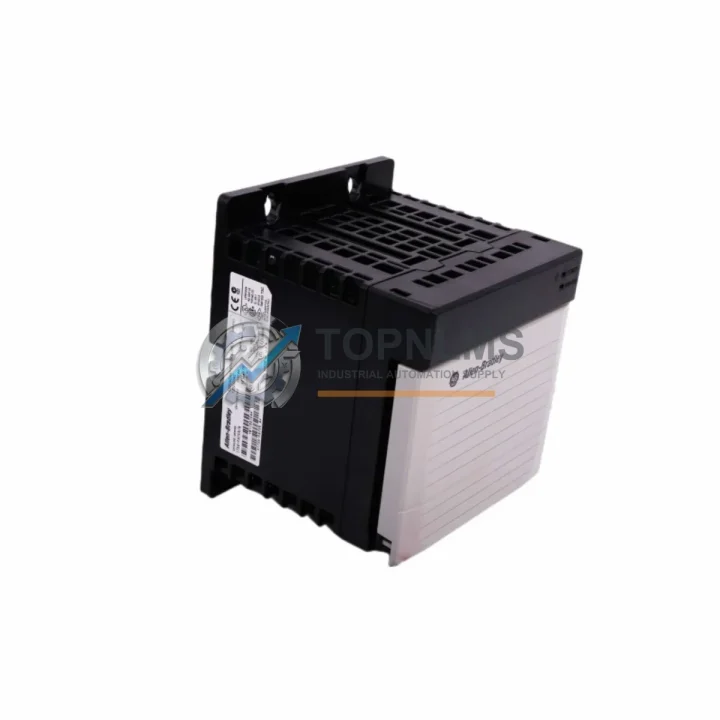

Allen-Bradley 1756-PA75R Ruggedized Redundant AC Power Supply

Product Overview

Allen-Bradley 1756-PA75R Ruggedized Redundant AC Power Supply for Harsh Industrial Environments

The Allen-Bradley 1756-PA75R is a high-reliability, redundant AC power supply engineered for mission-critical ControlLogix 1756 chassis deployments in the most demanding industrial environments. Designed and manufactured by Rockwell Automation, this power supply module delivers continuous, uninterrupted power to your control system even under extreme thermal stress, high-humidity conditions, heavy vibration, and pervasive electromagnetic interference — conditions routinely encountered in oil and gas processing plants, mining operations, steel mills, water treatment facilities, and continuous chemical production lines.

Unlike standard single-feed power supplies, the 1756-PA75R is purpose-built for redundant power architectures. When paired with a second 1756-PA75R or compatible ControlLogix power supply, the system automatically maintains full chassis power in the event of a primary supply failure — eliminating unplanned downtime and protecting the integrity of your entire control loop. This makes it an indispensable component in any safety-critical or high-availability automation system where process interruption carries significant operational or safety consequences.

In harsh-environment deployments, the 1756-PA75R operates reliably alongside the full ControlLogix 1756 ecosystem. It provides stable, conditioned DC bus power to 1756-series I/O modules — including digital input/output cards, analog signal modules, and specialty function modules — ensuring that field signal integrity is maintained even when the plant environment introduces voltage transients or power quality disturbances. The module’s robust internal filtering and surge suppression circuitry actively attenuates conducted EMI, protecting sensitive processor and communication modules from noise generated by variable frequency drives (VFDs), large motor starters, and high-current switching equipment operating in the same control cabinet.

The 1756-PA75R is fully compatible with the 1756-L7x and 1756-L8x series ControlLogix processors, including the 1756-L73, 1756-L74, 1756-L75, and 1756-L83E controllers. It supports chassis sizes from the compact 4-slot 1756-A4 up to the full 17-slot 1756-A17 backplane, making it a versatile power solution across small distributed control panels and large centralized control rooms alike. When deployed in a GuardLogix safety system — using the 1756-L7SP or 1756-L8SP safety controllers — the 1756-PA75R’s redundant architecture directly supports the power availability requirements of SIL 2 and SIL 3 safety instrumented systems.

In petrochemical and refinery environments, where continuous operation is non-negotiable and scheduled maintenance windows are measured in months rather than days, the 1756-PA75R’s hot-swap capability allows field technicians to replace a failed or degraded power supply without shutting down the chassis or interrupting the control program. This live-replacement capability, combined with the module’s diagnostic LED indicators and integration with RSLogix 5000 / Studio 5000 Logix Designer fault reporting, gives maintenance engineers real-time visibility into power supply health — enabling predictive maintenance strategies that prevent failures before they impact production.

For communication-intensive architectures, the 1756-PA75R provides the stable power foundation required by EtherNet/IP communication modules such as the 1756-EN2T and 1756-EN3TR, as well as ControlNet modules like the 1756-CNB and DeviceNet bridge modules. In distributed I/O topologies where remote 1756 chassis are connected via fiber or copper EtherNet/IP links, consistent power supply performance at each node is critical to maintaining deterministic scan times and preventing nuisance communication faults that can cascade into system-wide alarms.

The module also plays a key role in integrated safety architectures. When the control cabinet houses both standard ControlLogix I/O and safety-rated modules — such as the 1756-IB16S digital safety input module or the 1756-OB16IEF electronic fuse output module — the 1756-PA75R’s clean, regulated DC output ensures that safety function response times remain within the required SIL performance limits. Any power quality degradation at the chassis level can introduce latency into safety function execution, making a high-quality, redundant power supply a foundational element of any functional safety design.

Beyond the ControlLogix platform, the 1756-PA75R is frequently specified in integrated control architectures that also include PowerFlex 755 and PowerFlex 525 variable frequency drives, Kinetix servo drives, and SmartGuard 600 safety controllers — all of which share the same EtherNet/IP network fabric and benefit from a stable, noise-free power environment in the control enclosure. Facilities that standardize on Rockwell Automation’s Integrated Architecture find that specifying the 1756-PA75R across all ControlLogix chassis simplifies spare parts management, reduces technician training requirements, and ensures consistent system behavior across multiple production lines or plant sites.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-PA75R is most effective when deployed as part of a fully integrated, protection-layered control architecture. In a typical high-availability ControlLogix system, the power supply works in concert with the 1756-RM2 ControlLogix Redundancy Module, which manages controller-level redundancy and coordinates seamless switchover between primary and secondary chassis. The 1756-RM2 relies on stable, uninterrupted chassis power — exactly what the 1756-PA75R redundant pair provides — to execute bumpless transfer without triggering process upsets or safety system activations.

On the I/O side, the 1756-PA75R powers a wide range of field interface modules. High-density digital I/O modules such as the 1756-IB32 32-point 24VDC input module and the 1756-OB32 32-point output module draw their operating power directly from the 1756 backplane DC bus, making power supply stability directly linked to I/O scan reliability. Analog modules — including the 1756-IF16 16-channel analog input and 1756-OF8 8-channel analog output — are particularly sensitive to power rail noise, as voltage ripple can introduce measurement errors in 4–20 mA process loops monitoring critical variables such as pressure, temperature, and flow rate.

For process safety applications, the 1756-PA75R supports chassis configurations that include the 1756-IB16S safety-rated digital input module and the 1756-OB16IEF electronic fuse output module, both of which are integral to GuardLogix safety instrumented functions. The power supply’s redundant architecture ensures that safety function power availability meets the hardware fault tolerance requirements defined in IEC 61511 for SIL 2 and SIL 3 loops — a critical compliance consideration for facilities subject to process safety management (PSM) regulations.

Communication infrastructure within the same cabinet — including the 1756-EN2TR dual-port EtherNet/IP module for Device Level Ring (DLR) topologies and the 1756-DNB DeviceNet Bridge module for legacy field device integration — also depends on the 1756-PA75R for stable backplane power. In plants where EtherNet/IP connects ControlLogix to SCADA systems, historian servers, and MES platforms, any power-related communication interruption can result in data loss, alarm floods, and regulatory reporting gaps.

Application in Critical Infrastructure

The Allen-Bradley 1756-PA75R is a proven solution across the most demanding sectors of critical industrial infrastructure. In upstream and midstream oil and gas operations — including wellhead automation, pipeline SCADA, and compressor station control — the module’s redundant power architecture directly supports the high-availability requirements of API 670 machinery protection systems and SIL-rated emergency shutdown (ESD) functions. Offshore platform environments, where salt-laden humid air and continuous mechanical vibration are constant stressors, particularly benefit from the 1756-PA75R’s sealed construction and vibration-rated backplane connectors.

In underground and open-pit mining operations, ControlLogix systems equipped with 1756-PA75R power supplies control conveyor systems, crusher automation, ventilation management, and hoisting equipment. The extreme dust loading, high ambient temperatures, and frequent voltage sags caused by large motor starts in mining environments make redundant, surge-protected power supplies a non-negotiable specification requirement. The 1756-PA75R’s universal AC input range (85–265 VAC) also accommodates the variable power quality conditions common in remote mine site power generation systems.

In electric power generation and transmission facilities — including thermal power plants, hydroelectric stations, and substation automation systems — the 1756-PA75R supports ControlLogix-based turbine control, excitation system monitoring, and protection relay coordination. The module’s CE and UL certifications, combined with its IEC 61000-4 EMC compliance, make it suitable for installation in high-voltage switchgear rooms where conducted and radiated electromagnetic interference levels are significantly elevated.

Water and wastewater treatment plants rely on ControlLogix systems for pump station automation, chemical dosing control, and SCADA integration. The 1756-PA75R’s ability to operate continuously in high-humidity environments — up to 95% relative humidity non-condensing — makes it well-suited for wet process areas where condensation and chemical vapors are persistent concerns. In metals and steel production, where continuous casting lines and rolling mills operate 24/7 with minimal planned downtime, the hot-swap capability of the 1756-PA75R allows maintenance teams to replace aging power supplies during scheduled micro-stops without halting production.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it processed?
The 1756-PA75R supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Warranty claims are processed via email at [email protected] with proof of purchase and a fault description. Typical claim resolution is completed within 5–10 business days.

Q2: How is each unit tested before shipment?
Every 1756-PA75R unit undergoes pre-shipment functional verification, including power-on testing, output voltage measurement, and visual inspection for physical damage or counterfeit indicators. Units sourced through authorized distribution channels are accompanied by original manufacturer packaging and documentation. For customers requiring additional test evidence, TOPNLMS can provide inspection reports upon request.

Q3: Is this unit compatible with my existing ControlLogix chassis and firmware version?
The 1756-PA75R is hardware-compatible with all standard 1756-series chassis (1756-A4 through 1756-A17) and does not require firmware configuration — it is a passive power module recognized automatically by the ControlLogix backplane. It is compatible with all 1756-L6x, 1756-L7x, and 1756-L8x processor generations. If you are integrating into a GuardLogix safety system, please confirm your safety controller firmware version with our technical team before ordering.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains stock of the 1756-PA75R and other high-demand ControlLogix components to support both planned procurement and emergency replacement scenarios. For facilities managing aging ControlLogix systems where original manufacturer lead times are extended, TOPNLMS provides a reliable alternative supply channel with fast dispatch from Xiamen, China. Contact us at [email protected] or +86 18359293191 to confirm current stock levels and lead times.
