Allen-Bradley 1756-OV16E Replacement for ControlLogix

Product Overview

Allen-Bradley 1756-OV16E Replacement for ControlLogix: Smooth Migration from Legacy DC Output Systems

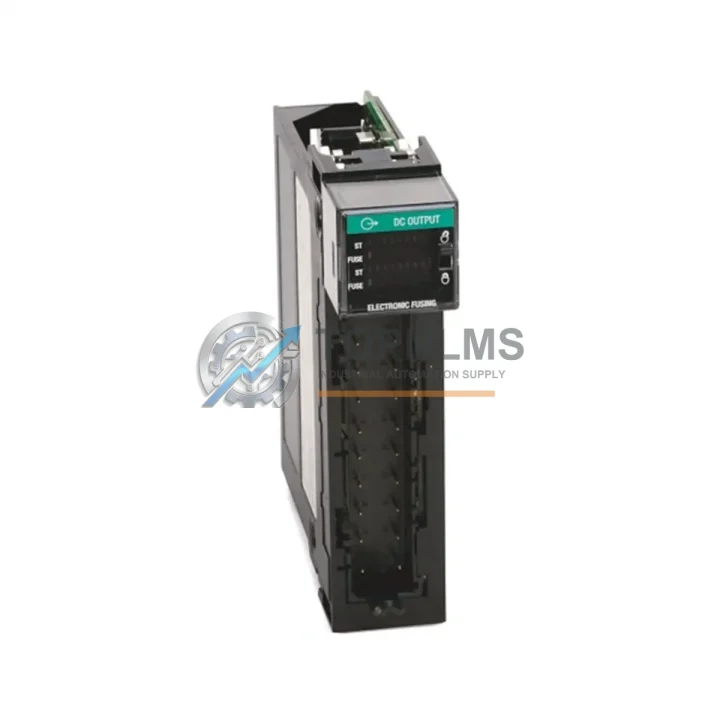

The Allen-Bradley 1756-OV16E is a 16-point, 12/24 VDC fused sinking (current sinking) output module designed for the ControlLogix 1756 chassis platform. When your existing 1756-OV16E reaches end-of-life, becomes obsolete, or fails unexpectedly on the production floor, sourcing a verified replacement with full wiring and firmware compatibility is critical to minimizing unplanned downtime. TOPNLMS stocks the 1756-OV16E as a direct drop-in replacement, pre-tested and ready to ship from Xiamen, China, with a 12-month warranty covering all hardware defects.

This module slots directly into any 1756 series backplane — including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 chassis — without requiring backplane rewiring or rack reconfiguration. Field wiring connects via the standard 1756-TBCH or 1756-TBS6H removable terminal block, meaning your existing field cable harness transfers directly to the replacement module. No re-termination is required, which dramatically reduces the risk of wiring errors during a hot-swap maintenance window.

For systems currently running an older 1756-OV16 (non-fused variant) or the 1756-OA16 AC output module, migration to the 1756-OV16E introduces per-group electronic fusing, improving field device protection without requiring external fuse blocks. Engineers migrating from relay output modules such as the 1756-OW16I will find that the 1756-OV16E’s solid-state DC switching offers faster cycle times and eliminates contact wear, making it the preferred upgrade path for high-frequency actuator or solenoid valve control applications.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1756-OV16E migration rarely involves a single module in isolation. In most ControlLogix control cabinet retrofits, the output module replacement is part of a broader system refresh. During the upgrade process, engineers commonly address the 1756-ENBT or 1756-EN2T EtherNet/IP communication module to ensure the controller’s network bridge remains current and supports the required CIP messaging bandwidth for the updated I/O configuration. Where the existing network infrastructure relies on ControlNet, the 1756-CN2 or 1756-CN2R redundant ControlNet bridge module is typically retained or upgraded in parallel.

On the input side, the 1756-IB16 or 1756-IB32 DC input modules are frequently replaced alongside the 1756-OV16E to standardize the I/O generation across the chassis and simplify spare-parts inventory. For mixed-signal applications involving analog process variables — such as pressure transmitters, flow meters, or temperature sensors — the 1756-IF8 analog input module or 1756-OF8 analog output module may be included in the same retrofit scope.

Power supply integrity is equally important during a module swap. The 1756-PA72 or 1756-PB72 chassis power supply should be inspected and, if approaching end-of-life, replaced concurrently to avoid a secondary failure after the output module is commissioned. In redundant controller architectures, the 1756-RM2 redundancy module governs chassis synchronization and must remain firmware-compatible with all I/O modules in the primary and secondary chassis.

For field commissioning and program verification, a 1761-CBL-PM02 or 1784-U2DHP USB-to-DH+ programming cable is commonly used alongside Studio 5000 Logix Designer to upload, verify, and force-test the replacement module’s I/O map before returning the system to automatic mode. Signal isolation requirements between the PLC output and field devices — particularly in environments with high electrical noise from variable frequency drives or servo amplifiers — may also call for DIN-rail-mounted signal isolators or surge protection barriers to protect the new module’s output circuitry.

Retrofit Guidance FAQ

Q: Do I need to modify my Studio 5000 / RSLogix 5000 program after replacing the 1756-OV16E?
A: No. The 1756-OV16E uses the same I/O module profile as its predecessor. After physical installation, the controller will automatically recognize the module via the backplane. No tag remapping or program download is required, provided the replacement module’s firmware revision is compatible with the controller’s major revision.

Q: Is the field wiring terminal block interchangeable?
A: Yes. The 1756-TBCH and 1756-TBS6H removable terminal blocks are fully compatible with the 1756-OV16E. Your existing field wiring can be transferred directly by unplugging the terminal block from the failed module and inserting it into the replacement — no re-termination needed.

Q: What communication protocols does the 1756-OV16E support?
A: The module communicates over the ControlLogix backplane bus and is accessible via any 1756 communication bridge module, including EtherNet/IP (1756-EN2T, 1756-ENBT) and ControlNet (1756-CN2). It does not require a dedicated network connection — all I/O data is exchanged through the chassis backplane.

Q: Can the 1756-OV16E replace a 1756-OA16 AC output module?
A: Not directly — the 1756-OA16 drives AC loads (120/240 VAC), while the 1756-OV16E is a DC sinking output module (12/24 VDC). If your field devices are DC-powered, the 1756-OV16E is the correct replacement. If AC loads are present, the 1756-OA16 or 1756-OA8 should be retained or replaced with an equivalent AC output module.

Q: How much physical space does the replacement require in the chassis?
A: The 1756-OV16E occupies a single 1756 backplane slot — identical to the module it replaces. No chassis expansion or slot reallocation is required.

Q: What if my system uses an older 1756-OV16 (non-fused) and I’m concerned about fusing differences?
A: The 1756-OV16E adds electronic fusing per output group, which is a functional improvement. Existing external fuse blocks wired in series with the field outputs can be retained or removed. The built-in electronic fusing provides faster fault detection and automatic reset capability, reducing maintenance intervention.

Warranty Assurance

Every 1756-OV16E unit shipped by TOPNLMS is covered by a 12-month hardware warranty from the date of delivery. Prior to dispatch, each module undergoes a functional output verification test to confirm all 16 output points are operational, electronic fusing responds correctly, and backplane communication is intact. Modules are packed in anti-static ESD shielding bags with foam cushioning to prevent transit damage.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS will arrange a replacement shipment or issue a full refund — whichever the customer prefers. Our after-sales response target is within 24 hours on business days. For urgent production-line failures, expedited shipping options (DHL Express, FedEx International Priority) are available at checkout to minimize your system downtime.

Stock is maintained in Xiamen, China, with typical dispatch within 1–3 business days of order confirmation. For bulk procurement or standing purchase orders covering multiple 1756-series modules, please contact our sales team directly to discuss pricing, lead times, and consignment stocking arrangements.
