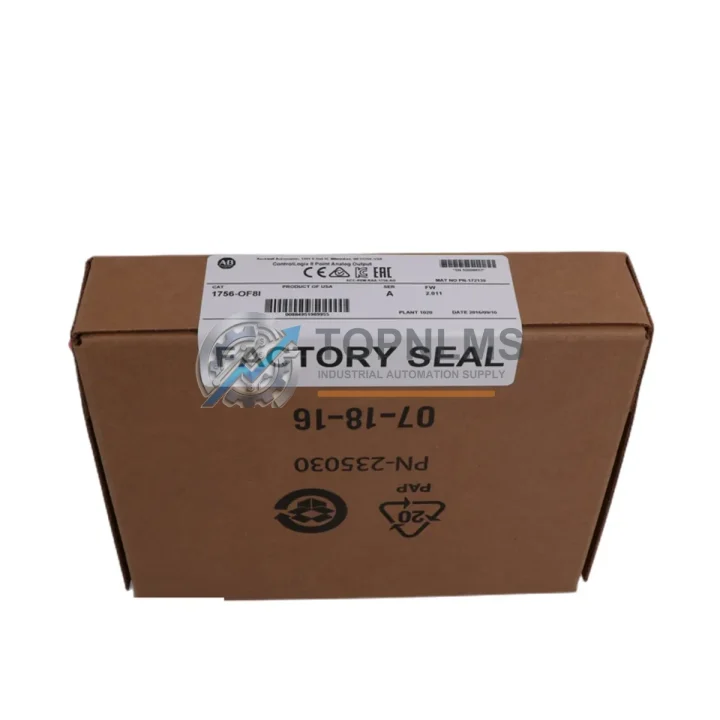

Allen-Bradley 1756-OF8 Replacement for ControlLogix

Product Overview

Allen-Bradley 1756-OF8 Replacement for ControlLogix: Smooth Migration from Legacy Analog Output Systems

The Allen-Bradley 1756-OF8 is an 8-channel analog output module designed for the ControlLogix 1756 chassis platform. As legacy distributed control systems age and original Rockwell Automation hardware reaches end-of-life or becomes increasingly difficult to source, plant engineers and procurement teams face mounting pressure to find reliable, drop-in replacement solutions that minimize engineering rework, reduce downtime, and preserve existing wiring infrastructure.

TOPNLMS supplies the 1756-OF8 as a direct replacement and upgrade solution for facilities currently operating aging ControlLogix systems, migrating from legacy PLC-5 or SLC 500 analog output architectures, or consolidating multi-vendor control cabinets into a unified Rockwell Automation platform. Whether your facility is executing a phased modernization or responding to an emergency spare-parts shortage, the 1756-OF8 integrates into your existing 1756 backplane without requiring changes to your ladder logic, function block diagrams, or RSLogix 5000 / Studio 5000 tag database.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1756-OF8 rarely involves a single module swap. In practice, plant engineers upgrading from legacy PLC-5 or SLC 500 systems will typically need to address the broader control architecture simultaneously. The 1756-OF8 is most commonly deployed alongside the 1756-EN2T EtherNet/IP communication module, which provides the high-speed network bridge between the ControlLogix backplane and the plant’s Ethernet infrastructure — replacing older DH+ or Remote I/O networks that cannot support modern SCADA or MES integration.

For facilities retaining existing field wiring, the 1492-IFM series interface modules (including the 1492-IFM8F and 1492-IFM8D variants) allow engineers to terminate existing 4–20 mA or voltage signal cables directly to the 1756-OF8 without re-pulling wire — a critical advantage in brownfield retrofit projects where conduit access is limited. Where analog input signals must be read back for closed-loop control, the 1756-IF16 16-channel analog input module is the natural companion, sharing the same chassis slot format and Studio 5000 configuration workflow.

Power integrity is equally important during migration. The 1756-PA72 AC power supply and 1756-PB72 DC power supply are the standard chassis power sources for the 1756 platform; verifying that the existing power budget accommodates the 1756-OF8’s backplane current draw (typically 75 mA at 5 VDC) is a mandatory pre-installation step. For larger installations requiring redundant power, the 1756-PSCA2 power supply chassis adapter supports dual-supply configurations without additional cabinet space.

Control cabinet space is frequently a constraint in retrofit projects. The 1756-A7 7-slot chassis and 1756-A10 10-slot chassis are the most common backplane choices when consolidating legacy multi-rack systems into a single ControlLogix enclosure. Engineers migrating from multi-drop Remote I/O networks will also need to evaluate the 1756-DNB DeviceNet bridge module if any field devices — variable frequency drives, smart valve positioners, or distributed I/O blocks — still communicate over DeviceNet rather than EtherNet/IP.

For HMI integration, the PanelView Plus 7 series (including the 2711P-T10C21D8S) connects natively to the ControlLogix platform via EtherNet/IP, providing operators with real-time analog output status, setpoint adjustment, and alarm visualization — replacing older PanelView 550 or PanelView 900 terminals that relied on DH+ connectivity. Finally, where signal isolation is required between the 1756-OF8 output and field instrumentation operating at different ground potentials, inline signal isolators (such as the Phoenix Contact MINI Analog series or equivalent DIN-rail isolators) are recommended to protect module outputs and ensure measurement accuracy in electrically noisy environments.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing a legacy analog output module with the 1756-OF8?
A: Yes, in most cases. The 1756-OF8 uses the 1492-IFM removable terminal block system, which accepts standard 0.5–2.5 mm² wire. If your legacy system used screw-terminal IFMs with the same pinout, field wiring can be transferred directly. Always verify signal polarity and shield grounding before powering up.

Q: Do I need to rewrite my PLC program after installing the 1756-OF8?
A: If you are replacing an identical revision of the 1756-OF8 within the same ControlLogix chassis, no program changes are required — the module profile in Studio 5000 is preserved. For migrations from PLC-5 or SLC 500, the analog output tags must be remapped in RSLogix 5000 / Studio 5000, but the underlying control logic (PID loops, ramp functions, setpoint scaling) can typically be reused with minor tag substitutions.

Q: Is the 1756-OF8 compatible with EtherNet/IP SCADA systems?
A: Yes. The 1756-OF8 communicates via the ControlLogix backplane and is accessible to any EtherNet/IP-capable SCADA, DCS, or MES system through the 1756-EN2T or 1756-ENBT communication module. CIP (Common Industrial Protocol) implicit and explicit messaging are both supported.

Q: What are the physical installation requirements?
A: The 1756-OF8 occupies a single slot in any 1756-series chassis (A4, A7, A10, A13, A17). No special mounting hardware is required. The module is keyed to prevent incorrect slot insertion. Ensure the chassis power supply budget supports the additional 75 mA (5 VDC) backplane current draw before installation.

Q: How do I handle communication protocol differences when migrating from a DH+ network?
A: DH+ networks must be bridged or replaced. The recommended approach is to install a 1756-EN2T EtherNet/IP module in the same chassis and reconfigure SCADA/HMI connections to use EtherNet/IP. For temporary coexistence during phased migration, the 1756-DHRIO module can bridge DH+ and Remote I/O to the ControlLogix backplane.

Q: Can the 1756-OF8 be used in a redundant ControlLogix system?
A: Yes. The 1756-OF8 is compatible with ControlLogix redundancy configurations using the 1756-RM2 redundancy module. In redundant systems, analog output values are synchronized between primary and secondary chassis to ensure bumpless transfer during controller switchover.

Warranty Assurance

Every 1756-OF8 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including backplane communication check, channel output calibration verification, and visual inspection for physical integrity. Units that fail to meet specification are quarantined and not shipped.

In the event of a confirmed module defect within the warranty period, TOPNLMS will arrange replacement shipment or issue a credit note — whichever the customer prefers — without requiring the customer to return the defective unit first in time-critical situations. Our after-sales response target is within 24 hours of a warranty claim submission.

For procurement teams managing planned maintenance shutdowns or emergency spare-parts requirements, TOPNLMS maintains buffer stock of high-demand ControlLogix modules including the 1756-OF8, enabling same-day or next-business-day dispatch from our Xiamen warehouse. Express international shipping via DHL, FedEx, or UPS is available for urgent orders.

All units are shipped in anti-static packaging with individual serial number documentation. A certificate of conformance is available upon request for quality management system (QMS) compliance purposes.
