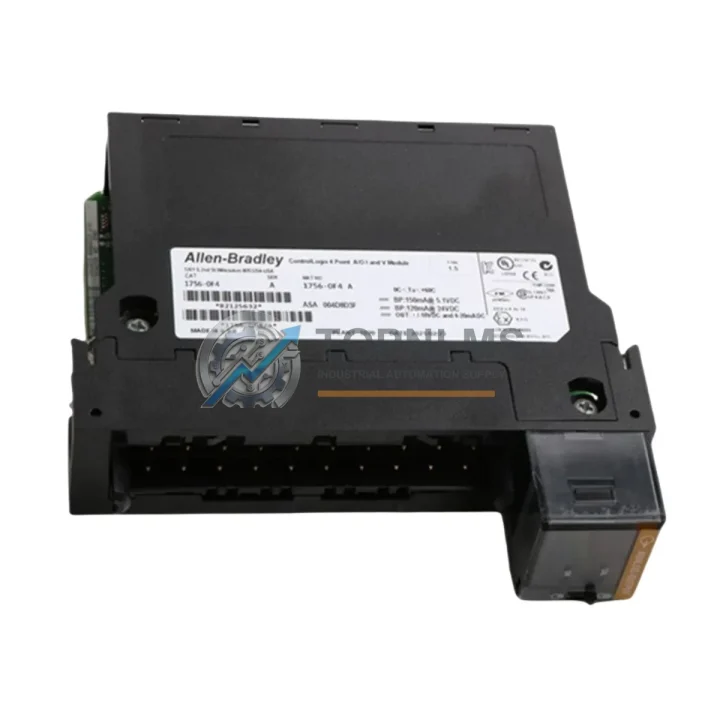

Allen-Bradley 1756-OF4 Original Industrial Spare ControlLogix Compatible

Product Overview

Allen-Bradley 1756-OF4 Original Industrial Spare ControlLogix Compatible

The Allen-Bradley 1756-OF4 is a 4-channel analog output module engineered for the ControlLogix 1756 platform — one of the most widely deployed programmable automation controller (PAC) architectures in global heavy industry. Whether you are managing a scheduled maintenance window, responding to an unplanned shutdown, or building a strategic spare parts inventory for a long-running production line, the 1756-OF4 represents a mission-critical component whose availability directly determines system uptime and process continuity.

At TOPNLMS, every 1756-OF4 unit is sourced from verified supply channels, individually inspected, and function-tested prior to dispatch. Each module ships with a 12-month warranty, providing procurement teams and maintenance engineers with the confidence needed to commit to long-term spare parts planning.

Critical Technical Specs Table

Preventive Maintenance Strategy

Effective preventive maintenance for a ControlLogix-based control system extends well beyond replacing a single module. When a 1756-OF4 analog output module is flagged for replacement during a scheduled inspection or fault diagnosis, experienced maintenance engineers treat it as an opportunity to audit the health of the entire control cabinet.

The 1756-OF4 operates within a 1756 chassis alongside a range of companion modules. The 1756-L73 ControlLogix controller (or its equivalent L7x/L8x series) governs all I/O communication and program execution — its firmware version and battery status should be verified at every maintenance interval. The 1756-EN2T EtherNet/IP communication module handles real-time data exchange between the controller and SCADA or DCS layers; a degraded EN2T can cause intermittent analog output faults that are often misdiagnosed as module failures.

On the power side, the 1756-PA75 or 1756-PB75 power supply module feeds the backplane; voltage ripple or aging capacitors in the power supply are a common root cause of analog output drift. Inspecting and stocking a spare power supply alongside the 1756-OF4 is a standard best practice in facilities with zero-tolerance downtime requirements.

For facilities using mixed I/O architectures, the 1756-IB16 digital input module and 1756-OB16E digital output module are frequently co-located in the same chassis as the 1756-OF4. These modules share the same backplane and should be inspected for contact wear, LED fault indicators, and wiring terminal integrity during any analog output replacement procedure.

Where the 1756-OF4 drives field devices such as control valves, variable frequency drives (VFDs), or positioners, the signal wiring path typically passes through 1492-AIFM analog interface modules or dedicated terminal blocks. Verifying the integrity of these wiring interfaces — including shield grounding and terminal torque — prevents signal noise that can degrade analog output accuracy after module replacement.

In systems where the ControlLogix rack communicates with remote I/O over DeviceNet or ControlNet, the 1756-DNB DeviceNet bridge module or 1756-CNB ControlNet bridge should also be included in the inspection checklist. Communication module faults can mask analog output issues and complicate fault isolation during unplanned shutdowns.

Finally, for facilities managing aging ControlLogix installations, maintaining a documented spare parts list that includes the 1756-OF4, a compatible 1756-TBCH or 1756-TBS6H removable terminal block, and at least one spare 1756-L7x controller provides a complete first-response kit capable of restoring full system operation within a single maintenance shift.

Strategic Replacement Solutions

The 1756-OF4 has been in active deployment across global industrial facilities for over two decades. Many plants running legacy ControlLogix configurations — particularly those installed in the early 2000s through the 2010s — continue to rely on this module as a core analog output interface. While Rockwell Automation has introduced newer analog output variants such as the 1756-OF8 (8-channel) and the 1756-OF8H (HART-enabled), the 1756-OF4 remains the preferred direct replacement in installations where channel count, wiring infrastructure, and existing PLC program tag mappings are optimized for a 4-channel configuration.

Replacing a 1756-OF4 with a like-for-like original spare eliminates the need for program modifications, re-commissioning, or field wiring changes — a critical advantage in facilities where engineering change control processes are time-consuming or where production schedules cannot accommodate extended downtime. The module’s hot-swap capability within a powered 1756 chassis further reduces replacement time, allowing a trained technician to complete a full module swap and output verification in under 30 minutes.

For facilities transitioning from older Allen-Bradley PLC-5 or SLC 500 platforms, the 1756-OF4 within a ControlLogix migration architecture provides a direct upgrade path that preserves existing field wiring while delivering significantly improved resolution, diagnostics, and network integration. TOPNLMS supports procurement teams through this transition by providing both the 1756-OF4 and compatible legacy interface modules to bridge old and new system architectures.

All units supplied by TOPNLMS are tested against factory electrical specifications before shipment. Orders are processed within 1–3 business days, with express logistics options available for urgent maintenance requirements. Global shipping is supported, with export documentation provided for cross-border procurement.

Support FAQ

Q1: What does the 12-month warranty cover for the 1756-OF4?
The 12-month warranty covers all electrical and functional defects identified under normal operating conditions. If a module fails within the warranty period, TOPNLMS will arrange a replacement or repair at no additional cost. Warranty claims are processed within 5 business days of fault confirmation.

Q2: How is each 1756-OF4 tested before shipment?
Every unit undergoes a multi-point electrical inspection that verifies output channel accuracy across both voltage and current ranges, backplane communication integrity, and LED diagnostic response. Modules that do not meet factory-equivalent performance thresholds are not dispatched.

Q3: Is the 1756-OF4 compatible with all ControlLogix 1756 chassis sizes?
Yes. The 1756-OF4 is compatible with all standard 1756 chassis configurations (4-slot, 7-slot, 10-slot, 13-slot, and 17-slot) and is supported by all versions of Studio 5000 Logix Designer and RSLogix 5000. No firmware modifications are required for direct slot replacement.

Q4: Can TOPNLMS support long-term or bulk spare parts procurement for the 1756-OF4?
Yes. TOPNLMS maintains standing inventory of the 1756-OF4 and can fulfill both single-unit urgent orders and multi-unit blanket purchase orders for MRO and capital spare programs. Contact our team to discuss volume pricing, lead times, and consignment stocking arrangements.
