Allen-Bradley 1756-OB32/A Original Industrial Spare ControlLogix Compatible

Product Overview

Allen-Bradley 1756-OB32/A Original Industrial Spare ControlLogix Compatible: System Stability and Industrial Spare Parts Maintenance Value

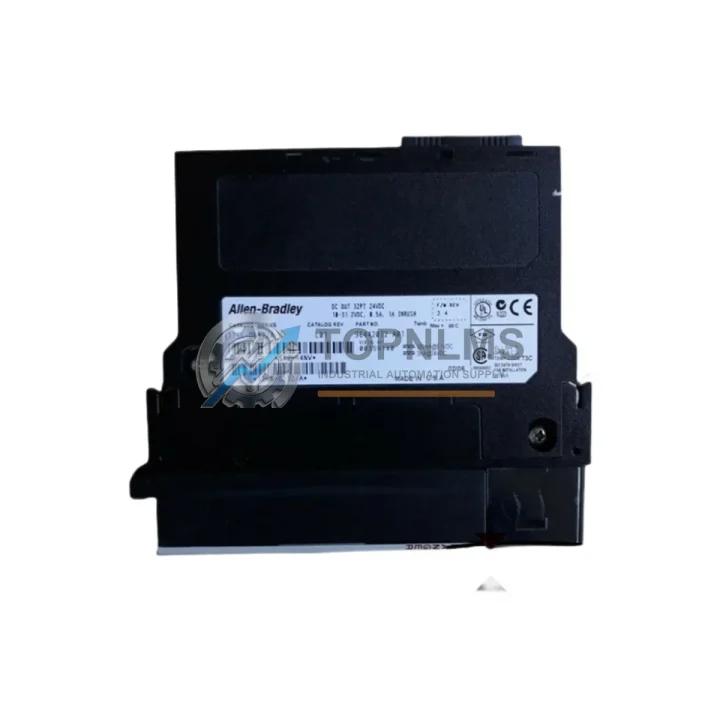

The Allen-Bradley 1756-OB32/A is a 32-point DC source output module engineered for the ControlLogix 1756 platform — one of the most widely deployed programmable automation controller (PAC) architectures in global manufacturing, oil & gas, automotive, and process industries. As a genuine original spare part, the 1756-OB32/A delivers the electrical performance, firmware compatibility, and mechanical reliability that maintenance engineers depend on when system uptime is non-negotiable.

Whether you are managing a planned shutdown, responding to an unscheduled fault, or building a strategic spare parts inventory to protect aging ControlLogix installations, the 1756-OB32/A represents a proven, drop-in replacement that preserves your existing I/O configuration, ladder logic addressing, and cabinet wiring without modification. Sourced directly from authorized supply channels and fully tested prior to shipment, each unit is backed by a 12-month warranty covering manufacturing defects and functional performance.

Critical Technical Specs

Preventive Maintenance Strategy

A ControlLogix output module failure rarely occurs in isolation. In most industrial environments, the 1756-OB32/A operates within a tightly integrated control cabinet ecosystem where multiple components share electrical load, backplane communication bandwidth, and field wiring infrastructure. A disciplined preventive maintenance strategy should treat the 1756-OB32/A as one node in a broader system health review.

During scheduled inspections or corrective maintenance events involving the 1756-OB32/A, maintenance teams should simultaneously audit the 1756-IB32 32-point DC sink input module paired in the same I/O group — input and output modules in the same logical task often degrade in tandem due to shared field wiring faults or voltage transients. The 1756-PA75 or 1756-PB75 power supply module feeding the chassis should be load-tested; an aging power supply delivering marginal 5 VDC backplane voltage is a common root cause of intermittent output module faults that are misdiagnosed as module failure.

The 1756-L73 or 1756-L74 ControlLogix controller managing the 1756-OB32/A should have its firmware version verified against the current module catalog revision to ensure full feature compatibility. If the installation includes remote I/O expansion, inspect the 1756-EN2T or 1756-EN2TR EtherNet/IP communication module for port status, packet error rates, and connector corrosion — communication faults upstream of the output module can trigger false output diagnostics.

Field wiring terminations at the 1756-TBCH or 1756-TBS6H removable terminal blocks should be torque-checked and inspected for oxidation, particularly in high-humidity or chemically aggressive environments. Loose terminations are a leading cause of intermittent output channel faults. Where the control circuit includes relay-driven loads, the 700-HLT or 700-HN relay modules downstream of the output channels should be inspected for contact wear and coil resistance drift.

For installations where the 1756-OB32/A drives solenoid valves or motor starters through intermediate signal isolators or surge suppressors, verify that suppression devices (MOVs, TVS diodes) have not degraded — failed suppressors can pass destructive voltage spikes back into the output module. Finally, if the control cabinet includes a 1756-SYNCH time synchronization module or 1756-RM2 redundancy module, confirm that these modules are communicating normally, as redundancy switchover events can temporarily stress output module state management.

Stocking a matched set of the 1756-OB32/A alongside the 1756-IB32 input module, a spare 1756-PA75 power supply, and at least one set of 1756-TBCH terminal blocks provides a comprehensive first-response kit that covers the majority of ControlLogix cabinet fault scenarios without requiring emergency procurement.

Strategic Replacement Solutions

The 1756-OB32/A is a direct replacement for earlier ControlLogix output module revisions including the original 1756-OB32 (no revision suffix) and is backward-compatible with all 1756-series chassis produced since the platform’s introduction. This means maintenance teams can standardize on the /A revision across mixed-vintage installations without re-engineering I/O maps, updating controller tags, or modifying HMI screen bindings.

For facilities managing end-of-life ControlLogix systems where Rockwell Automation has discontinued active production of specific catalog numbers, maintaining a buffer stock of the 1756-OB32/A eliminates the lead-time risk associated with spot-market procurement during unplanned outages. A single unplanned production stoppage in a high-throughput manufacturing line can generate downtime costs that far exceed the carrying cost of a two- or three-unit spare inventory.

The module’s hot-swap capability is a critical operational advantage: replacement can be performed with the chassis energized and the controller in run mode, reducing the replacement window to under 15 minutes for a trained technician. Combined with Studio 5000’s automatic module configuration download on insertion, the 1756-OB32/A minimizes the procedural complexity of field replacement compared to legacy fixed I/O architectures.

For facilities transitioning from older Allen-Bradley SLC 500 or PLC-5 platforms to ControlLogix, the 1756-OB32/A serves as the output infrastructure backbone of the migration, providing a modern, diagnostics-capable output module that supports point-level fault detection, output state forcing, and electronic keying — capabilities unavailable in legacy I/O systems.

Support FAQ

Q1: Is the 1756-OB32/A compatible with all ControlLogix 1756 chassis sizes?
Yes. The 1756-OB32/A is compatible with all standard ControlLogix 1756 chassis configurations (4-slot, 7-slot, 10-slot, 13-slot, and 17-slot) and can be installed in any slot position. It is also compatible with all ControlLogix controller revisions supported by Studio 5000 / RSLogix 5000 software.

Q2: What pre-shipment testing is performed on each unit?
Each 1756-OB32/A unit undergoes functional output channel verification, backplane communication testing, and visual inspection for physical damage prior to shipment. Units are packaged in anti-static protective packaging with individual serial number documentation. A 12-month warranty covering manufacturing defects and functional performance is included with every unit.

Q3: How should I manage spare parts inventory for aging ControlLogix installations?
For critical production lines, we recommend maintaining a minimum of one 1756-OB32/A spare per chassis containing the module, with additional buffer stock proportional to the number of installed units and the criticality of the controlled process. Pairing the output module spare with a matched 1756-IB32 input module and a 1756-PA75 power supply provides coverage for the most common ControlLogix cabinet failure modes.

Q4: Can the 1756-OB32/A be installed without powering down the ControlLogix chassis?
Yes. The 1756-OB32/A supports hot-swap installation. The module can be removed and replaced while the chassis is energized and the controller is in run mode. Studio 5000 will automatically download the stored module configuration upon insertion, restoring normal operation without requiring a full controller restart. Always follow your site’s lockout/tagout procedures for field wiring before disconnecting terminal blocks.
