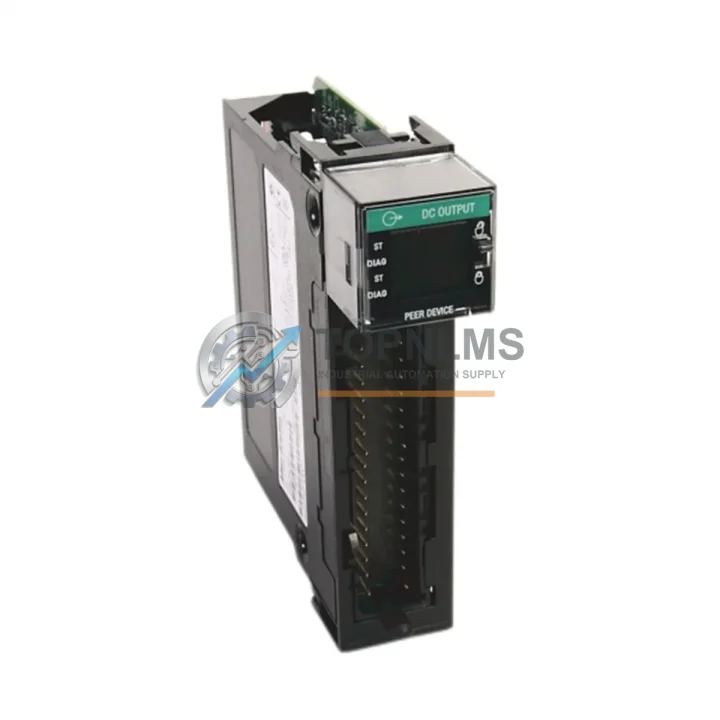

Allen-Bradley 1756-OB16IEF Ruggedized DC Output Module for Harsh Environments

Product Overview

Allen-Bradley 1756-OB16IEF Ruggedized DC Output Module for Harsh Environments

The Allen-Bradley 1756-OB16IEF is a 16-point, fast isolated DC output module engineered for the ControlLogix platform — one of Rockwell Automation’s most trusted control architectures in mission-critical industrial environments. Designed to deliver deterministic, high-speed switching with full channel-to-channel isolation, the 1756-OB16IEF is purpose-built to maintain reliable operation in the presence of high-frequency electromagnetic interference, ground loops, voltage transients, and the mechanical vibration common to heavy industrial facilities.

In continuous production environments — including oil and gas processing, mining extraction, power generation, water treatment, metallurgical smelting, and chemical manufacturing — output modules are exposed to conditions that would compromise lesser components. The 1756-OB16IEF addresses these challenges through its isolated output architecture, which prevents fault propagation between field devices and the backplane, protecting the integrity of the entire ControlLogix chassis. Whether installed in a sealed control cabinet on a refinery skid or mounted in a distributed I/O rack near a high-vibration press line, this module sustains output fidelity where it matters most.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-OB16IEF does not operate in isolation — it is a critical node within a broader ControlLogix control system architecture. In a typical high-availability control cabinet, this output module works in concert with the 1756-IB16 digital input module, which captures field-level signals from sensors and limit switches, and the 1756-L73 ControlLogix CPU, which executes the ladder logic and function block programs that govern process control decisions. Power integrity for the entire chassis is maintained by the 1756-PA75 power supply, which provides regulated 1756 backplane power even under fluctuating utility conditions.

For applications requiring high-speed analog feedback — such as pressure regulation, flow control, or temperature profiling — the 1756-OB16IEF is commonly paired with the 1756-IF16 analog input module and the 1756-OF8 analog output module, enabling closed-loop control with the precision demanded by process industries. In safety-instrumented systems (SIS), the output module is deployed alongside the 1756-L7SP Safety Controller and 1756-OBV8S safety output module, ensuring that emergency shutdown sequences are executed with the determinism required by IEC 61511 and IEC 62061 functional safety standards.

Communication integrity across distributed control nodes is handled by the 1756-EN2T EtherNet/IP communication module, which bridges the ControlLogix backplane to plant-wide SCADA and DCS networks. In legacy installations or multi-vendor environments, the 1756-DNB DeviceNet bridge module and 1756-CN2 ControlNet module extend connectivity to field devices, variable frequency drives, and remote I/O racks. The 1756-RM2 redundancy module is frequently specified alongside the 1756-OB16IEF in redundant controller configurations, ensuring that a primary controller fault does not interrupt output command delivery to critical actuators, solenoids, or motor starters.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1756-OB16IEF controls wellhead valve actuators, compressor station outputs, and pipeline isolation solenoids — environments where a missed output command can trigger a safety interlock or unplanned shutdown. Its fast isolated architecture ensures that ground potential differences between field instruments and the control room do not introduce spurious output states.

In mining and mineral processing, the module drives conveyor belt starters, crusher motor contactors, and slurry pump control relays in environments saturated with conductive dust, high vibration, and wide temperature swings. The channel isolation prevents a single field wiring fault from cascading into adjacent output channels, preserving production continuity.

In power generation and grid substations, the 1756-OB16IEF is deployed in turbine control panels and switchgear automation systems, where it must respond to controller commands within tight timing windows to coordinate breaker operations and load-shedding sequences. Its compliance with IEC 61000 EMC standards ensures immunity to the intense electromagnetic fields generated by high-voltage switching equipment.

In water and wastewater treatment facilities, the module controls chemical dosing pump outputs, UV disinfection system enables, and filtration backwash valve actuators — applications where output reliability directly impacts public health compliance. In metallurgical and steel production environments, it manages furnace burner ignition outputs, rolling mill drive enables, and cooling water valve controls under sustained high-temperature ambient conditions.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1756-OB16IEF?
Every 1756-OB16IEF shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. If the module exhibits any functional defect under normal operating conditions within this period, we provide replacement or full technical support at no additional cost. Our warranty reflects our confidence in the quality of every unit we stock and test.

Q2: How is each unit tested before shipment?
All modules undergo pre-shipment functional verification, including backplane communication checks, output channel continuity testing, and visual inspection for physical integrity. Units sourced from authorized distribution channels are cross-referenced against Rockwell Automation’s genuine product identifiers. We do not ship untested or cosmetically damaged units.

Q3: Is the 1756-OB16IEF compatible with my existing ControlLogix chassis and firmware?
The 1756-OB16IEF is compatible with all standard 1756 ControlLogix chassis variants (4-slot through 17-slot) and is supported across ControlLogix firmware revisions from v16 onward. It is fully configurable via Rockwell Automation’s Studio 5000 Logix Designer software. If you require compatibility confirmation for a specific chassis revision or controller firmware version, contact our technical team with your system details.

Q4: Can TOPNLMS support long-term or repeat procurement of the 1756-OB16IEF?
Yes. TOPNLMS maintains standing inventory of high-demand ControlLogix modules including the 1756-OB16IEF to support planned maintenance schedules, emergency spare parts programs, and capital project procurement. We offer volume pricing for multi-unit orders and can provide lead-time commitments for scheduled deliveries. Our team is experienced in supporting MRO (Maintenance, Repair & Operations) procurement for industrial facilities with zero-downtime requirements.
