Allen-Bradley 1756-OB16E Replacement for ControlLogix: Smooth Migration from Legacy Output Modules

Upgrading or replacing a discontinued Allen-Bradley 1756-OB16E in an existing ControlLogix system does not have to mean extended downtime or costly re-engineering. The 1756-OB16E is a 16-point, 24VDC sourcing (PNP) digital output module designed for the 1756 ControlLogix chassis. Whether your plant is migrating from an older SLC 500 or PLC-5 platform, consolidating I/O racks, or simply replacing a failed card in a live production line, this module offers a verified drop-in upgrade path with full compatibility across the ControlLogix 1756 backplane.

The 1756-OB16E supports 24VDC sourcing outputs at up to 2A per point and 8A per common, making it suitable for driving solenoid valves, motor starters, indicator lamps, and relay coils in demanding industrial environments. Its electronic fusing and diagnostic feedback per output point allow the 1756-L8x or 1756-L7x series controllers to detect field-side faults without requiring manual inspection, significantly reducing mean time to repair (MTTR) in high-availability applications.

For facilities migrating from the older 1756-OB16 (non-fused variant) or the 1746-OB16 SLC 500 output module, the 1756-OB16E provides a direct functional upgrade. The wiring interface uses the standard 1756-TBCH or 1756-TBS6H removable terminal block, meaning existing field wiring can be transferred without re-termination in most retrofit scenarios. When replacing a 1756-OB16 in an existing chassis slot, no changes to the 1756-A7, 1756-A10, or 1756-A17 chassis backplane are required — the module simply slides into the same slot and is recognized by the controller during the next power cycle or online configuration update.

From a programming perspective, the 1756-OB16E tag structure in Studio 5000 Logix Designer is identical to the 1756-OB16, with the addition of diagnostic tags (Fault, FuseBlown, OutputData) that can be mapped directly in the existing ladder logic or function block program. Engineers performing a like-for-like swap will find that existing I/O configuration files can be imported with minimal modification, and the module’s Add-On Profile (AOP) is available through the Rockwell Automation Product Compatibility and Download Center (PCDC).

In multi-chassis or distributed I/O architectures using 1756-EN2T or 1756-EN3TR EtherNet/IP adapter modules, the 1756-OB16E integrates seamlessly over the same EtherNet/IP network without requiring changes to the network topology or IP addressing scheme. For legacy systems still using ControlNet via 1756-CNB or 1756-CNBR bridge modules, the output module communicates transparently through the existing 1756 backplane, preserving the ControlNet scheduled messaging configuration.

Power supply compatibility is another key consideration during migration. The 1756-OB16E draws its backplane power from the 1756-PA72 or 1756-PB72 power supply already installed in the chassis, with a backplane current draw of 120mA at 5VDC and 3mA at 24VDC — well within the budget of standard ControlLogix power supplies. No additional power supply upgrades are required for a single-module replacement.

For larger migration projects involving full I/O rack consolidation — for example, replacing multiple 1746-OB16 SLC 500 modules with a smaller number of 1756-OB16E modules in a ControlLogix chassis — the 1756-IM module mapping utility in Studio 5000 can assist in re-mapping legacy I/O addresses to the new tag-based structure. Pairing the 1756-OB16E with a 1756-IB16 or 1756-IB32 digital input module and a 1756-IF8 analog input module in the same chassis allows engineers to consolidate mixed I/O requirements into a single 1756-A10 chassis, reducing panel space and simplifying cable management.

For applications requiring signal isolation between the PLC output and field devices — particularly in environments with high electrical noise from variable frequency drives (VFDs) or large motor contactors — pairing the 1756-OB16E with an external signal isolator or interposing relay module is recommended. This is a common practice in retrofit projects where the existing field wiring runs are long or share conduit with power cables.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete migration to or around the 1756-OB16E typically involves several companion components. The 1756-TBCH removable terminal block allows field wiring to be pre-wired and tested before the module arrives on site, minimizing installation time during the maintenance window. In chassis configurations, the 1756-A10 or 1756-A17 chassis provides the backplane slots needed to house the output module alongside a 1756-L83E or 1756-L85E controller and communication modules such as the 1756-EN2T EtherNet/IP bridge.

For projects that also require analog I/O consolidation, the 1756-OF8 analog output module and 1756-IF8 analog input module are commonly installed in the same chassis, sharing the same backplane power budget and controller scan cycle. Where legacy ControlNet infrastructure must be preserved during a phased migration, the 1756-CNB ControlNet bridge module allows the new ControlLogix chassis to participate in the existing ControlNet network while EtherNet/IP infrastructure is being commissioned in parallel.

Programming cable access during commissioning is typically handled via the 1756-USB or 1784-U2DHP USB-to-DH+ adapter, depending on the legacy network in use. For HMI integration, the PanelView Plus 7 or PanelView 800 series terminals connect directly to the ControlLogix controller over EtherNet/IP, requiring no additional communication modules in most standard panel configurations.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a 1756-OB16 with a 1756-OB16E?
A: Yes. Both modules use the same 1756-TBCH removable terminal block. Disconnect the terminal block from the old module, insert the new 1756-OB16E into the chassis slot, and reconnect the terminal block. No re-termination of field wiring is required in most cases.

Q: Do I need to modify my Studio 5000 program after the swap?
A: For a like-for-like replacement, the existing I/O configuration can be retained. The 1756-OB16E adds diagnostic tags (FuseBlown, Fault) that are not present in the 1756-OB16 profile. These tags are optional and do not affect existing ladder logic unless you choose to incorporate them for enhanced diagnostics.

Q: Is the 1756-OB16E compatible with both EtherNet/IP and ControlNet backplane architectures?
A: Yes. The module communicates over the 1756 backplane and is compatible with any ControlLogix communication module installed in the same chassis, including 1756-EN2T (EtherNet/IP) and 1756-CNB (ControlNet).

Q: What is the physical installation space requirement?
A: The 1756-OB16E occupies a single slot in any 1756-series chassis (1756-A4, A7, A10, A13, or A17). No additional mounting hardware or DIN rail adapters are required.

Q: Can this module replace a 1746-OB16 from an SLC 500 system?
A: Not as a direct slot-for-slot replacement, since the SLC 500 uses a different backplane (1746-series). However, as part of a full SLC 500 to ControlLogix migration, the 1756-OB16E is the recommended functional equivalent, providing higher current capacity and electronic fusing not available in the 1746-OB16.

Warranty Assurance

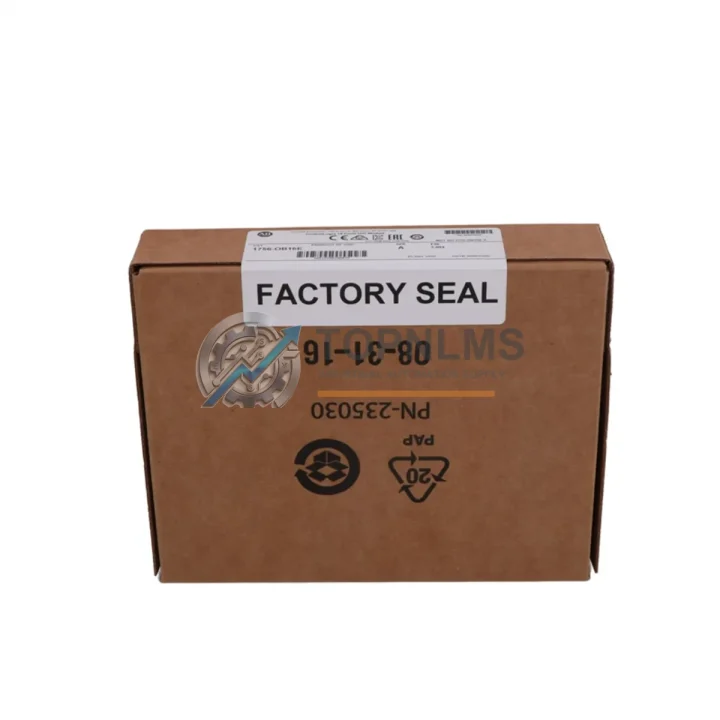

Every 1756-OB16E unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including backplane communication check, output point actuation test, and visual inspection for physical damage. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned module. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance. Typical order processing time is 1–3 business days, with express shipping options available for urgent replacement requirements.

For volume procurement, OEM partnerships, or project-based supply agreements, please contact our sales team directly to discuss pricing, lead times, and consignment stock arrangements.
