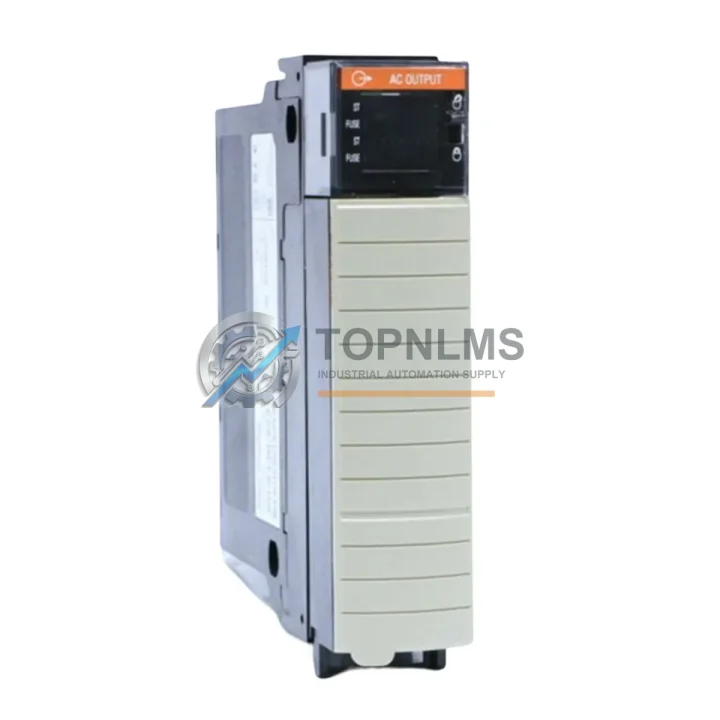

Allen-Bradley 1756-OA16 Ruggedized AC Output Module

Product Overview

Allen-Bradley 1756-OA16 Ruggedized AC Output Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1756-OA16 is a 16-point, 120V AC discrete output module designed for the ControlLogix platform — one of Rockwell Automation’s most widely deployed control architectures in heavy industry. Built to operate reliably in environments characterized by high ambient temperatures, humidity fluctuations, airborne particulates, mechanical vibration, and electromagnetic interference, the 1756-OA16 delivers consistent switching performance where lesser components fail. Whether installed in a steel mill control cabinet, an offshore platform marshalling panel, or a chemical plant distributed I/O rack, this module maintains signal integrity and output reliability under continuous production demands.

The 1756-OA16 slots directly into any standard ControlLogix 1756 chassis — including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 rack configurations — without requiring additional mounting hardware or wiring adapters. Each of its 16 output points is individually fused and optically isolated, providing both overcurrent protection and galvanic separation between the field-side AC loads and the backplane logic. This isolation architecture is critical in environments where inductive loads such as motor starters, solenoid valves, and contactor coils generate voltage transients that could otherwise propagate back into the controller backplane and corrupt program execution.

Rugged Specifications Table

Comprehensive Protection Solutions

In demanding industrial installations, the 1756-OA16 rarely operates in isolation. A complete ControlLogix control system typically pairs this output module with complementary I/O and infrastructure components to achieve full system protection and operational continuity. On the input side, the 1756-IA16 (16-point 120V AC discrete input module) mirrors the OA16’s voltage class and wiring style, enabling a symmetrical AC I/O architecture within the same chassis slot group. For applications requiring higher current capacity or 240V AC switching, the 1756-OA8 (8-point 240V AC output module) serves as a natural companion in the same rack.

Power integrity is foundational to module longevity in harsh environments. The 1756-PA75 power supply — a 75W AC input chassis power supply — provides stable, regulated backplane voltage to the entire ControlLogix rack, protecting all installed modules including the 1756-OA16 from input voltage sags and surges common in heavy industrial facilities. In redundant power configurations, a second 1756-PA75 or the 1756-PB75 (DC input variant) can be installed in a redundant chassis power configuration to eliminate single-point power failure risk.

Communication reliability is equally critical. The 1756-EN2T EtherNet/IP communication module enables high-speed, deterministic data exchange between the ControlLogix controller and SCADA systems, HMI panels, and remote I/O adapters over standard Ethernet infrastructure. In legacy installations where DeviceNet or ControlNet remains the primary fieldbus, the 1756-DNB DeviceNet bridge module or 1756-CN2 ControlNet module provides backward-compatible connectivity without requiring a full network migration. These communication modules share the same 1756 chassis backplane as the OA16, ensuring low-latency output command execution.

For field wiring protection, the 1756-TBCH removable terminal block — the standard wiring interface for the 1756-OA16 — allows the entire field wiring harness to be disconnected from the module without disturbing individual wire terminations, dramatically reducing replacement time during maintenance windows. Signal conditioning and surge protection devices installed upstream of the terminal block further protect the module’s output circuitry from field-side transients generated by inductive AC loads.

Application in Critical Infrastructure

The 1756-OA16 is deployed across the full spectrum of critical infrastructure sectors where process continuity and personnel safety are non-negotiable. In oil and gas upstream facilities, it controls wellhead valve actuators, chemical injection pump solenoids, and flare ignition systems — all of which demand reliable AC switching in environments subject to explosive atmospheres, salt spray, and wide temperature cycling. When installed in Ex-rated enclosures with appropriate purge-and-pressurization systems, the ControlLogix platform including the 1756-OA16 meets the requirements for Zone 2 hazardous area operation.

In electric power generation and transmission substations, the module drives protection relay coils, circuit breaker trip circuits, and alarm annunciator panels. The optical isolation between field and backplane is particularly valued in substation environments where ground potential rise events during fault conditions can introduce thousands of volts of common-mode noise onto field wiring. The 1756-OA16’s isolation barrier prevents this noise from reaching the ControlLogix 1756-L series controller and corrupting the protection logic.

Water and wastewater treatment plants rely on the 1756-OA16 to control pump motor starters, chemical dosing solenoids, and UV disinfection system contactors. The module’s ability to operate continuously at 60°C ambient — typical inside a poorly ventilated pump station control panel in a tropical climate — without derating output current makes it a preferred choice over lower-rated alternatives. Mining operations similarly depend on the module for conveyor belt drive control, crusher motor sequencing, and ventilation fan switching in underground environments where coal dust, methane, and mechanical shock are constant concerns.

In steel and aluminum smelting facilities, the 1756-OA16 manages furnace burner ignition sequences, ladle transfer car positioning, and rolling mill auxiliary drive control. The high thermal mass of these environments — where radiant heat from molten metal can elevate ambient temperatures well beyond standard industrial ratings — demands modules with proven thermal derating characteristics and robust component selection. Rockwell Automation’s manufacturing and qualification standards for the ControlLogix series address these requirements directly.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1756-OA16?
Every 1756-OA16 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes functional verification testing including output switching continuity, optical isolation integrity, and backplane communication handshake validation. A test report is available upon request. Replacement or full refund is provided for any confirmed warranty claim within the coverage period.

Q2: Is this module compatible with my existing ControlLogix chassis and controller firmware?
The 1756-OA16 is compatible with all generations of the ControlLogix 1756 chassis platform, including original 1756-series, ControlLogix-XT (extended temperature), and GuardLogix safety controller configurations. The module is recognized automatically by RSLogix 5000 and Studio 5000 Logix Designer software across all supported firmware revisions. No special configuration or firmware update is required for standard discrete output operation. For GuardLogix safety applications, the standard 1756-OA16 is used for standard (non-safety) output tasks; safety-rated outputs require the 1756-OBV8S or equivalent TÜV-certified safety output module.

Q3: How quickly can the module be shipped, and what documentation is included?
In-stock units are dispatched within 1–2 business days from our Xiamen warehouse. International shipments are handled via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–7 business days to most destinations. Each shipment includes the module, a removable terminal block (if ordered), a packing list, and a certificate of conformance. Commercial invoice and HS code documentation for customs clearance are provided as standard.

Q4: Can TOPNLMS provide long-term supply continuity for this module?
Yes. TOPNLMS maintains standing inventory of the 1756-OA16 and other high-demand ControlLogix I/O modules to support both emergency replacement orders and planned maintenance procurement programs. For customers managing multi-site ControlLogix installations, we offer blanket purchase order arrangements and reserved stock agreements to guarantee availability independent of market supply fluctuations. Contact our technical sales team to discuss volume pricing and supply continuity contracts.
