Allen-Bradley 1756-M08SE Original Industrial Spare ControlLogix Compatible: System Stability and Industrial Spare Parts Maintenance Value

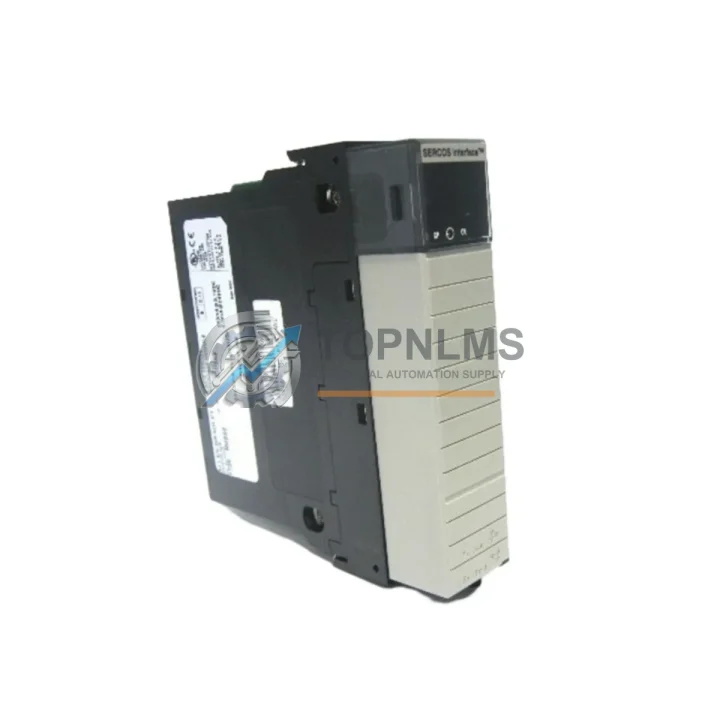

The Allen-Bradley 1756-M08SE is an 8-Axis SERCOS Servo Motion Module designed for the ControlLogix 1756 platform — one of the most widely deployed programmable automation controller (PAC) architectures in global discrete manufacturing, automotive assembly, material handling, and process control environments. As production facilities age and OEM support windows narrow, maintaining a verified stock of original spare modules like the 1756-M08SE becomes a cornerstone of any credible preventive maintenance and business continuity strategy.

Whether you are managing a multi-line automotive stamping facility, a high-throughput packaging line, or a precision CNC machining cell, the 1756-M08SE governs the coordinated motion of up to eight servo axes over the SERCOS (Serial Real-time Communication System) fiber-optic ring. A failure of this module does not merely halt one axis — it can bring an entire synchronized motion group offline, triggering cascading downtime across interconnected production cells. Sourcing a tested, original replacement unit in advance is not optional for operations where every hour of unplanned downtime carries measurable financial consequence.

Critical Technical Specs Table

Preventive Maintenance Strategy

Experienced maintenance engineers understand that the 1756-M08SE rarely fails in isolation. The SERCOS motion ring it anchors connects directly to servo drives, feedback devices, and the ControlLogix controller backplane — meaning a comprehensive inspection and spare-parts audit should extend across the entire motion control ecosystem whenever this module is flagged for replacement or scheduled maintenance.

During a planned shutdown or corrective maintenance event involving the 1756-M08SE, it is standard practice to simultaneously inspect the 1756-L63 or 1756-L65 ControlLogix CPU for firmware currency and battery health, since motion configuration data resides in the controller. The 1756-PA72 or 1756-PB72 chassis power supply should be load-tested, as voltage sag on the backplane bus is a known contributor to intermittent motion faults that are often misdiagnosed as module failures. Technicians should also verify the integrity of the SERCOS fiber-optic cables and ring connectors — fiber contamination or micro-bends at the drive end are a frequent root cause of axis communication faults that surface as 1756-M08SE alarms.

On the drive side, the Kinetix 6000 (2094 series) or Kinetix 6500 servo drives paired with the 1756-M08SE should be inspected for DC bus capacitor condition, cooling fan operation, and drive firmware version compatibility with the motion module firmware. Mismatched firmware between the 1756-M08SE and its paired drives is a documented source of axis initialization failures after module replacement. Alongside the drives, 1756-IB16 or 1756-OB16 digital I/O modules in the same chassis that handle home-limit, overtravel, and safety interlock signals should be functionally tested, as a failed I/O point can prevent axis homing and be mistaken for a motion module defect.

For facilities running coordinated multi-axis gantry or cam-profile applications, the 1756-EN2T EtherNet/IP communication module in the ControlLogix chassis deserves attention during the same maintenance window — HMI and SCADA connectivity through this module is essential for motion diagnostics and remote fault acknowledgment. Additionally, the 1756-RM or 1756-RM2 redundancy module, if present in a high-availability configuration, should be verified for synchronization status, since a motion module swap in a redundant chassis requires careful coordination to avoid a redundancy switchover event during the maintenance window.

Finally, spare 1756-TBCH or 1756-TBS6H terminal base units and associated 1492-CABLE series pre-wired interface cables should be included in any motion system spare-parts kit. These components are frequently overlooked until a module swap reveals a damaged connector or a corroded terminal, extending what should be a 30-minute replacement into a multi-hour repair.

Strategic Replacement Solutions

The 1756-M08SE was introduced as part of Rockwell Automation’s ControlLogix motion architecture and has accumulated an extensive installed base across industries including automotive, food and beverage, semiconductor, and heavy manufacturing. Many of these installations are now operating well beyond their original design lifecycle, with the OEM no longer providing new-unit procurement support through standard distribution channels.

Sourcing an original, tested 1756-M08SE from a specialist industrial spare-parts supplier allows maintenance teams to execute a direct, like-for-like replacement without any software reconfiguration, drive re-commissioning, or PLC program modification. Because the module slots into the existing 1756 chassis and communicates over the established SERCOS ring, the replacement process is confined to a physical swap and a controller download — a procedure that a qualified technician can complete within a single maintenance shift, minimizing production impact.

For facilities considering a longer-term migration path, the 1756-M08SE can serve as a bridge solution that extends the operational life of the existing ControlLogix motion system by three to five years, deferring a full drive and controller upgrade until a planned capital expenditure cycle. This approach preserves existing operator familiarity, validated motion programs, and safety-certified interlocks — all of which represent significant embedded value that would be lost in a premature platform migration.

Each unit supplied by TOPNLMS undergoes functional testing prior to shipment, including backplane communication verification and SERCOS ring initialization checks. Units are shipped with appropriate anti-static packaging and are covered by a 12-month warranty from the date of delivery.

Support FAQ

Q1: Is the 1756-M08SE supplied by TOPNLMS an original Rockwell Automation unit or a third-party compatible module?
All 1756-M08SE units are original Allen-Bradley / Rockwell Automation manufactured modules — not clones, replicas, or third-party compatible alternatives. Each unit is sourced through verified industrial supply channels and is tested before shipment to confirm genuine part identity and functional integrity.

Q2: What is the warranty coverage and what does it include?
Every 1756-M08SE ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange a replacement or repair at no additional cost. Warranty claims are processed within 5 business days of receiving the returned unit.

Q3: How do I verify compatibility between the 1756-M08SE and my existing ControlLogix controller and Kinetix drives before installation?
Compatibility depends on three factors: chassis series (1756 chassis required), controller firmware version (RSLogix 5000 / Studio 5000 project must support the 1756-M08SE module definition), and SERCOS drive firmware version. TOPNLMS technical support can assist with compatibility verification if you provide your controller catalog number, firmware revision, and drive model numbers prior to purchase.

Q4: What is the recommended inventory strategy for the 1756-M08SE in a multi-line production facility?
For facilities with three or more ControlLogix motion systems using the 1756-M08SE, maintaining a minimum of one spare module per facility — and one per production line for critical applications — is the industry-standard recommendation. Given lead times for original spare procurement and the high cost of unplanned downtime in synchronized motion applications, a proactive spare-parts inventory strategy for the 1756-M08SE delivers a measurable return on investment at the first avoided downtime event.
