Allen-Bradley 1756-L75 Ruggedized CPU Module for Harsh Environments

Product Overview

Allen-Bradley 1756-L75 Ruggedized CPU Module for Harsh Environments

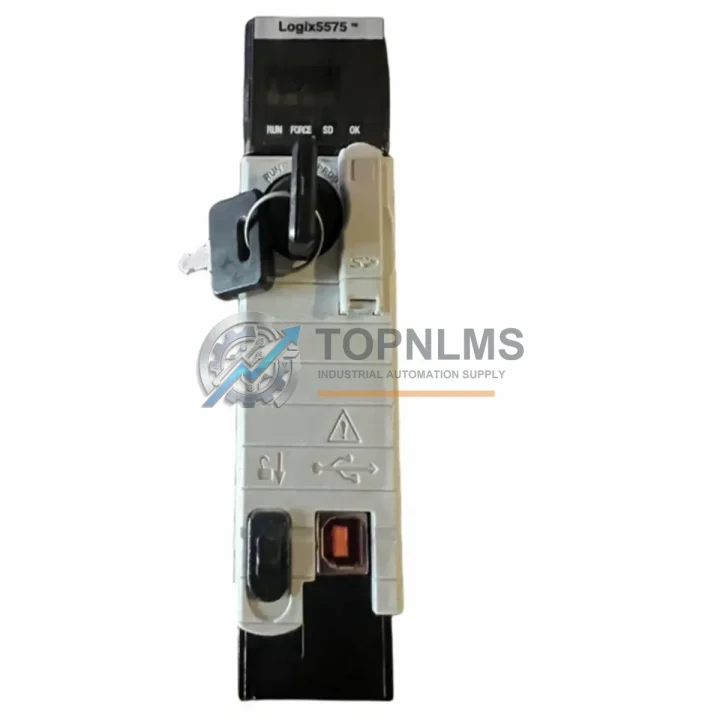

The Allen-Bradley 1756-L75 is a high-performance ControlLogix 5570 series CPU module engineered for continuous, reliable operation in the most demanding industrial environments. Designed to withstand extreme temperature fluctuations, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI), the 1756-L75 delivers the processing power and fault tolerance that mission-critical automation systems require. Whether deployed on a continuous petrochemical production line, a high-vibration mining conveyor system, or a high-temperature steel mill control cabinet, this processor module maintains deterministic scan-cycle performance without compromise.

At the core of the ControlLogix 5570 platform, the 1756-L75 supports up to 8 MB of user memory and is fully compatible with the 1756 chassis backplane, enabling seamless integration with the broader ControlLogix I/O infrastructure. Its robust architecture supports redundant controller configurations, making it the preferred choice for safety-sensitive and high-availability applications where unplanned downtime carries significant operational and financial consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-L75 is rarely deployed in isolation — its true value is realized as the intelligent core of a fully integrated ControlLogix control system. In a typical heavy-industry control cabinet, the processor works in concert with 1756-EN2T EtherNet/IP communication modules to maintain high-speed, deterministic network connectivity across distributed plant segments. Analog and digital I/O expansion is handled by modules such as the 1756-IF16 analog input module and 1756-OB16E digital output module, which feed real-time process data directly to the 1756-L75 for closed-loop control decisions.

For applications requiring functional safety compliance, the 1756-L75 is commonly paired with the 1756-L7SP Safety Partner module, enabling SIL 2 safety-rated control within the same chassis. Power integrity is maintained through the 1756-PA75 AC power supply, which provides stable, filtered DC power to the backplane even under fluctuating grid conditions common in industrial facilities. In high-vibration environments such as mining or offshore platforms, the 1756-TBCH chassis termination block and properly torqued wiring practices ensure that I/O connections remain secure over extended operational cycles.

Communication redundancy is achieved by integrating the 1756-CN2 ControlNet bridge module, which provides a secondary network path for critical process data. For facilities running legacy DCS architectures alongside modern PLC infrastructure, the 1756-L75 supports protocol bridging through third-party gateways, enabling coexistence with PROFIBUS DP, Modbus RTU, and HART field devices. Variable-speed drive coordination — for example, with PowerFlex 755 AC drives — is managed directly through EtherNet/IP, eliminating the need for dedicated drive controllers and reducing panel footprint.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1756-L75 serves as the primary controller for wellhead automation, pipeline SCADA integration, and compressor station control. Its ability to operate reliably at elevated ambient temperatures — common in desert or tropical field installations — and its support for redundant controller configurations make it a standard specification in hazardous-area control rooms where SIL-rated safety instrumented systems (SIS) are mandatory.

In coal and metal mining operations, the processor manages conveyor sequencing, crusher control, and ventilation fan automation. The module’s vibration tolerance and wide operating temperature range allow it to be installed in surface-mounted control enclosures close to the process, reducing signal cable runs and improving response latency. Underground mining applications benefit from the ControlLogix platform’s distributed I/O capability, where remote 1756 chassis connected via fiber-optic ControlNet links extend control reach without compromising scan-cycle determinism.

Power generation facilities — including thermal, hydroelectric, and renewable energy plants — rely on the 1756-L75 for turbine governor control, generator protection relay coordination, and balance-of-plant automation. Water and wastewater treatment plants deploy the module for pump station sequencing, chemical dosing control, and SCADA integration with supervisory HMI systems. In metallurgical and steel production environments, the processor handles rolling mill speed synchronization, furnace temperature profiling, and ladle transfer automation, where millisecond-level response times and zero unplanned downtime are non-negotiable operational requirements.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to its published specifications within the warranty period, TOPNLMS will arrange repair, replacement, or credit at no additional cost. The warranty does not cover damage resulting from improper installation, overvoltage events, or unauthorized modification.

Q2: How is each unit tested before shipment?
Every 1756-L75 unit undergoes pre-shipment functional verification, including power-on self-test (POST) confirmation, backplane communication check, and firmware version validation. Units sourced from authorized distribution channels are accompanied by original manufacturer documentation. Refurbished or reconditioned units, where applicable, are clearly identified and tested to the same functional standards.

Q3: Is the 1756-L75 compatible with my existing ControlLogix chassis and I/O modules?
Yes. The 1756-L75 is fully compatible with all standard 1756 ControlLogix chassis (4, 7, 10, 13, and 17-slot configurations) and the complete range of 1756-series I/O, communication, and motion modules. It is programmable using Studio 5000 Logix Designer v21 and later. For firmware compatibility with specific I/O modules or communication adapters, consult the Rockwell Automation Product Compatibility and Download Center (PCDC).

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains stock of the 1756-L75 and related ControlLogix 5570 series components to support both planned maintenance schedules and emergency breakdown replacement scenarios. Orders are typically processed and shipped within 1–3 business days. For large-volume procurement, blanket order arrangements and reserved stock agreements are available. Contact our technical sales team at [email protected] or +86 18359293191 to discuss your supply continuity requirements.
