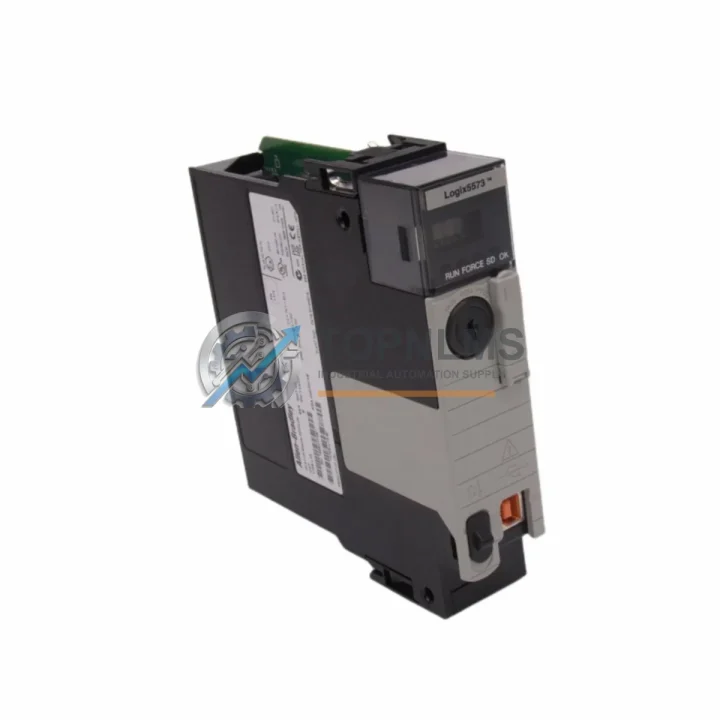

Allen-Bradley 1756-L73 Ruggedized CPU Module

Product Overview

Allen-Bradley 1756-L73 Ruggedized CPU Module: Industrial Resilience for the Harshest Environments

The Allen-Bradley 1756-L73 ControlLogix Logix5573 CPU Module is a high-performance programmable logic controller processor engineered to deliver uncompromising reliability in the most demanding industrial environments. With 8 MB of user memory and the full power of the Rockwell Automation ControlLogix platform, this module is purpose-built for continuous operation in facilities where downtime is not an option — from high-temperature steel mills and petrochemical refineries to moisture-laden water treatment plants and vibration-intensive mining operations.

Designed to withstand wide operating temperature ranges, high-humidity conditions, airborne particulate contamination, and persistent electromagnetic interference (EMI), the 1756-L73 maintains deterministic scan-cycle performance even under electrical noise generated by large variable frequency drives, motor starters, and high-current switching equipment. Its robust backplane communication architecture ensures seamless data exchange with co-resident 1756 chassis modules — including analog I/O, digital I/O, and specialty function cards — without signal degradation in electrically noisy panel environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-L73 is the command core of a fully integrated ControlLogix control system, rarely deployed in isolation. In a typical heavy-industry control cabinet, the processor operates alongside the 1756-EN2T EtherNet/IP communication module, which provides high-speed network connectivity to SCADA systems and HMI panels over a redundant Ethernet backbone. For applications requiring DeviceNet or ControlNet field-bus integration, the 1756-DNB DeviceNet Bridge module and 1756-CNB ControlNet Bridge module extend the system’s reach to distributed field devices without adding latency to the control loop.

On the I/O side, the 1756-L73 coordinates with 1756-IB16 digital input modules and 1756-OB16E digital output modules to monitor and actuate field devices across the process. For analog process variables such as pressure, temperature, and flow, the 1756-IF16 analog input module delivers 16-channel, high-resolution signal acquisition directly into the processor’s data table. In safety-critical zones — such as emergency shutdown (ESD) systems in oil and gas facilities — the 1756-L73 is often paired with a dedicated GuardLogix 1756-L73S safety controller in a dual-chassis architecture, ensuring SIL 2 / SIL 3 functional safety compliance without sacrificing standard control throughput.

Power integrity is maintained by the 1756-PA75 redundant power supply, which provides uninterrupted backplane power even during primary supply fluctuations — a critical requirement in continuous-process industries. Terminal connectivity to field wiring is managed through 1492-AIFM analog interface modules and 1756-TBCH terminal base units, which simplify cabinet wiring and reduce the risk of loose connections under vibration. For remote I/O expansion beyond the local chassis, the 1756-AENT EtherNet/IP adapter enables distributed rack architectures across large plant footprints, keeping the 1756-L73 at the center of a scalable, resilient control architecture.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1756-L73 controls wellhead automation, pipeline SCADA, and compressor station logic where continuous uptime and fail-safe behavior are regulatory requirements. Its deterministic execution and large memory capacity allow engineers to implement complex interlocking logic, alarm management, and historian data logging within a single processor — reducing system complexity and potential failure points.

In mining and mineral processing, the module manages conveyor sequencing, crusher control, and flotation cell automation in environments characterized by heavy vibration, coal dust, and wide ambient temperature swings. The ControlLogix chassis design provides mechanical isolation between modules, preventing vibration-induced contact failures that can plague less robust platforms.

In power generation and electrical utilities, the 1756-L73 is deployed in turbine control, switchgear automation, and substation protection schemes. Its compatibility with high-speed counter inputs and motion control modules makes it suitable for synchronization-critical applications where millisecond-level timing accuracy is essential.

In water and wastewater treatment facilities, the processor handles pump sequencing, chemical dosing control, and SCADA integration across geographically distributed lift stations. Its wide humidity tolerance and sealed module design resist the corrosive, moisture-laden atmospheres common in treatment plant environments.

In metals, steel, and heavy manufacturing, the 1756-L73 withstands the intense electromagnetic interference generated by large arc furnaces, induction heaters, and high-current variable frequency drives — environments where lesser controllers experience spurious faults or communication dropouts. Its proven track record in these sectors makes it a preferred specification for both new installations and legacy system upgrades.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the 1756-L73 module fails to perform to its published specifications within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery and applies to both new and tested-refurbished units as labeled on the order confirmation.

Q2: How is each unit tested before shipment?
Every 1756-L73 module undergoes a multi-stage pre-shipment inspection that includes visual inspection for physical damage, power-on functional verification, firmware version confirmation, and communication port testing. Tested-refurbished units additionally undergo a full burn-in cycle to screen for early-life failures. A test report is available upon request for critical infrastructure procurement.

Q3: Is this module compatible with my existing ControlLogix system?
The 1756-L73 is fully compatible with all standard 1756-series chassis (4-slot through 17-slot), all 1756-series I/O and communication modules, and Studio 5000 Logix Designer v21 and above. It is backward-compatible with RSLogix 5000 projects and supports online firmware upgrades. If you are replacing an existing 1756-L72 or 1756-L71, the 1756-L73 is a direct form-fit-function upgrade with expanded memory capacity.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains dedicated safety stock of high-demand ControlLogix modules, including the 1756-L73, to support both planned maintenance schedules and emergency breakdown replacements. We offer expedited shipping to minimize plant downtime, and our technical team can assist with cross-referencing obsolete part numbers, firmware compatibility checks, and integration guidance. Contact us at [email protected] or +86 18359293191 for availability and lead-time confirmation.
