Allen-Bradley 1756-L65 Original Industrial Spare ControlLogix Compatible

Product Overview

Allen-Bradley 1756-L65 Original Industrial Spare ControlLogix Compatible: System Stability and Industrial Spare Parts Maintenance Value

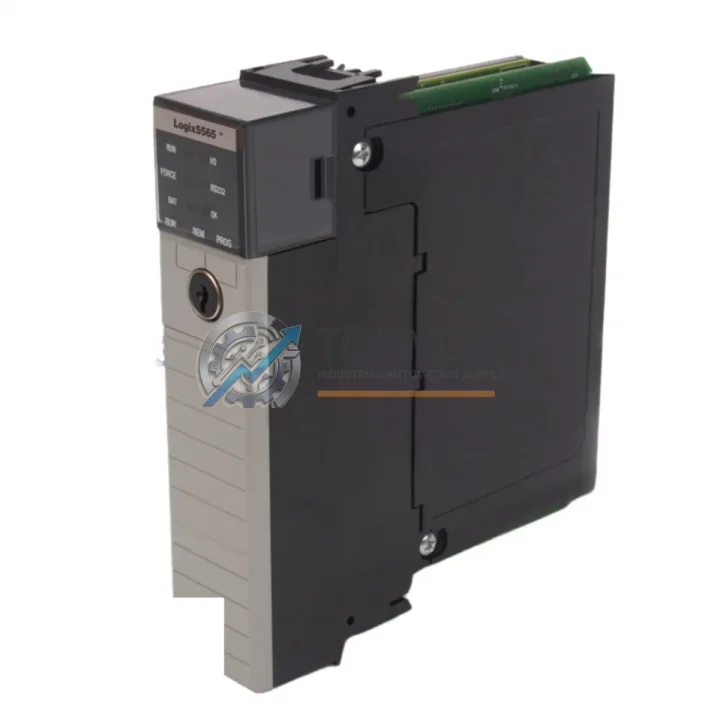

The Allen-Bradley 1756-L65 is a Logix5565 processor module within the ControlLogix 1756 platform — one of the most widely deployed programmable logic controller architectures in global manufacturing, oil & gas, automotive assembly, water treatment, and heavy process industries. As production facilities age and original equipment manufacturers phase out legacy support, maintaining a verified stock of the 1756-L65 becomes a cornerstone of any credible preventive maintenance and business continuity strategy. At TOPNLMS, every 1756-L65 unit is sourced, inspected, and dispatched with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to act decisively when system uptime is at stake.

The 1756-L65 processor supports up to 2MB of user memory and is fully compatible with the ControlLogix 1756 chassis and backplane ecosystem. It executes Ladder Diagram, Function Block Diagram, Structured Text, and Sequential Function Chart programming languages via RSLogix 5000 / Studio 5000 Logix Designer, making it a direct drop-in replacement for facilities already running ControlLogix architecture without requiring reprogramming or system reconfiguration. This compatibility is critical in brownfield environments where minimizing change risk is as important as restoring uptime.

Critical Technical Specs Table

Preventive Maintenance Strategy

When a ControlLogix system requires processor replacement or scheduled maintenance, experienced maintenance engineers know that the 1756-L65 rarely fails in isolation. A comprehensive inspection of the entire control cabinet is essential to prevent repeat failures and ensure long-term system stability. During any planned or emergency maintenance window involving the 1756-L65, the following components in the same chassis and electrical circuit should be simultaneously inspected or replaced as part of a structured preventive maintenance protocol:

The 1756-PA72 or 1756-PB72 power supply module is the first component to verify — an aging or under-spec power supply is a leading cause of processor instability and unexpected resets. Alongside the power supply, inspect all 1756-EN2T EtherNet/IP communication modules for firmware currency and port integrity, as network communication faults frequently manifest as processor faults in ControlLogix diagnostics. If the system uses DeviceNet or ControlNet, the 1756-DNB DeviceNet Bridge module and 1756-CNB ControlNet Bridge module should be checked for connection health and module revision compatibility with the replacement processor firmware.

Digital and analog I/O modules — particularly the 1756-IB16 16-point DC input module and 1756-OB16E 16-point electronically fused output module — should be inspected for blown fuses, degraded terminal connections, and channel-level diagnostics. Loose or corroded terminal blocks on I/O modules are a common source of intermittent faults that are often misdiagnosed as processor errors. While the cabinet is open, inspect all 1756-TBCH or 1756-TBS6H removable terminal assemblies for signs of heat stress or oxidation.

For systems with motion control integration, verify the status of any 1756-M02AE or 1756-M03SE servo drive interface modules and confirm that axis configurations remain intact after processor swap. In facilities running redundant ControlLogix architectures, the 1756-RM2 redundancy module should be tested for synchronization health before and after the processor replacement to confirm seamless failover capability.

Finally, review the condition of the 1756-BATM battery module — the 1756-L65 relies on battery backup to retain program memory during power loss, and a depleted battery in conjunction with a processor replacement is a critical risk point that can result in complete program loss. Proactive battery replacement during the same maintenance window eliminates this risk at minimal cost.

Stocking these components alongside the 1756-L65 as a coordinated spare parts kit reduces mean time to repair (MTTR), eliminates secondary procurement delays, and ensures that a single maintenance event does not cascade into a multi-day production outage.

Strategic Replacement Solutions

The 1756-L65 is a direct replacement for earlier Logix5565 processor revisions and serves as a functional equivalent for facilities transitioning from the 1756-L63 (1MB) or 1756-L61 (512KB) processors where expanded memory capacity is required. Because the 1756-L65 shares the same chassis slot form factor, backplane interface, and programming environment as all ControlLogix 1756 series processors, replacement can be completed without chassis modification, rewiring, or software migration — a critical advantage in time-sensitive production environments.

For facilities managing aging ControlLogix systems originally commissioned in the early 2000s, the 1756-L65 provides a cost-effective path to system life extension without the capital expenditure and engineering risk of a full platform migration to newer Logix 5580 or GuardLogix architectures. Maintaining the existing 1756 platform preserves operator familiarity, existing HMI configurations (including PanelView Plus terminals connected via RSLinx Classic or FactoryTalk View), and validated process logic — all of which represent significant embedded engineering value.

TOPNLMS pre-tests every 1756-L65 unit prior to shipment, verifying firmware revision, memory integrity, and backplane communication function. Units are shipped with original packaging where available, and each order includes a test report and 12-month warranty certificate. Expedited shipping options are available for emergency breakdown scenarios, with same-day dispatch available for in-stock units.

Support FAQ

Q1: Is the 1756-L65 compatible with my existing ControlLogix 1756 chassis and I/O modules?
Yes. The 1756-L65 is fully compatible with all standard ControlLogix 1756 chassis sizes (4, 7, 10, 13, and 17-slot) and all 1756-series I/O, communication, and motion modules. No chassis modification or rewiring is required. Ensure your RSLogix 5000 / Studio 5000 project file is backed up before swapping the processor, and verify firmware revision compatibility with your existing module set.

Q2: What is the warranty coverage and what does pre-shipment testing include?
Every 1756-L65 supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes power-on verification, backplane communication check, memory integrity test, and firmware revision confirmation. A test report is included with each shipment.

Q3: How quickly can I receive the 1756-L65 for an emergency breakdown situation?
For in-stock units, same-day dispatch is available for orders confirmed before the daily cut-off time. Expedited international shipping options are available to most industrial regions. Contact [email protected] or call +86 18359293191 to confirm stock availability and arrange priority shipment for breakdown emergencies.

Q4: Should I stock additional ControlLogix components alongside the 1756-L65?
Yes — a coordinated spare parts strategy significantly reduces MTTR. At minimum, consider stocking the 1756-BATM battery module, the chassis power supply (1756-PA72 or 1756-PB72), and at least one EtherNet/IP communication module (1756-EN2T) alongside the processor. For facilities with high uptime requirements, a complete hot-spare chassis assembly with pre-loaded program backup is the gold standard for ControlLogix business continuity planning.
