Allen-Bradley 1756-L62S GuardLogix 5562S Upgrade Solution

Product Overview

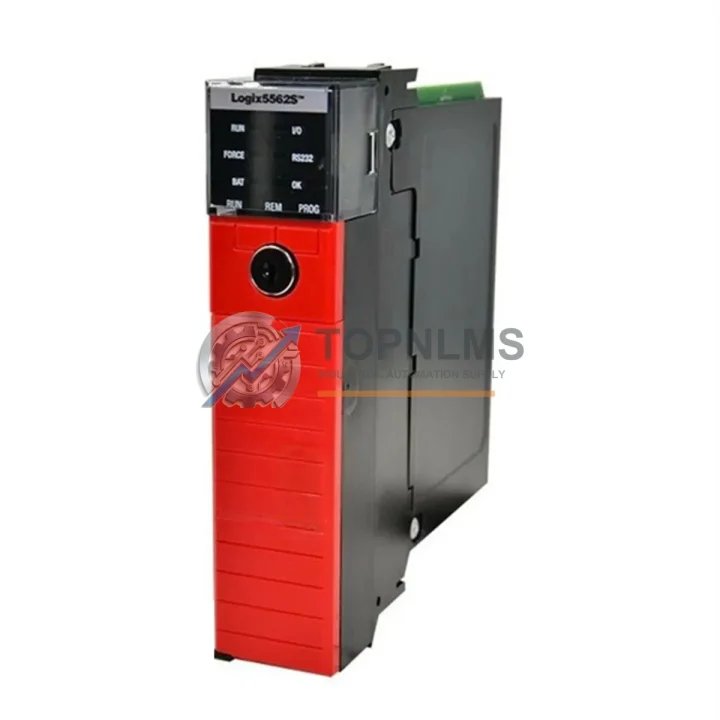

Allen-Bradley 1756-L62S GuardLogix 5562S Upgrade Solution: Seamless Safety System Migration

The Allen-Bradley 1756-L62S GuardLogix 5562S Safety Processor is a cornerstone component in Rockwell Automation’s integrated safety architecture. As legacy safety PLC systems age and original hardware reaches end-of-life, facilities running older GuardLogix or ControlLogix platforms face increasing pressure to migrate without disrupting production. This replacement and upgrade solution is engineered to deliver a smooth, low-risk transition — preserving your existing wiring infrastructure, control cabinet layout, I/O mapping, and safety program logic while bringing your system into compliance with current SIL 2 functional safety standards.

Whether you are replacing a failed 1756-L62S unit, upgrading from an earlier GuardLogix 5560 processor such as the 1756-L61S or 1756-L63S, or migrating from a legacy SLC 500 or PLC-5 safety platform, this processor slots directly into the standard 1756 ControlLogix chassis — including the 1756-A4, 1756-A7, 1756-A10, and 1756-A13 rack sizes — without requiring chassis replacement or major cabinet re-engineering. The 1756-L62S supports the standard 1756 backplane and is fully compatible with the 1756-PA72 and 1756-PB72 power supply modules already installed in most ControlLogix cabinets.

For facilities running EtherNet/IP-based control networks, the 1756-L62S integrates natively with 1756-EN2T and 1756-EN2TR communication modules, maintaining your existing network topology and device addressing. If your plant uses DeviceNet or ControlNet for distributed I/O, the 1756-DNB DeviceNet Bridge and 1756-CNB ControlNet Bridge modules remain fully compatible, eliminating the need to rewire field devices or reconfigure network segments during the upgrade.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1756-L62S migration rarely involves the processor alone. In most ControlLogix safety system upgrades, the 1756-LSP Safety Partner module must be installed adjacent to the processor in the same chassis — this pairing is mandatory for SIL 2 operation and should be sourced simultaneously to avoid commissioning delays. For facilities that have not yet migrated their programming environment, the transition from RSLogix 5000 to Studio 5000 Logix Designer is straightforward, and existing ladder logic and function block programs can be imported with minimal rework.

On the I/O side, existing 1756-IB16 digital input modules, 1756-OB16E digital output modules, and 1756-IF8 analog input modules remain fully compatible and do not require replacement during the processor upgrade. If your system uses distributed safety I/O over EtherNet/IP, the 1791DS-IB12 and 1791DS-OB8 POINT Guard I/O modules continue to operate without reconfiguration. For plants expanding their safety zone coverage during the migration, adding 1756-EN2TR communication modules provides ring topology redundancy on the EtherNet/IP network, significantly improving fault tolerance without additional cabinet space.

Where legacy DeviceNet field devices remain in service, the 1756-DNB DeviceNet Scanner Bridge allows the new 1756-L62S to continue managing those devices without rewiring. Similarly, if your facility uses a 1756-CNB ControlNet Bridge for time-critical I/O, it integrates seamlessly with the upgraded processor. For applications requiring signal isolation between the safety PLC and legacy analog instrumentation, DIN-rail-mounted signal isolators can be inserted at the terminal block level without modifying the existing cabinet wiring harness.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring when replacing the 1756-L62S?
Yes. The 1756-L62S is a processor-only module that connects via the 1756 backplane. All field wiring terminates at I/O modules, which remain unchanged. No rewiring is required for a like-for-like processor replacement.

Q: Do I need to rewrite my safety program?
No. Safety programs developed in RSLogix 5000 v16 or later can be imported into Studio 5000 Logix Designer. Safety task logic, safety tags, and safety I/O configuration are preserved. A full safety validation test is still required after any processor replacement per IEC 62061 and your site’s functional safety management plan.

Q: Is the 1756-L62S compatible with my existing EtherNet/IP network?
Yes. The processor communicates over the 1756 backplane to 1756-EN2T or 1756-EN2TR communication modules. Your existing EtherNet/IP device addressing, CIP connections, and produced/consumed tag configurations are retained without modification.

Q: What happens to my DeviceNet and ControlNet devices?
Existing 1756-DNB and 1756-CNB bridge modules remain in the chassis and continue to manage their respective networks. The new processor recognizes these modules automatically upon first scan, and no network reconfiguration is required.

Q: How much physical space does the 1756-L62S require in the cabinet?
The 1756-L62S occupies a single slot in any standard 1756 chassis. The mandatory 1756-LSP Safety Partner occupies one additional adjacent slot. Total footprint is two slots — identical to the predecessor GuardLogix 5560 configuration, so no cabinet re-engineering is needed.

Q: Can I use the same 1756-PA72 power supply?
Yes. The 1756-PA72 (120/240 VAC) and 1756-PB72 (24 VDC) power supplies are fully compatible with the 1756-L62S and do not need to be replaced during the upgrade.

Warranty Assurance

Every 1756-L62S GuardLogix 5562S Safety Processor shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification testing to confirm backplane communication, memory integrity, and firmware version. Units are shipped in anti-static packaging with full traceability documentation.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides direct replacement support with priority dispatch to minimize your system downtime. Our technical team is available to assist with pre-shipment compatibility verification, firmware version confirmation, and post-installation commissioning queries. Stock is maintained for fast dispatch, with international shipping available to most industrial regions. For urgent replacement requirements, expedited shipping options are available upon request.

For procurement inquiries, compatibility verification, or bulk order pricing, contact our team directly before placing your order to confirm the exact firmware revision and hardware series required for your application.
