Allen-Bradley 1756-L60M03SE Upgrade for ControlLogix L6

Product Overview

Allen-Bradley 1756-L60M03SE Upgrade for ControlLogix L6: Seamless Transition from Legacy Systems

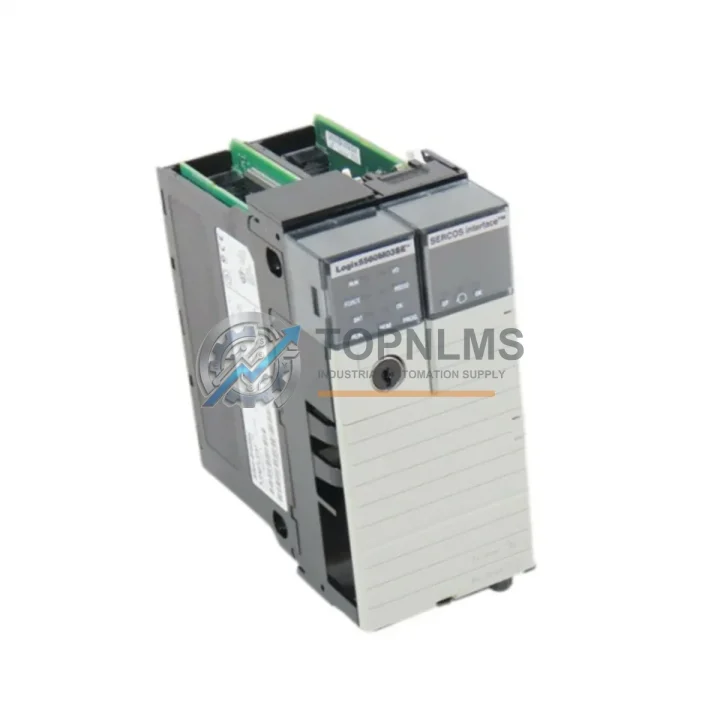

The Allen-Bradley 1756-L60M03SE is a ControlLogix L6 Series PLC controller engineered for mission-critical industrial automation environments. As legacy ControlLogix L5 and early L6 controllers reach end-of-life or become increasingly difficult to source, the 1756-L60M03SE represents the definitive upgrade path — delivering expanded memory, enhanced processing speed, and full backward compatibility with existing ControlLogix chassis, I/O modules, and communication infrastructure. Whether you are managing a planned modernization or responding to an unplanned failure, TOPNLMS maintains verified stock of the 1756-L60M03SE ready for immediate dispatch.

Migrating from an older ControlLogix controller such as the 1756-L55M22 or 1756-L55M12 to the 1756-L60M03SE requires minimal re-engineering. The controller slots directly into any standard 1756 chassis — including the 1756-A4, 1756-A7, 1756-A10, and 1756-A17 rack configurations — without mechanical modification. Existing 1756-PA72 or 1756-PB72 power supply modules remain fully compatible, eliminating the need for power infrastructure changes. The controller retains native support for ControlNet, EtherNet/IP, and DeviceNet communication protocols, meaning your existing 1756-CN2 ControlNet bridge modules and 1756-ENBT EtherNet/IP bridge modules continue to operate without reconfiguration.

From a programming perspective, projects developed in RSLogix 5000 or Studio 5000 Logix Designer for earlier L5 or L6 controllers can be imported and converted to the 1756-L60M03SE with minimal revision. Tag databases, ladder logic routines, function block diagrams, and structured text programs are preserved through the migration process. Engineers familiar with the ControlLogix programming environment will find the transition straightforward, significantly reducing commissioning time and the risk of introducing errors during the upgrade.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1756-L60M03SE rarely involves the controller alone. In most ControlLogix upgrade projects, engineers simultaneously address adjacent components to ensure system-wide reliability. The 1756-M03SE Secure Digital memory card is the recommended non-volatile storage solution for the L60M03SE, replacing the CompactFlash cards used in L55 series controllers and providing faster program load times and improved data retention. For systems requiring expanded I/O, the 1756-IB16 digital input module and 1756-OB16E digital output module integrate directly into the existing chassis without wiring changes to field devices.

Communication infrastructure upgrades are often performed in parallel. The 1756-EN2T EtherNet/IP communication module provides dual-port EtherNet/IP connectivity and is the preferred replacement for older 1756-ENBT modules, offering improved throughput and ring topology support for Device Level Ring (DLR) networks. Where ControlNet remains in use, the 1756-CN2R ControlNet bridge module supports redundant media configurations, enhancing network resilience in continuous process environments.

For facilities upgrading HMI infrastructure alongside the controller, PanelView Plus 7 terminals communicate natively with the 1756-L60M03SE over EtherNet/IP, requiring only an IP address update in the HMI project to re-establish connectivity. In control cabinets where space is constrained, the 1492-AIFM series analog interface modules and 1756-TBCH terminal base units allow field wiring to remain undisturbed during the controller swap, dramatically reducing installation time and the risk of wiring errors. Where signal isolation is required between legacy field devices and the new controller, DIN-rail-mounted signal isolators and loop-powered transmitters can be inserted without modifying the existing conduit or cable runs.

Retrofit Guidance FAQ

Q: Can the 1756-L60M03SE replace an L55 series controller without modifying the chassis or power supply?
A: Yes. The 1756-L60M03SE occupies a standard 1756 controller slot and is electrically compatible with all 1756-PA72 and 1756-PB72 power supply modules. No chassis or power supply replacement is required. The controller draws within the standard slot power budget of the 1756 chassis family.

Q: Will my existing RSLogix 5000 program run on the 1756-L60M03SE after migration?
A: Programs developed for L55 or earlier L6 controllers can be opened in Studio 5000 Logix Designer and saved to the L60M03SE firmware revision. Tag structures, I/O tree configurations, and communication paths are preserved. Minor revision of motion or safety task configurations may be required depending on the original firmware version. TOPNLMS technical support can advise on firmware compatibility prior to shipment.

Q: Does the 1756-L60M03SE support the same communication modules already installed in my rack?
A: Yes. All 1756 series communication modules — including EtherNet/IP, ControlNet, and DeviceNet bridges — remain fully compatible. The controller communicates with these modules via the ControlLogix backplane without any protocol or addressing changes. Existing network topology, IP addressing, and node configurations are preserved.

Q: What does the 12-month warranty from TOPNLMS cover?
A: Every 1756-L60M03SE shipped by TOPNLMS is subject to pre-shipment functional testing covering power-on self-test, memory verification, backplane communication, and firmware integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides replacement unit dispatch within 5 business days. Extended support and long-term supply agreements are available for MRO and OEM customers.

Warranty Assurance

TOPNLMS applies a rigorous pre-shipment inspection protocol to every 1756-L60M03SE unit before dispatch. Each controller undergoes power-on self-test, backplane communication verification, memory read/write validation, and firmware version confirmation. Units are packaged in anti-static shielding with foam-lined cartons to prevent transit damage. Shipment tracking is provided for all orders, with express logistics options available for urgent replacement scenarios.

The 12-month warranty commences from the date of delivery and covers all functional defects attributable to the unit itself. TOPNLMS maintains a dedicated after-sales response team reachable at [email protected] and +86 18359293191. For customers managing planned maintenance schedules or multi-site MRO programs, TOPNLMS offers reserved stock arrangements and priority dispatch agreements to ensure continuity of supply for the 1756-L60M03SE and related ControlLogix components.

Long-term supply security is a core commitment. As Rockwell Automation continues to transition customers toward newer Logix platforms, TOPNLMS actively sources and validates legacy and transitional ControlLogix inventory to support customers who require extended operational life from their existing control system architecture. Whether you need a single replacement unit or a standing order for multiple sites, TOPNLMS is positioned to support your procurement requirements with verified stock, documented testing, and guaranteed warranty coverage.
