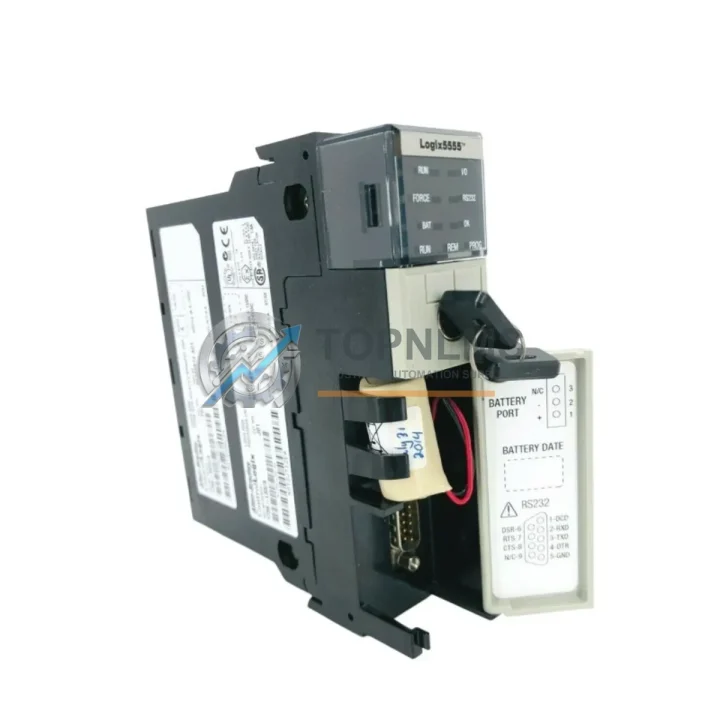

Allen-Bradley 1756-L55M22 Ruggedized PLC Processor for Harsh Environments

Product Overview

Allen-Bradley 1756-L55M22 Ruggedized PLC Processor for Harsh Environments

The Allen-Bradley 1756-L55M22 is a high-performance ControlLogix Logix5555 processor module engineered for continuous, reliable operation in the most demanding industrial environments. With 1.5MB of non-volatile memory and the proven ControlLogix 1756 chassis architecture, this processor delivers deterministic control, superior noise immunity, and robust fault tolerance — making it the backbone of mission-critical automation systems across oil & gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing.

Designed to withstand extreme temperature swings, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI), the 1756-L55M22 maintains stable execution of ladder logic, function block, structured text, and sequential function chart programs without interruption. Its non-volatile memory architecture ensures that program integrity is preserved even through unexpected power loss events — a critical requirement for continuous production lines and safety-instrumented systems.

In harsh-environment deployments, the 1756-L55M22 operates as the central controller within a ControlLogix 1756 chassis, coordinating I/O data exchange across local and remote racks via the 1756 backplane. It communicates natively over EtherNet/IP using 1756-ENBT or 1756-EN2T communication modules, enabling seamless integration with SCADA systems, HMI panels, and distributed control networks. For legacy installations, ControlNet and DeviceNet connectivity is supported through the corresponding 1756-CNB and 1756-DNB bridge modules, preserving investment in existing field wiring and instrumentation.

The processor pairs directly with the full range of ControlLogix 1756 I/O modules — including digital input/output modules such as the 1756-IB16 and 1756-OB16E, analog modules such as the 1756-IF8 and 1756-OF8, and specialty modules including the 1756-HSC high-speed counter and 1756-L1M1 motion control modules — to deliver comprehensive process and discrete control from a single unified platform. In safety-critical applications, the 1756-L55M22 can be integrated alongside GuardLogix safety processors and 1791DS safety I/O modules to form a dual-controller safety architecture compliant with IEC 61508 SIL 2 requirements.

For power-sensitive or space-constrained control cabinets, the 1756-L55M22 operates within the 1756-A7 or 1756-A13 chassis powered by the 1756-PA72 or 1756-PB72 power supply modules, which provide regulated, filtered DC power with built-in diagnostics. In environments with severe voltage fluctuations or transient surges — common in steel mills, cement plants, and petrochemical facilities — these power supplies protect the processor and associated I/O from damage, extending service life and reducing unplanned downtime.

The 1756-L55M22 supports Rockwell Automation’s RSLogix 5000 and Studio 5000 Logix Designer programming environments, enabling engineers to develop, simulate, and deploy control programs with full online editing capability. Integrated diagnostics and fault logging allow maintenance teams to identify and resolve issues rapidly, minimizing mean time to repair (MTTR) in facilities where every minute of downtime carries significant financial and safety consequences.

As a stocked spare part, the 1756-L55M22 provides immediate replacement value for facilities operating aging ControlLogix systems. Maintaining a verified spare on-site eliminates the risk of extended lead times from OEM channels during critical failures. Each unit supplied by TOPNLMS undergoes functional verification testing prior to shipment, covering memory integrity, backplane communication, and program execution — ensuring the module is ready for immediate installation upon arrival.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-L55M22 is rarely deployed in isolation — its true value is realized as the central intelligence of a fully integrated ControlLogix control system. In a typical heavy-industry control cabinet, the processor shares a 1756-A13 chassis with a 1756-EN2T EtherNet/IP communication module for high-speed network connectivity, a 1756-IB32 32-point digital input module for field device status monitoring, and a 1756-OB32 digital output module for actuator and relay control. Analog process variables — temperature, pressure, flow, and level — are acquired through 1756-IF16 analog input modules and conditioned before being processed by the Logix5555 engine.

For motion-intensive applications such as conveyor systems, rolling mills, or robotic assembly lines, the 1756-L55M22 coordinates with 1756-M02AE servo drive interface modules and Kinetix 6000 or Kinetix 5700 servo drives, delivering synchronized multi-axis motion with microsecond-level precision. In process industries where safety integrity is paramount, the processor operates alongside a 1756-L71S GuardLogix safety controller and 1791DS-IB12 safety I/O modules, forming a dual-controller architecture that maintains SIL 2 functional safety without requiring a separate safety PLC platform.

Power integrity for the entire chassis is maintained by the 1756-PA72 AC power supply, which provides clean, regulated 1.2A backplane power with built-in short-circuit protection and diagnostic LEDs for rapid fault identification. In facilities with unreliable grid power — such as remote mining sites or offshore platforms — an uninterruptible power supply (UPS) module or external 24VDC backup system is recommended to complement the 1756-PB72 DC power supply variant, ensuring the processor completes its current scan cycle and logs a clean shutdown event before power is lost.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1756-L55M22 controls wellhead automation panels, pipeline SCADA RTU nodes, and compressor station control systems. Its deterministic scan time and non-volatile memory make it suitable for unattended remote installations where manual intervention is impractical. The processor’s EtherNet/IP connectivity enables integration with Emerson DeltaV DCS systems and Honeywell Experion PKS platforms via OPC-UA gateways, supporting hybrid control architectures common in brownfield modernization projects.

In mining and mineral processing, the 1756-L55M22 manages crusher control panels, conveyor sequencing systems, and flotation cell automation. The harsh dust and vibration environment of underground and open-pit mining demands a processor with proven mechanical robustness and wide operating temperature tolerance — characteristics that have made the ControlLogix platform the preferred choice of major mining operators globally. Redundant chassis configurations using the 1756-SRM chassis redundancy module further enhance availability in continuous-process mining operations where unplanned shutdowns result in significant ore loss.

Power generation facilities — including coal-fired, gas turbine, hydroelectric, and nuclear auxiliary systems — rely on the 1756-L55M22 for boiler management, turbine control, and balance-of-plant automation. The processor’s ability to handle high-density I/O through remote 1756 racks connected via ControlNet ensures that distributed field instruments and actuators across large plant footprints are monitored and controlled with sub-millisecond response times. Water and wastewater treatment plants deploy the 1756-L55M22 in pump station control, chemical dosing systems, and SCADA-integrated telemetry nodes, where its long-term availability and backward compatibility with existing ControlLogix infrastructure reduce lifecycle costs.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every 1756-L55M22 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. The warranty covers defects in materials and workmanship, including processor failure, memory corruption, and backplane communication faults under normal operating conditions. In the event of a warranty claim, TOPNLMS will provide a replacement unit or full refund after fault verification. Contact [email protected] to initiate a warranty claim.

Q2: What pre-shipment testing is performed on each unit?
Each 1756-L55M22 undergoes a structured functional verification process before dispatch. Testing includes power-on self-test (POST) verification, non-volatile memory read/write integrity check, backplane communication handshake with a live 1756 chassis, and visual inspection for physical damage, connector integrity, and firmware label accuracy. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the 1756-L55M22 compatible with my existing ControlLogix chassis and I/O modules?
Yes. The 1756-L55M22 is fully compatible with all standard 1756-series chassis (1756-A4 through 1756-A17) and the complete range of ControlLogix 1756 I/O, communication, and specialty modules. It is programmable with RSLogix 5000 v13 and later, as well as Studio 5000 Logix Designer v21 and later. If you are upgrading from an earlier Logix5550 or Logix5553 processor, program migration is supported with minor revision review.

Q4: Can TOPNLMS guarantee long-term supply and support for this module?
TOPNLMS maintains dedicated stock of ControlLogix processor modules including the 1756-L55M22 to support customers with ongoing maintenance, spare-parts programs, and emergency replacement needs. We work with verified supply chain partners to ensure consistent availability even for discontinued or end-of-life Rockwell Automation part numbers. For volume procurement, scheduled delivery agreements, or long-term supply contracts, contact our sales team at [email protected] or +86 18359293191.
