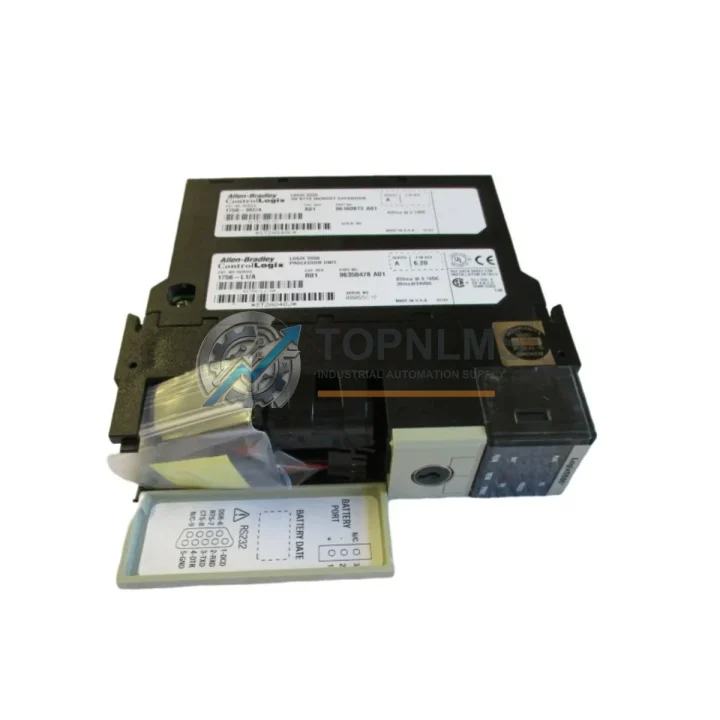

Allen-Bradley 1756-L1M2 Replacement for ControlLogix

Product Overview

Allen-Bradley 1756-L1M2 Replacement for ControlLogix: Smooth Migration from Legacy to Modern Control

The Allen-Bradley 1756-L1M2 is a first-generation ControlLogix processor with 750KB of user memory, designed for the 1756 chassis platform. As this model has been discontinued by Rockwell Automation, industrial facilities running legacy ControlLogix systems face increasing pressure to source reliable replacement units or plan a structured migration to a current-generation processor. TOPNLMS maintains verified stock of the 1756-L1M2 and compatible upgrade paths, enabling your engineering team to execute a controlled transition with minimal disruption to production.

Whether your plant is operating a continuous chemical process, a high-throughput automotive assembly line, or a critical water treatment facility, the 1756-L1M2 processor has historically served as the central execution engine coordinating I/O scanning, ladder logic execution, and communication across the ControlLogix backplane. Replacing or upgrading this processor requires careful attention to memory compatibility, firmware revision alignment, and backplane slot configuration — all areas where TOPNLMS provides pre-shipment technical verification.

For facilities choosing a direct replacement, the 1756-L1M2 slots into any standard 1756 chassis — including the 1756-A4, 1756-A7, 1756-A10, and 1756-A13 — without mechanical modification. The processor communicates with installed I/O modules such as the 1756-IB16 (16-point 24VDC digital input), 1756-OB16E (16-point electronically fused digital output), and 1756-IF8 (8-channel analog input) through the native ControlLogix backplane protocol, preserving existing wiring and field device connections entirely.

For facilities planning a forward migration to a current-generation processor such as the 1756-L73 or 1756-L83E, the upgrade path involves exporting the existing RSLogix 5000 project file, verifying tag database compatibility, and updating the controller properties to match the new processor’s memory and firmware profile. In most cases, the physical I/O wiring, terminal block connections via 1756-TBCH or 1492-CABLE series wiring systems, and field instrument loops remain completely unchanged. The 1756-EN2T EtherNet/IP communication module and 1756-DNB DeviceNet bridge module installed in the same chassis continue to operate without reconfiguration, significantly reducing commissioning time.

A common migration scenario involves plants that originally deployed the 1756-L1M2 alongside a 1756-ENBT EtherNet/IP bridge for supervisory SCADA connectivity. When upgrading to a 1756-L73, the ENBT can be retained in the chassis or replaced with the higher-bandwidth 1756-EN2T, depending on network throughput requirements. The existing Logix Designer project — formerly RSLogix 5000 — can be imported directly, with the controller type updated in the project properties. Routine I/O module configuration, produced/consumed tag relationships, and motion group definitions are preserved through this process.

For distributed control architectures where the 1756-L1M2 acts as a remote I/O controller linked to a primary PLC via ControlNet using the 1756-CNB module, the migration strategy focuses on maintaining the ControlNet node address and scheduled connection parameters. TOPNLMS can supply both the replacement 1756-L1M2 and the associated 1756-CNB or 1756-CN2 ControlNet bridge modules as a matched set, reducing the risk of firmware incompatibility between chassis components.

Power supply compatibility is another critical factor in any ControlLogix processor replacement. The 1756-L1M2 draws power from the chassis backplane, which is fed by a 1756-PA72 or 1756-PB72 power supply module. These power supplies remain fully compatible with current-generation ControlLogix processors, so no power infrastructure changes are required during a processor swap. TOPNLMS verifies power supply output ratings against processor load specifications before shipment on request.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1756-L1M2 replacement or migration depends on the coordinated availability of several supporting components. The 1756 chassis itself — whether a 4-slot 1756-A4 or a 10-slot 1756-A10 — must be in serviceable condition, with backplane connectors free of corrosion or mechanical damage. The 1756-PA72 AC power supply or 1756-PB72 DC power supply must deliver stable voltage within specification; TOPNLMS recommends bench-testing the power supply output before installing a replacement processor.

Communication infrastructure is equally important. If the existing system uses the 1756-ENBT for EtherNet/IP connectivity to a SCADA or MES system, this module can remain in service during a processor swap. For systems using the 1756-DNB DeviceNet scanner to communicate with variable frequency drives, motor starters, or distributed I/O adapters on a DeviceNet network, the scanner’s node list and I/O map are stored in the module itself and are not affected by a processor replacement. Similarly, the 1756-CNB ControlNet bridge retains its scheduled connection table independently of the processor.

On the I/O side, analog modules such as the 1756-IF8 and 1756-OF8 continue to operate without recalibration after a processor swap, provided the new processor’s I/O configuration matches the existing module slot assignments. Digital I/O modules including the 1756-IB32 (32-point input) and 1756-OB32 (32-point output) are fully backward compatible across all ControlLogix processor generations. TOPNLMS can supply matched sets of processor and I/O modules for complete control cabinet rebuilds or emergency line restoration projects.

Retrofit Guidance FAQ

Q: Can I replace the 1756-L1M2 with a newer processor without rewriting my ladder logic program?
A: In most cases, yes. The existing RSLogix 5000 project file can be opened in Studio 5000 Logix Designer and the controller type updated to a current-generation processor such as the 1756-L73. Tag databases, rung logic, and I/O module configurations are preserved. Minor adjustments may be required for firmware-specific instructions introduced after the original project was created. TOPNLMS recommends performing a full offline simulation before downloading to the new processor.

Q: Will my existing field wiring and terminal blocks need to be changed?
A: No. The 1756-L1M2 processor connects to the chassis backplane only — it has no direct field wiring. All field wiring terminates at the I/O modules (e.g., 1756-IB16, 1756-OB16E) and their associated terminal blocks or 1492-series wiring systems. These remain completely unchanged during a processor replacement or upgrade.

Q: Is the 1756-L1M2 compatible with current EtherNet/IP network infrastructure?
A: The 1756-L1M2 itself does not have a built-in EtherNet/IP port. EtherNet/IP connectivity is provided by a separate 1756-ENBT or 1756-EN2T module installed in the same chassis. These communication modules are independent of the processor and remain fully functional with current EtherNet/IP switches, SCADA systems, and HMI platforms.

Q: What is the lead time and how is the unit tested before shipment?
A: TOPNLMS ships from verified stock in Xiamen, China. Each 1756-L1M2 unit undergoes power-on functional testing and firmware version verification before dispatch. Standard international shipping typically delivers within 5–10 business days. Expedited options are available for emergency line-down situations. All units are covered by a 12-month warranty from the date of shipment.

Warranty Assurance

Every Allen-Bradley 1756-L1M2 supplied by TOPNLMS is backed by a 12-month warranty covering functional defects under normal operating conditions. Prior to shipment, each unit is subjected to a structured pre-delivery inspection that includes power-on verification, backplane communication testing, and firmware revision confirmation. Units that do not pass inspection are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical team is available to assist with installation questions, firmware compatibility queries, and migration planning via email at [email protected] or by phone at +86 18359293191. Response time for warranty and technical inquiries is typically within one business day.

For customers managing planned maintenance schedules or capital spares programs, TOPNLMS offers reserved stock arrangements for critical discontinued modules including the 1756-L1M2, ensuring supply continuity for multi-year maintenance windows without requiring large upfront inventory investments.
