Allen-Bradley 1756-IV32 Ruggedized Digital Input Module for Harsh Environments

Product Overview

Allen-Bradley 1756-IV32 Ruggedized Digital Input Module for Harsh Environments

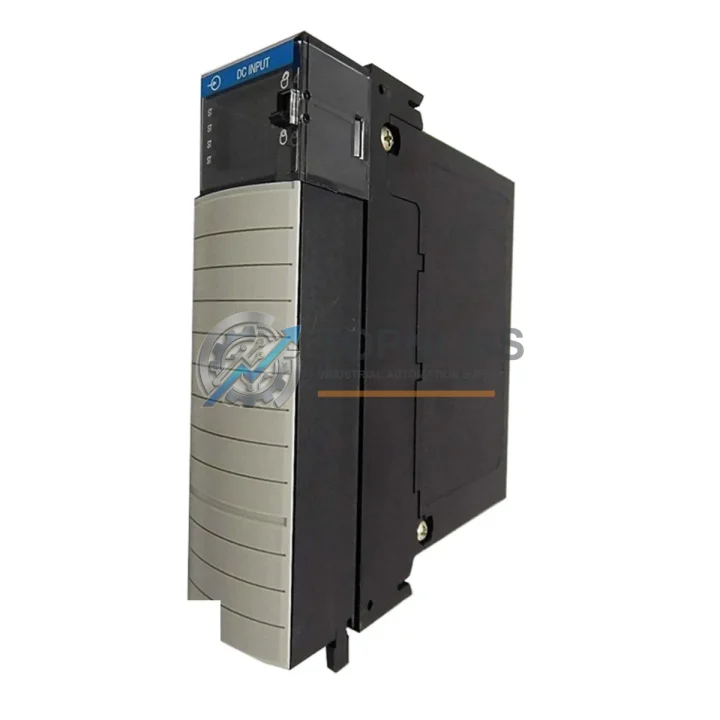

The Allen-Bradley 1756-IV32 is a 32-point DC sourcing digital input module engineered for the ControlLogix 1756 platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to operate reliably in the most demanding field conditions, the 1756-IV32 delivers consistent signal acquisition across high-temperature, high-humidity, dust-laden, and electromagnetically noisy environments. Whether installed in a petrochemical control cabinet, a mining site’s distributed I/O rack, or a continuous steel-rolling line, this module maintains deterministic scan performance and robust field-side isolation that safety-critical processes demand.

At TOPNLMS, every 1756-IV32 unit is sourced through verified supply channels, individually inspected, and shipped with a 12-month quality warranty — giving procurement engineers and maintenance teams the confidence to specify it as both a primary installation component and a strategic spare.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-IV32 does not operate in isolation — it is the field-sensing backbone of a broader ControlLogix control architecture. In a typical heavy-industry control cabinet, it works in concert with the 1756-L73 ControlLogix controller, which processes the 32 discrete input signals and executes ladder logic or function block programs in real time. Power integrity for the entire rack is maintained by the 1756-PA75 AC power supply, which provides regulated 1.2 A backplane power with built-in surge protection — essential when the cabinet is located near large motor drives or welding equipment.

For applications requiring safety-rated discrete input monitoring, the 1756-IV32 is commonly paired with the 1756-L7SP Safety ControlLogix controller or supplemented by a 1791DS-IB8XOBV4 GuardLogix safety I/O module to handle SIL 2 / PLd safety loops. On the output side, the 1756-OB32 32-point DC sourcing digital output module mirrors the IV32’s form factor and provides a matched I/O pair for full discrete control of field actuators, solenoids, and relay coils.

In distributed architectures — common in oil refinery units or large water treatment plants — the 1756-IV32 is deployed in remote I/O racks connected via the 1756-EN2T EtherNet/IP communication module, enabling deterministic I/O scanning over standard industrial Ethernet infrastructure. Where legacy ControlNet backbones remain in service, the 1756-CNB ControlNet bridge module provides seamless integration. Terminal-side field wiring is typically landed on 1492-CABLE series pre-wired interface cables and 1492-IFM digital I/O interface modules, which reduce wiring errors and simplify maintenance in high-density panels.

For variable-speed drive applications where the 1756-IV32 monitors drive status feedback signals, it is frequently installed alongside PowerFlex 755 AC drives and their associated 20-750-ENETR EtherNet/IP dual-port option cards, forming a tightly integrated motion and I/O control system. Surge protection at the field wiring terminals is handled by Phoenix Contact TRABTECH surge protection devices or equivalent DIN-rail mounted transient voltage suppressors, safeguarding the module’s input circuitry from lightning-induced transients on long cable runs.

Application in Critical Infrastructure

The 1756-IV32 has earned its place as a trusted component across the world’s most demanding industrial sectors. In upstream oil and gas facilities — wellhead control panels, gas compression stations, and FPSO vessel automation systems — the module monitors discrete signals from pressure switches, level switches, and emergency shutdown (ESD) valve position feedback. Its group isolation architecture prevents a fault on one field circuit from propagating to adjacent input groups, a critical characteristic in hazardous area installations classified as Class I Division 2.

In coal and metal mining operations, the 1756-IV32 is deployed in conveyor belt control systems, crusher monitoring panels, and ventilation safety interlocks. The module’s wide operating temperature range and vibration tolerance allow it to function reliably in underground substations and surface processing plants where ambient conditions fluctuate significantly across seasons.

At thermal and hydroelectric power generation facilities, the module integrates into turbine control systems and balance-of-plant automation, monitoring discrete status signals from circuit breakers, motor starters, and valve actuators. Its compatibility with the full ControlLogix ecosystem means it can be incorporated into existing DCS-adjacent architectures without requiring controller replacement or protocol conversion.

In municipal and industrial water treatment plants, the 1756-IV32 handles discrete input monitoring for pump run/fail status, flow switch confirmation, and chemical dosing interlock signals. The module’s non-condensing humidity rating and sealed backplane connector make it suitable for the damp, chemically active environments typical of water and wastewater facilities.

Steel mills and aluminum smelters represent another core application domain. Here, the module monitors discrete feedback from rolling mill drives, ladle transfer cars, and furnace door position sensors — all in environments characterized by intense electromagnetic interference from large rectifiers and induction furnaces. The 1756-IV32’s IEC 61000-4 series EMI immunity ratings ensure signal integrity is maintained even in close proximity to high-current bus bars and variable frequency drives.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every 1756-IV32 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Each unit is logged by serial number at the time of shipment, providing a traceable warranty record for your maintenance documentation.

Q2: How is each unit tested before shipment?
All 1756-IV32 modules undergo pre-shipment functional verification including backplane communication check, per-point input signal response testing, and visual inspection for physical damage or counterfeit indicators. Units that do not pass inspection are quarantined and never shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1756-IV32 compatible with all ControlLogix chassis and firmware versions?
The 1756-IV32 is compatible with all standard 1756 ControlLogix chassis (4-slot through 17-slot) and is supported across a wide range of Studio 5000 / RSLogix 5000 firmware revisions. TOPNLMS technical staff can advise on firmware compatibility for your specific controller revision prior to purchase — contact us with your 1756-L7x or 1756-L8x controller catalog number and firmware version.

Q4: Can TOPNLMS support long-term supply continuity for this module?
Yes. TOPNLMS maintains strategic inventory of high-demand ControlLogix I/O modules including the 1756-IV32 to support both planned maintenance schedules and emergency breakdown replacements. For facilities operating continuous production lines where unplanned downtime is unacceptable, we recommend establishing a blanket order or consignment stock arrangement. Contact our team to discuss volume pricing and dedicated inventory reservation.
