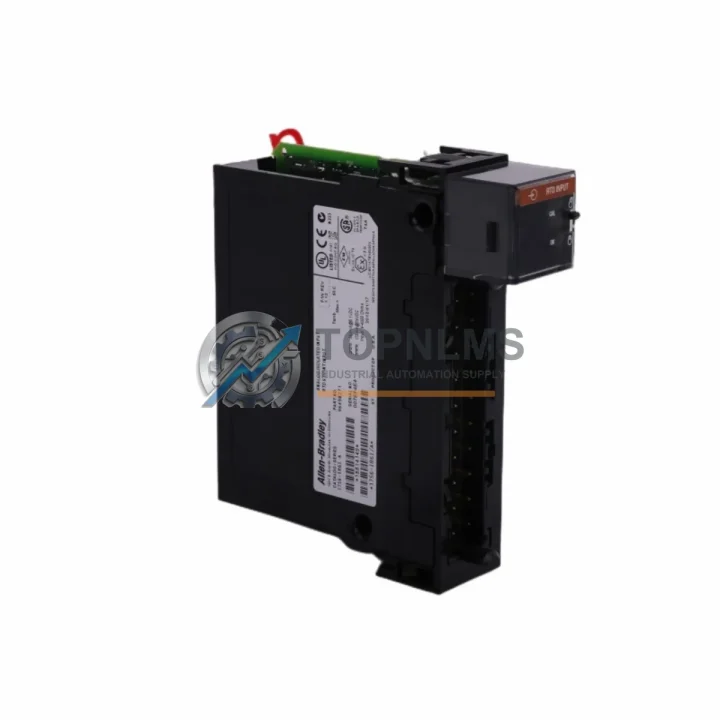

Allen-Bradley 1756-IR6I Original Industrial Spare ControlLogix Compatible

Product Overview

Allen-Bradley 1756-IR6I Original Industrial Spare ControlLogix Compatible: Ensuring System Stability in Critical Automation Environments

The Allen-Bradley 1756-IR6I is an Isolated RTD (Resistance Temperature Detector) Input Module designed for the ControlLogix 1756 platform — one of the most widely deployed programmable automation controller (PAC) architectures in process manufacturing, oil & gas, power generation, water treatment, and heavy industry worldwide. When a temperature measurement channel fails or drifts out of calibration, the consequences extend far beyond a single loop: cascading alarms, process shutdowns, and unplanned downtime can cost facilities tens of thousands of dollars per hour. Stocking a verified original 1756-IR6I spare is one of the most cost-effective insurance policies a maintenance team can hold.

This module provides six isolated RTD input channels, supporting Pt100, Pt1000, Ni120, and other standard RTD sensor types across a wide temperature measurement range. The channel-to-channel isolation architecture is critical in industrial environments where ground loops, electrical noise from variable frequency drives (VFDs), and long cable runs can introduce measurement errors. Each channel operates independently, meaning a fault on one sensor circuit does not propagate to adjacent channels — a key reliability advantage during partial-failure scenarios in continuous process plants.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that when a 1756-IR6I is flagged for replacement, the surrounding system deserves a thorough inspection. RTD input faults rarely occur in isolation — they are often symptomatic of broader issues in the control cabinet: aging backplane connectors, degraded power distribution, or accumulated thermal stress on adjacent modules.

During a scheduled shutdown or corrective maintenance event involving the 1756-IR6I, the following components in the same ControlLogix chassis and electrical loop should be inspected and, where appropriate, replaced proactively:

Power Supply Module (1756-PA75 / 1756-PB75): The ControlLogix power supply is the foundation of chassis stability. A power supply operating near end-of-life can introduce voltage ripple that degrades analog input accuracy across all modules, including RTD channels. If the 1756-IR6I is showing intermittent faults, verify the power supply output under load before condemning the input module itself.

ControlLogix Controller (1756-L71 / 1756-L73): Confirm that the resident controller firmware is current and that the I/O configuration tree correctly reflects the 1756-IR6I channel configuration. Mismatched firmware between the controller and module can cause unexpected channel inhibit states that mimic hardware failure.

Analog Output Module (1756-OF8): In closed-loop temperature control applications, the RTD input module works in tandem with an analog output module driving a control valve or heater. Inspect the 1756-OF8 or equivalent analog output module for output drift or channel faults that could indicate shared power rail degradation.

Digital I/O Modules (1756-IB16 / 1756-OB16E): While digital modules are less sensitive to power quality than analog modules, their status indicators provide a quick health check of the overall chassis backplane. Modules showing unexpected fault LEDs during an RTD replacement event warrant further investigation.

ControlNet or EtherNet/IP Communication Module (1756-CN2 / 1756-EN2T): If the ControlLogix system communicates over a plant-wide network, verify that the communication module is operating without packet loss or connection timeouts. Network instability can cause the controller to lose visibility of the 1756-IR6I, generating false fault conditions that are misdiagnosed as module hardware failure.

RTD Sensor Wiring and Terminal Blocks: Three-wire and four-wire RTD connections are sensitive to wiring resistance imbalance. Inspect terminal blocks, cable shields, and sensor lead connections for corrosion, loose terminations, or insulation breakdown — particularly in high-humidity or chemically aggressive environments. Replacing aged terminal blocks alongside the 1756-IR6I eliminates a common source of recurring measurement drift.

Chassis Backplane and Slot Connectors: Hot-swap capability is a key ControlLogix feature, but repeated module insertions over years of operation can wear backplane connector pins. During a planned maintenance window, inspect the chassis slot for bent or oxidized pins before installing the replacement 1756-IR6I.

Signal Isolators and Surge Protection Devices: In field installations where RTD sensors are located far from the control room, inline signal isolators protect the 1756-IR6I input channels from transient overvoltages. If the module has failed due to electrical overstress, evaluate whether surge protection devices on the sensor cables need replacement as well.

A comprehensive maintenance pass that addresses the 1756-IR6I alongside these related components transforms a reactive repair into a proactive reliability improvement — reducing the probability of a repeat failure event within the next maintenance cycle.

Strategic Replacement Solutions

The 1756-IR6I has been a production staple in ControlLogix systems deployed since the late 1990s. Many facilities are operating systems that are 15–25 years old, where the original module population is approaching or has exceeded its rated service life. Rather than migrating to a new control platform — a capital-intensive project with significant engineering risk — stocking verified original 1756-IR6I spares allows maintenance teams to extend the operational life of existing systems by years or decades.

Original modules sourced through authorized channels maintain full compatibility with existing Studio 5000 / RSLogix 5000 project files. There is no need to modify the I/O configuration, update add-on instructions, or re-commission field devices. The replacement module is recognized by the controller immediately upon insertion, and normal operation resumes within seconds — minimizing mean time to repair (MTTR) and protecting production throughput.

For facilities managing multiple ControlLogix systems across different production lines or plant areas, a centralized spare parts inventory strategy is strongly recommended. Holding one or two 1756-IR6I units per system — alongside critical power supply and communication module spares — provides a buffer against supply chain disruptions and long lead times that have become increasingly common in the industrial components market.

All units supplied by TOPNLMS are sourced as original Allen-Bradley / Rockwell Automation components, inspected upon receipt, and functionally tested prior to shipment. Each module is shipped with appropriate anti-static packaging and documentation. A 12-month warranty is provided from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Support FAQ

Q1: Is this a genuine original Allen-Bradley 1756-IR6I, or a compatible aftermarket replacement?
This is an original Allen-Bradley (Rockwell Automation) 1756-IR6I module. We do not supply counterfeit, cloned, or third-party compatible substitutes. Each unit is inspected and tested before shipment to verify authenticity and functional integrity.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers functional failures and manufacturing defects under normal operating conditions. It does not cover damage resulting from incorrect installation, electrical overstress, or physical mishandling. To initiate a warranty claim, contact us at [email protected] with your order number and a description of the fault. We will arrange return shipping and provide a replacement or refund upon verification.

Q3: How do I verify compatibility with my existing ControlLogix system before installation?
The 1756-IR6I is compatible with all ControlLogix 1756 chassis and all 1756-series controllers (L6x, L7x, L8x). Confirm that your Studio 5000 or RSLogix 5000 project file includes a 1756-IR6I module definition in the I/O tree. No firmware update or configuration change is required for a like-for-like replacement. If you are unsure, share your controller firmware version and project details with our technical team before ordering.

Q4: What is your typical lead time, and do you offer expedited shipping for emergency maintenance situations?
In-stock units are typically dispatched within 1–2 business days. Expedited shipping options are available for emergency maintenance situations — contact us directly at [email protected] or +86 18359293191 to discuss priority fulfillment. We ship globally and can provide DHL, FedEx, or UPS express services depending on destination.
