Allen-Bradley 1756-IG16 Original Industrial Spare ControlLogix

Product Overview

Allen-Bradley 1756-IG16 Original Industrial Spare ControlLogix: System Stability Through Proven Spare Parts Management

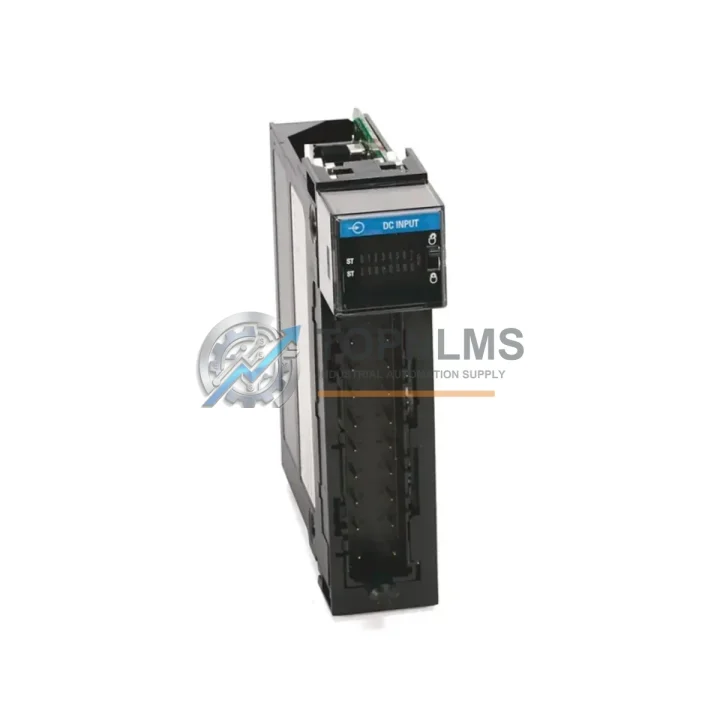

The Allen-Bradley 1756-IG16 is a 16-point isolated DC input module designed for the ControlLogix 1756 platform — one of the most widely deployed programmable automation controller (PAC) architectures in global discrete and process manufacturing. In high-availability production environments, the 1756-IG16 serves as a critical field interface between field-level sensors, proximity switches, and pushbutton stations and the ControlLogix backplane. Its galvanic isolation architecture ensures that ground loops, transient surges, and common-mode noise from field wiring cannot propagate into the controller backplane, protecting system integrity and reducing nuisance faults.

Maintaining a verified original spare of the 1756-IG16 in your on-site or regional warehouse is a foundational element of any serious industrial maintenance strategy. Unplanned downtime caused by a failed input module can halt an entire production line within seconds. With a pre-tested, shelf-ready 1756-IG16 available, maintenance teams can execute a hot-swap replacement in under 15 minutes — restoring full I/O functionality without waiting for emergency procurement cycles that can stretch from days to weeks.

At TOPNLMS, every 1756-IG16 unit is sourced from authorized supply channels, inspected against factory specifications, and shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Critical Technical Specs

Preventive Maintenance Strategy

A disciplined preventive maintenance (PM) program for ControlLogix-based control systems extends well beyond replacing a single failed module. When scheduling a planned shutdown or conducting a control cabinet inspection that involves the 1756-IG16, experienced maintenance engineers treat the event as an opportunity to audit the health of the entire I/O subsystem and associated field wiring infrastructure.

Begin with a visual and thermal inspection of the 1756 chassis itself. Chassis backplane connectors accumulate oxidation and micro-arcing damage over years of thermal cycling. If the 1756-IG16 is being replaced due to intermittent input faults rather than a hard failure, the root cause may lie in the chassis backplane or the chassis power supply — commonly the 1756-PA72 or 1756-PB72 AC/DC power supply modules — rather than the input module itself. Always verify backplane voltage rails before condemning an I/O module.

Field wiring connected to the 1756-IG16 should be inspected at the terminal block level. Loose or corroded terminations on 1756-TBCH or 1756-TBS6H removable terminal blocks are a leading cause of intermittent input signal faults that are frequently misdiagnosed as module failures. Torque all terminal screws to specification and apply dielectric grease in high-humidity environments.

For systems where the 1756-IG16 interfaces with high-density sensor arrays, consider auditing the associated 1756-OB16I or 1756-OB16E isolated output modules in the same control loop. Input and output modules in the same functional circuit often experience correlated wear patterns, particularly in high-cycle applications such as packaging lines, press controls, and conveyor systems.

Communication health is equally important. If your ControlLogix system uses 1756-EN2T or 1756-EN2TR EtherNet/IP communication modules for remote I/O or controller-to-controller messaging, verify that firmware versions are current and that network diagnostics show no excessive packet retries or connection timeouts. A degraded communication module can mask legitimate I/O faults and complicate troubleshooting.

For systems with analog measurement requirements adjacent to the discrete I/O rack, inspect 1756-IF16 analog input modules and verify calibration records. Analog modules in the same chassis as the 1756-IG16 share the backplane power budget; a failing analog module drawing excess current can cause marginal behavior in neighboring digital I/O modules.

Finally, review the condition of the 1756-L7x or 1756-L8x controller module itself, including the energy storage module (ESM) or capacitor pack. Controllers with degraded energy storage may fail to complete a controlled shutdown during power interruptions, potentially corrupting I/O configuration data and causing unexpected module faults on restart. Pairing a 1756-IG16 replacement with an ESM inspection is a best practice for any ControlLogix PM event.

Strategic Replacement Solutions

The 1756-IG16 has been in production across multiple hardware series (Series A, B, C) spanning more than two decades of ControlLogix platform evolution. Many facilities operating legacy Series A or B units are now encountering end-of-life hardware that is no longer supported under Rockwell Automation’s standard product lifecycle policy. TOPNLMS maintains inventory of both current-series and legacy-series 1756-IG16 units to support facilities that cannot immediately migrate to newer controller architectures.

For facilities managing a phased migration from older SLC 500 or PLC-5 platforms to ControlLogix, the 1756-IG16 is frequently specified as the target replacement for legacy isolated input modules such as the 1746-IG16 (SLC 500) and 1771-IQ16I (PLC-5). The migration preserves the isolated input architecture while gaining the benefits of the ControlLogix backplane — higher bandwidth, producer/consumer communication, and integrated diagnostics.

When replacing a 1756-IG16 in a running system, always export the module configuration from Studio 5000 Logix Designer before removal. The I/O configuration — including input filter times, RPI settings, and connection parameters — must be verified against the replacement module’s series and firmware revision to ensure seamless re-commissioning. TOPNLMS pre-tests all units against standard ControlLogix configuration profiles prior to shipment, reducing on-site commissioning time.

For facilities with redundant ControlLogix architectures using 1756-RM2 redundancy modules, ensure that both primary and secondary chassis maintain synchronized 1756-IG16 module populations. Mismatched module series between primary and secondary chassis is a known cause of redundancy switchover failures that can result in uncontrolled process shutdowns.

Support FAQ

Q1: What is the expected service life of the 1756-IG16, and when should I plan for proactive replacement?
The 1756-IG16 is rated for industrial continuous-duty operation. In practice, units in high-vibration or high-temperature environments may exhibit degraded performance after 10–15 years of service. TOPNLMS recommends proactive replacement planning when units exceed 10 years in service or when diagnostic counters in Studio 5000 show increasing input fault rates. Maintaining one spare per chassis is a widely adopted industry standard for critical production lines.

Q2: How do I verify compatibility between a replacement 1756-IG16 and my existing ControlLogix chassis and controller firmware?
The 1756-IG16 is compatible with all standard ControlLogix 1756-series chassis and all ControlLogix controller firmware revisions that support the ControlLogix I/O platform. Series differences (A, B, C) do not affect functional compatibility within the same chassis. TOPNLMS provides the module series and firmware revision with each shipment so your engineering team can verify compatibility before installation.

Q3: What pre-shipment testing does TOPNLMS perform on the 1756-IG16?
Each unit undergoes functional verification including backplane communication handshake testing, point-by-point input channel continuity verification, and isolation resistance measurement. Units that do not meet factory-equivalent performance thresholds are not shipped. A test report summary is available upon request for quality-critical procurement processes.

Q4: What does the 12-month warranty cover, and what is the RMA process?
The TOPNLMS 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as defined by Rockwell Automation’s published environmental and electrical specifications. Physical damage, incorrect installation, or operation outside rated parameters is excluded. To initiate an RMA, contact [email protected] with your order number, a description of the fault symptom, and any available diagnostic data from Studio 5000. TOPNLMS targets a 3-business-day RMA response time.
