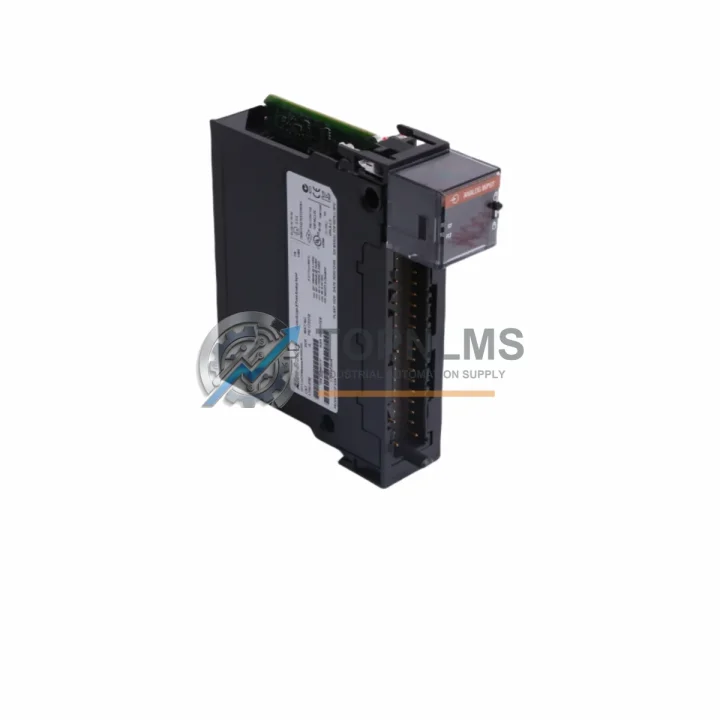

Allen-Bradley 1756-IF8I Ruggedized Analog Input Module

Product Overview

Allen-Bradley 1756-IF8I Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1756-IF8I is an 8-channel isolated analog input module engineered for the ControlLogix 1756 platform — one of the most trusted programmable automation controller (PAC) architectures deployed in critical industrial infrastructure worldwide. Designed to deliver precise, noise-immune signal acquisition in environments characterized by extreme temperature swings, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI), the 1756-IF8I represents the gold standard for analog signal integrity in demanding process and discrete manufacturing applications.

Each of the eight channels is fully galvanically isolated, providing channel-to-channel and channel-to-backplane isolation that protects both the module and the broader ControlLogix chassis from ground loops, transient surges, and common-mode voltage differentials — conditions routinely encountered in oil and gas wellhead panels, mining motor control centers, and heavy metallurgical furnace control cabinets. This isolation architecture ensures that a fault or noise event on one field instrument loop cannot propagate to adjacent channels or upstream PLC logic, a critical requirement in safety-instrumented systems (SIS) and continuous process lines where unplanned shutdowns carry severe operational and financial consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-IF8I does not operate in isolation — it is a precision component within a tightly integrated ControlLogix control architecture. In a typical heavy-industry control cabinet, the module slots into a 1756-A10 or 1756-A17 chassis alongside a 1756-L73 or 1756-L85E ControlLogix controller, which executes the ladder logic and function block programs that govern process control decisions. Redundant power is supplied by a 1756-PA75R redundant power supply module, ensuring that even during a primary power event, the analog acquisition chain remains uninterrupted.

On the output side, the 1756-IF8I works in concert with analog output modules such as the 1756-OF8 to form closed-loop control loops — for example, modulating a control valve based on a 4–20 mA pressure transmitter signal acquired through the 1756-IF8I. For digital field devices, the 1756-IB32 digital input module and 1756-OB32 digital output module handle discrete on/off signals from limit switches, solenoids, and motor starters within the same chassis.

In applications requiring functional safety compliance, the 1756-IF8I is frequently deployed alongside the 1756-L61S GuardLogix safety controller and 1791DS-IB8XOBV4 safety I/O modules, forming a safety-rated control loop that meets IEC 61511 requirements for process safety and IEC 62061 for machinery safety. Communication across the plant floor is handled via 1756-EN2T EtherNet/IP communication modules or 1756-CN2 ControlNet modules, enabling seamless integration with SCADA systems, historian servers, and distributed control system (DCS) supervisory layers.

For installations in hazardous classified areas (Zone 1/Zone 2 or Class I Division 2), the 1756-IF8I is paired with certified intrinsic safety barriers or galvanic isolators mounted in the field junction box, ensuring that the energy delivered to field instruments remains below ignition thresholds. Terminal modules and marshalling panels using 1492-AIFM8-F-5 analog interface modules further simplify field wiring and reduce commissioning time in large-scale process plants.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1756-IF8I monitors pressure, temperature, and flow transmitters across wellhead manifolds, compressor stations, and pipeline metering skids. Its full channel isolation prevents ground potential differences — common in geographically dispersed pipeline installations — from corrupting measurement accuracy or triggering nuisance alarms in the control room.

In mining and mineral processing, the module withstands the severe vibration generated by crushers, ball mills, and conveyor drives. It acquires load cell signals, belt scale outputs, and slurry density measurements with 16-bit resolution, feeding real-time data to the ControlLogix controller for automated process optimization and overload protection.

In power generation and electrical utilities, the 1756-IF8I interfaces with current transformers and voltage transducers in generator protection panels and substation automation systems. Its EMI immunity is critical in environments saturated with high-frequency switching noise from variable frequency drives (VFDs) and high-voltage bus bars.

In water and wastewater treatment plants, the module acquires pH, dissolved oxygen, turbidity, and flow signals from field analyzers, enabling precise dosing control and regulatory compliance monitoring. Its humidity tolerance ensures reliable operation in wet pump rooms and outdoor field enclosures subject to condensation.

In metallurgy and steel production, the 1756-IF8I operates in the vicinity of electric arc furnaces and induction heating systems where electromagnetic fields are extreme. The galvanic isolation architecture prevents induced voltages from reaching the ControlLogix backplane, protecting the entire control system from damage and ensuring continuous production line availability.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1756-IF8I?
Every 1756-IF8I shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification testing including channel-by-channel signal acquisition checks, isolation integrity verification, and backplane communication validation. A test report is available upon request.

Q2: Is the 1756-IF8I compatible with all ControlLogix 1756 chassis and firmware versions?
Yes. The 1756-IF8I is compatible with all standard ControlLogix 1756-series chassis (1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17) and is supported across all major Studio 5000 Logix Designer firmware revisions. If your application requires a specific firmware-compatible revision of the module, our technical team can advise on revision-level compatibility before shipment.

Q3: Can the 1756-IF8I be used as a direct replacement for a failed module in a live production system?
Yes. The 1756-IF8I supports hot-swap replacement within a powered ControlLogix chassis, minimizing downtime during field replacement. The module’s configuration is stored in the controller project file and is automatically downloaded to the replacement module upon insertion, provided the controller is in Run mode with the appropriate I/O configuration. TOPNLMS maintains ready stock to support urgent spare-part requirements with fast dispatch.

Q4: How does TOPNLMS ensure long-term supply availability for the 1756-IF8I?
TOPNLMS maintains a dedicated inventory of Allen-Bradley ControlLogix modules, including the 1756-IF8I, to support both planned maintenance programs and emergency replacement needs. We source exclusively from verified supply chains and perform incoming inspection on all units. For customers with large installed bases, we offer reserved stock arrangements and scheduled delivery programs to ensure continuity of supply throughout the product lifecycle.
