Allen-Bradley 1756-IF8H Replacement for ControlLogix: Smooth Migration & Legacy System Upgrade

Upgrading or replacing the Allen-Bradley 1756-IF8H ControlLogix 8-Channel High-Speed Analog Input Module does not have to mean extended downtime or costly re-engineering. Whether your existing 1756-IF8H has reached end-of-life, is showing intermittent faults, or is simply no longer available through standard distribution channels, TOPNLMS supplies verified replacement and upgrade solutions that preserve your existing wiring infrastructure, control logic, and system architecture.

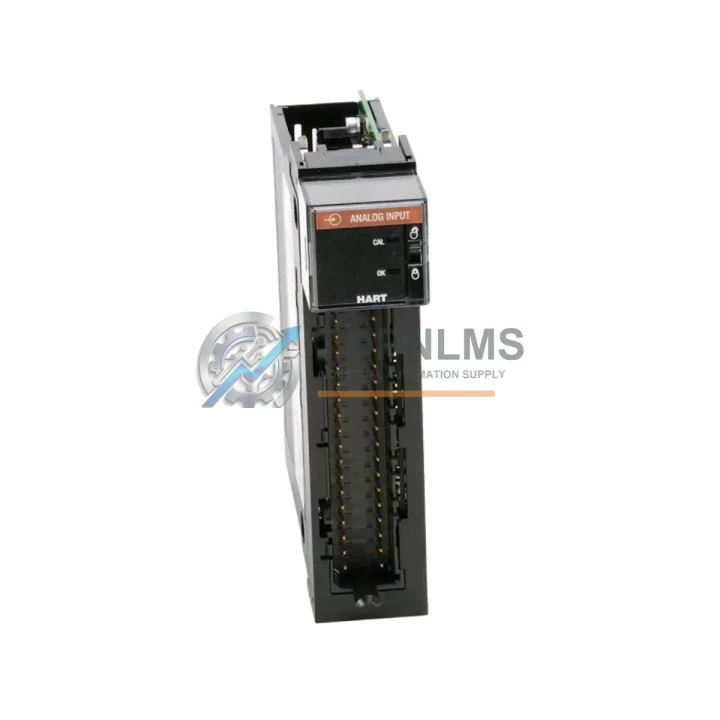

The 1756-IF8H is a high-density analog input module designed for the Allen-Bradley ControlLogix 1756 chassis platform. It provides 8 differential analog input channels with high-speed sampling, making it a critical component in process control, motion coordination, and data acquisition applications across industries including oil & gas, water treatment, automotive manufacturing, and discrete assembly lines. When this module fails or becomes obsolete, the impact on production is immediate — which is why a reliable, pre-tested replacement source matters.

Our replacement 1756-IF8H units are sourced from verified supply chains, inspected against Rockwell Automation’s published specifications, and shipped with full documentation. Each unit is bench-tested for channel-to-channel isolation, input range accuracy (±10 V, 0–20 mA, 4–20 mA), and backplane communication integrity before dispatch. Units are compatible with the standard 1756 ControlLogix chassis, including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 rack configurations, requiring no chassis modification or additional mounting hardware.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1756-IF8H migration rarely involves a single module swap. In most ControlLogix retrofit projects, the analog input replacement is coordinated alongside adjacent system components to ensure signal integrity and communication continuity. During the upgrade process, engineers commonly address the 1756-EN2T EtherNet/IP communication module to verify that the updated module tags are correctly mapped across the network. Where the existing chassis is aging, the 1756-PA75 or 1756-PB75 power supply module is often inspected or replaced simultaneously to ensure stable backplane voltage under the revised I/O load.

Field wiring connected to the 1756-IF8H typically terminates through a 1756-TBCH or 1756-TBS6H removable terminal block, which can be disconnected and reattached to the replacement module without disturbing individual wire terminations — a significant advantage in time-critical shutdowns. In systems where signal conditioning is required upstream of the analog input, signal isolators or loop-powered transmitter barriers are reviewed to confirm that the 4–20 mA loop impedance remains within the module’s specified input resistance range.

For facilities running mixed I/O architectures, the 1756-IF8H replacement is often part of a broader ControlLogix I/O refresh that includes 1756-OB16E digital output modules and 1756-IB16 digital input modules, allowing the maintenance team to standardize the chassis population and reduce the number of unique spare part SKUs held in inventory. Where the control system interfaces with a PanelView Plus HMI or a SCADA historian, tag name consistency between the old and new module configuration is verified in Studio 5000 before the replacement unit is commissioned.

In DCS migration scenarios where a legacy system is being partially replaced by a ControlLogix platform, the 1756-IF8H is frequently deployed alongside a 1756-DNB DeviceNet Bridge module or a 1756-DHRIO Data Highway Plus / Remote I/O Bridge to maintain communication with legacy field devices during the transition period, avoiding a full cutover and allowing phased commissioning.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring?
Yes. The 1756-IF8H uses a removable terminal block (RTB). Disconnect the RTB from the faulty module and attach it directly to the replacement unit. No re-termination of field cables is required.

Q: Do I need to modify my Studio 5000 program?
No. The replacement module uses the same module profile and I/O tag structure as the original 1756-IF8H. After insertion, the controller will recognize the module and resume normal operation without program edits, provided the module configuration (input range, RPI, inhibit settings) is preserved in the project file.

Q: Is EtherNet/IP communication affected?
No. The 1756-IF8H communicates over the ControlLogix backplane, not directly over EtherNet/IP. The network topology managed by your 1756-EN2T or 1756-EN3TR communication module is unaffected by the analog input module replacement.

Q: What if my chassis slot assignment has changed?
If the replacement module is installed in a different chassis slot, update the module’s slot number in the Studio 5000 I/O tree and download the revised configuration. Tag names and logic remain unchanged.

Q: How do I verify the replacement module before going live?
Use RSLogix 5000 or Studio 5000 to go online with the controller, navigate to the module’s diagnostic page, and confirm that all 8 channels report valid engineering unit values within the expected range. Compare against your process historian or DCS trend data to validate signal accuracy before releasing the system to production.

Warranty Assurance

Every 1756-IF8H replacement unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each module undergoes a multi-point outgoing inspection that includes backplane connector integrity check, channel input range verification across all 8 channels, and firmware version confirmation. Units that do not meet specification thresholds are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched with priority freight to minimize production impact.

We ship globally from Xiamen, China, with export documentation, commercial invoice, and packing list provided for customs clearance. Lead time for in-stock units is typically 3–7 business days to major industrial regions. Expedited shipping options are available for urgent breakdown situations.

For procurement inquiries, technical compatibility questions, or bulk order pricing, contact our industrial automation team directly.
